- 22300 series spherical bearing
- Single row separated spherical rolling elements
- Oil hole and annular lubrication groove
- Nylaplate® seal on both sides
- Standard internal clearance
SB 22310 W33 SS

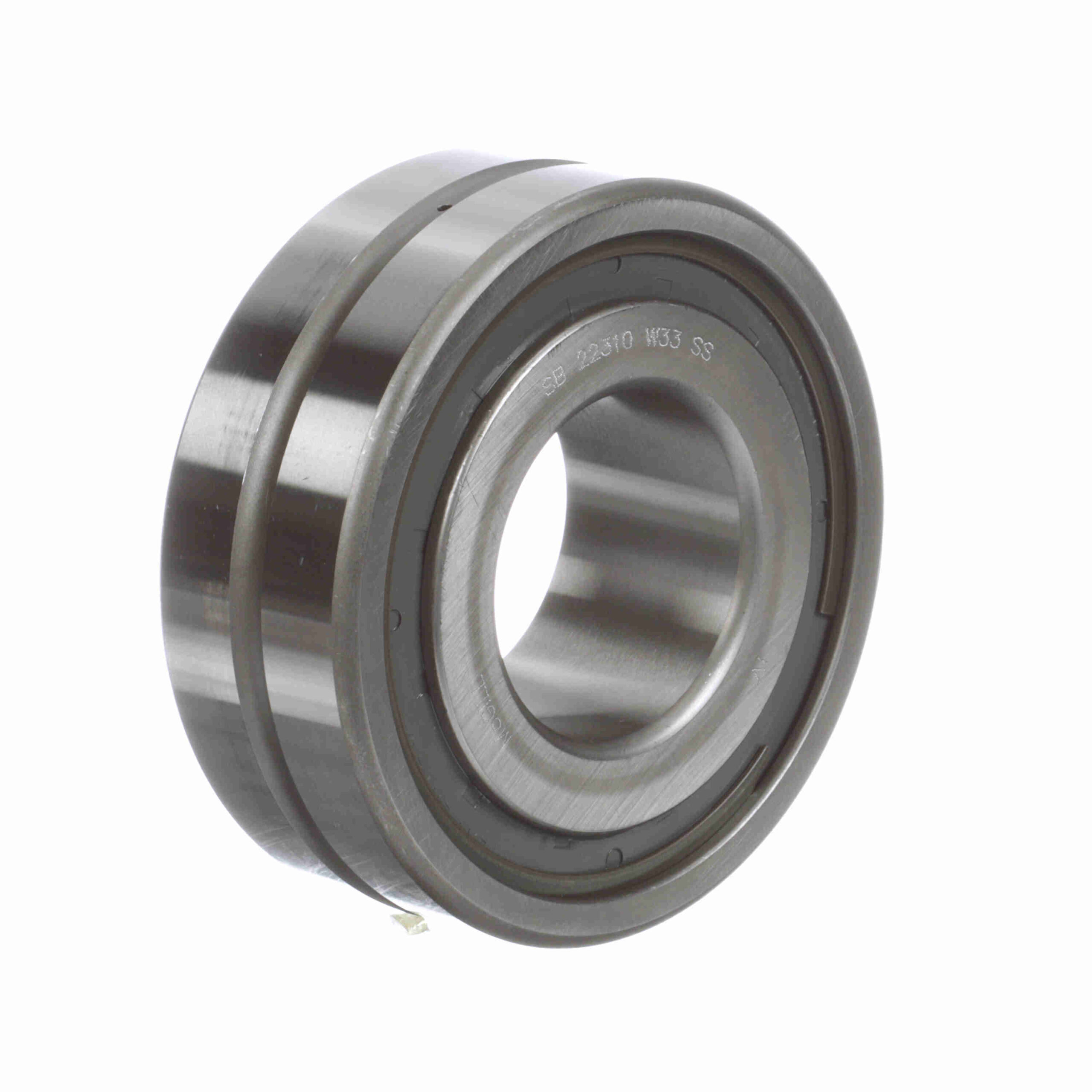

McGill SPHERE-ROL® Radial Spherical Roller Bearing – Straight Bore – Sealed – SB 22310 W33 SS
$416.01
Availability: 2 in stock
Availability: 2 in stock
| Series: | 22300 | Seal Type: | Single Seal |
|---|---|---|---|
| Cage Material: | Steel | Rolling Element: | Spherical Roller |
| Angular Misalignment: | 2° | Misalignment: | Yes |
| Material: | 52100 Bearing Steel | Radial Clearance: | C0 |
| Number of Rows: | 1 | Bore Type: | Straight |
| Sealed: | Sealed - Both Sides | Speed (Max) Grease (RPM): | 2, 100 rpm |
| Platform: | SPHERE-ROL® | Duplexing: | No |
| Full Complement/Caged: | Caged | Speed (Max) Oil (RPM): | 4, 200 rpm |
| Outer Ring Type: | Not Split | Lubrication Hole Type: | Lubrication Groove & Hole |
| Precision Rating: | P0, ISO 15-2008 | Finish/Coating: | Uncoated |
| Dynamic Load Rating (kN): | 167.6 kN | Mounting Method: | Shaft Mount |
| Operating Temperature Range (F): | -30 to 300 °F °F | Maximum Operating Temperature (F): | 300 °F |
| UPC: | 726166009847 | Weight: | 4.01 LB |
| Packaged Length: | 4.88 Inches | Packaged Width: | 2.13 Inches |
| Packaged Height: | 4.88 Inches | HTC: | 8482.30.0040 |
| Country of Origin: | United States of America |
