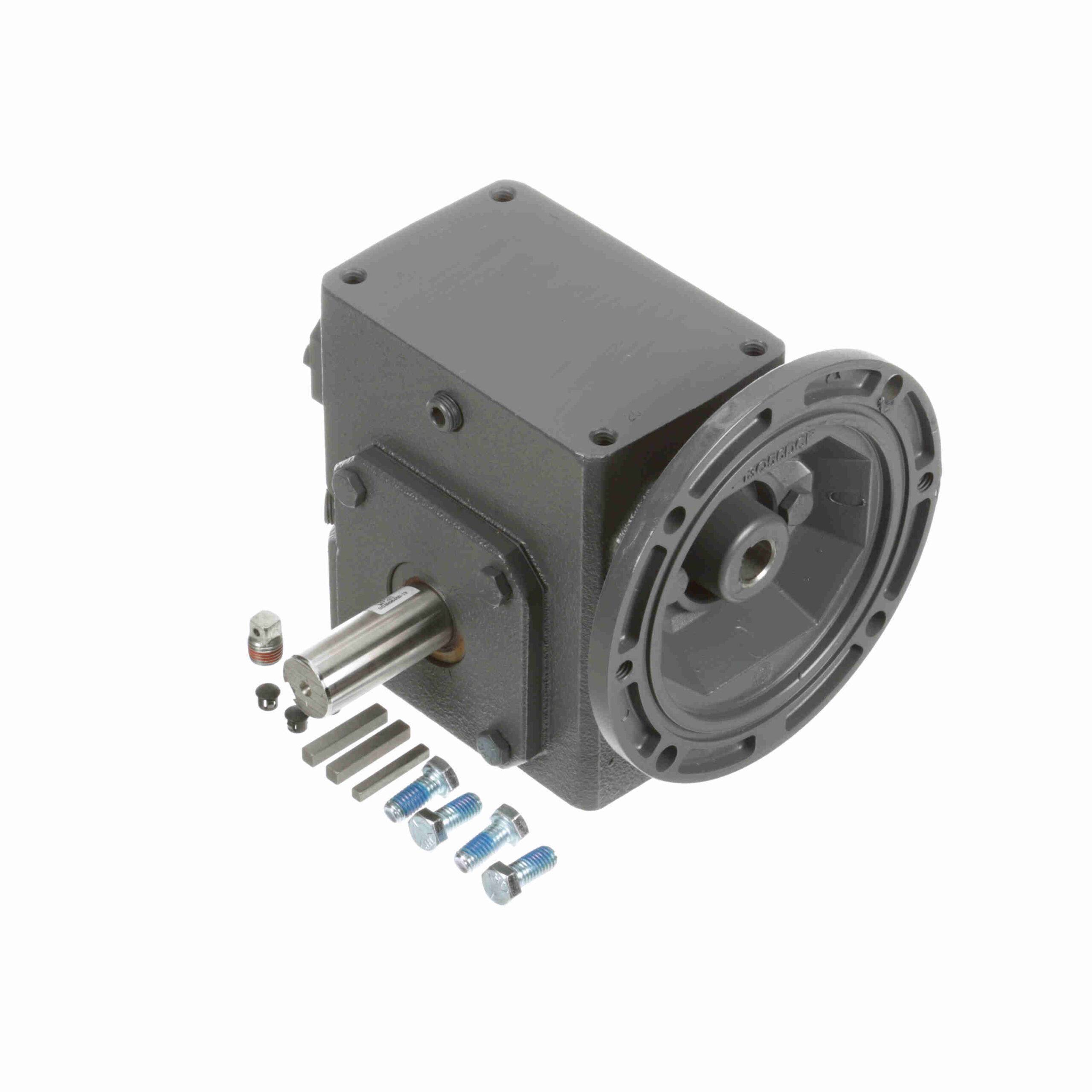

206Q56LR20

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Ratio:	20:1	Shaft Seal Material:	Nitrile
Input Keyway (C Face):	3/16 X 3/32	Reducer Style:	Standard
Input Speed:	1750	Motor Frame Size:	56C
Input Bore (C Face):	0.625	Efficiency:	80
Thrust Rating - output shaft:	1980	Assembly:	Q-LR
Center Distance (in):	2.06	Output Shaft Assembly Code:	D
Mounting Style:	No Base	Reducer:	Worm - Right Angle
Frame Size:	56C	Model Code:	206Q
Series Code:	Raider	Input Style:	C-Face Quill
Output Shaft Orientation:	LR	Input RPM:	1, 75
Output RPM:	87.5	Input HP @ 1750 RPM:	1.33
Input Diameter (in):	0.625 in	Gear Type:	Worm
Ratio Range:	20:01	Output Diameter (in):	1.000 in
No. of Gear Reductions:	Single	Service Factor:	1
Product Type:	Worm Speed Reducer	Output Key:	1/4 X 1.75
Output Shaft Direction:	Double	Overhung Load Rating (Output Shaft(lb)):	1, 078 lb
Housing Material:	Cast Iron	Output Shaft:	Solid Shaft
Output Torque Rating (in-lb):	964 in-lbs @1750 input RPM in/lbs	UPC:	6, 62288E+11
Weight:	27.19 LB	Packaged Length:	15.1 Inches
Packaged Width:	11.6 Inches	Packaged Height:	11.3 Inches
