- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
2-33

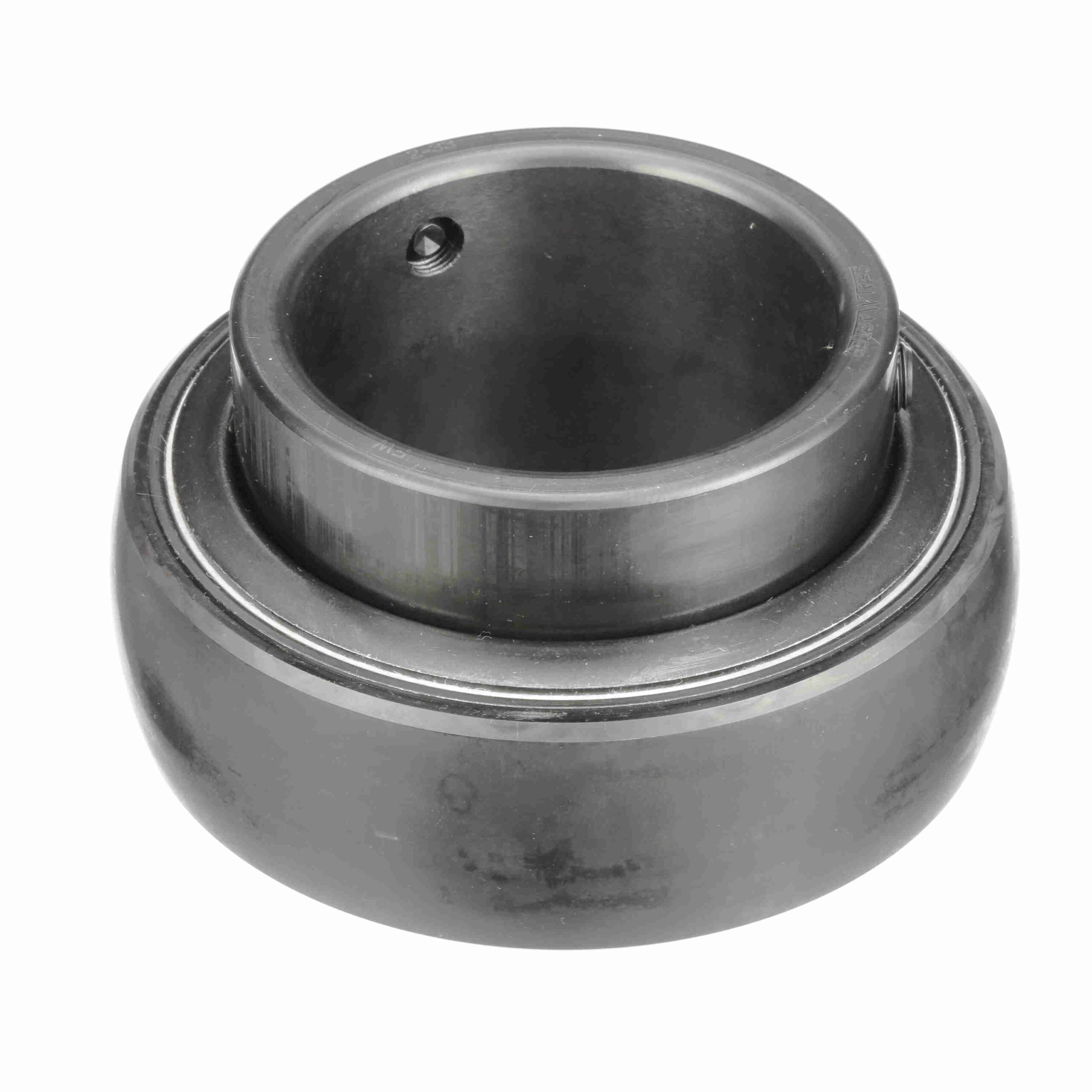

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – 2-33
$669.71
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Duty Series: | Standard | Bore Shape: | Straight |
| Retainer Type: | Land Riding Retainer | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Rolling Element: | Ball Bearing | Set Screw Thread: | 7/16-20 |
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Radius: | 0.12 | Housing Type: | Insert Only |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 17, 412 |
| Locking Type: | Setscrew | Expansion: | No |
| Speed (Max): | 2250 | Misalignment: | ±2.0° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Internal Clearance: | Standard |
| Platform: | Gold Line Ball Bearing | End Cap: | No |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Radial Static Load Capacity (lb): | 13, 174 |
| Precision Rating: | ABEC 1 | Cage Material: | Brass |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Spherical |
| UPC: | 662461000526 | Weight: | 7.37 LB |
| Packaged Length: | 5.75 Inches | Packaged Width: | 5.63 Inches |
| Packaged Height: | 3.63 Inches | HTC: | 8482.10.5056 |
| Country of Origin: | United States of America |
