- Largest selection in the Industry – Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6″ to 8.5″ covering up to 25 horsepower.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
1VP65X 1 1/4

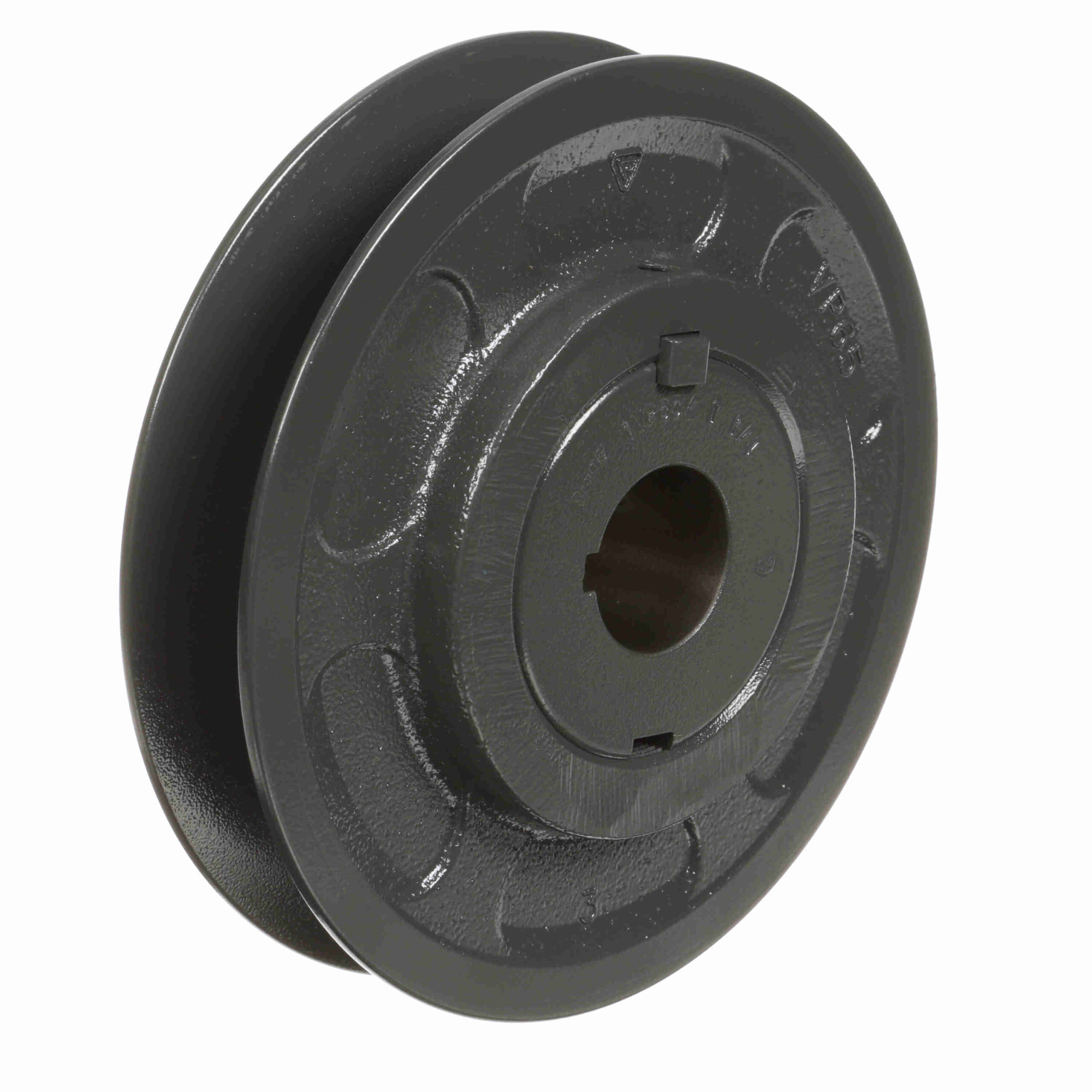

Browning 1 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave – 1VP65X 1 1/4
Out of stock
| Turns Open (A or 4L) (For Min PD): | 5 | Bore (in): | 1.25 in |
|---|---|---|---|
| Type of Bore: | Finished | Outside Diameter (in): | 6.5 in |
| Number of Grooves: | 1 | Product Type: | FHP Variable Pitch Sheaves |
| Belt Section: | 4L or A, 5L or B, 5V | UPC: | 662460611549 |
| Weight: | 7.83 LB | Packaged Length: | 6.80 Inches |
| Packaged Width: | 6.70 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
