- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
AK104X 1 1/4

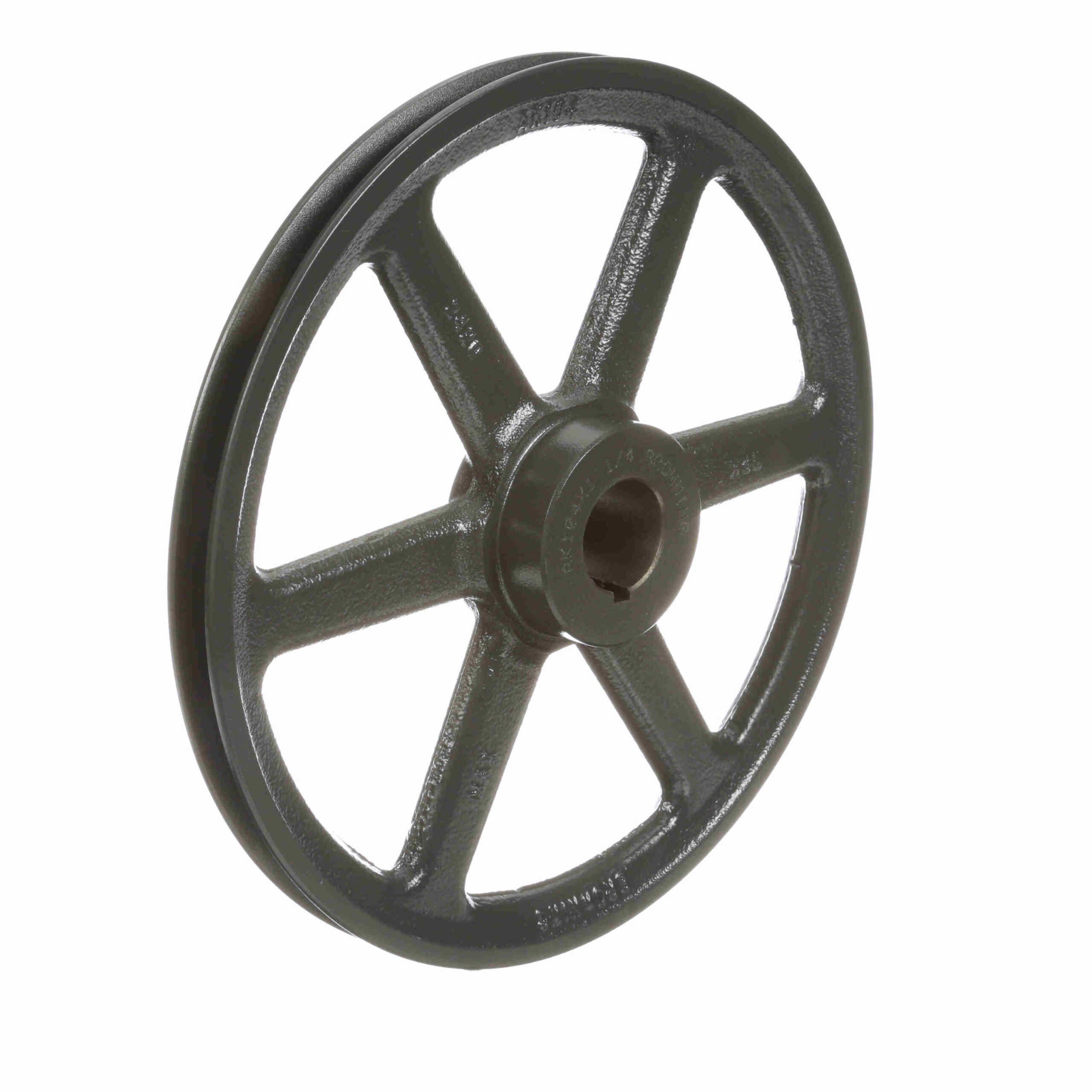

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK104X 1 1/4
$288.32
Out of stock
Out of stock
| Model Name: | AK_Sheave_Master3 | Material: | Cast Iron |
|---|---|---|---|
| Pitch Diameter (A): | 10.2 | Outside Diameter (in): | 10.25 in |
| Datum (3L): | 9.66 | Number of Grooves: | 1 |
| Bore (in): | 1.25 in | Product Type: | FHP - Finished Bore |
| Belt Section: | 3L, A | Bore Type: | Finished with Keyway and SS |
| Keyway Size: | .250 | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| Set Screw Tightening Torque (in-lb): | 165 | UPC: | 662289287222 |
| Weight: | 5.64 LB | Packaged Length: | 10.31 Inches |
| Packaged Width: | 10.31 Inches | Packaged Height: | 1.56 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
