- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
2BK47X 1 1/8

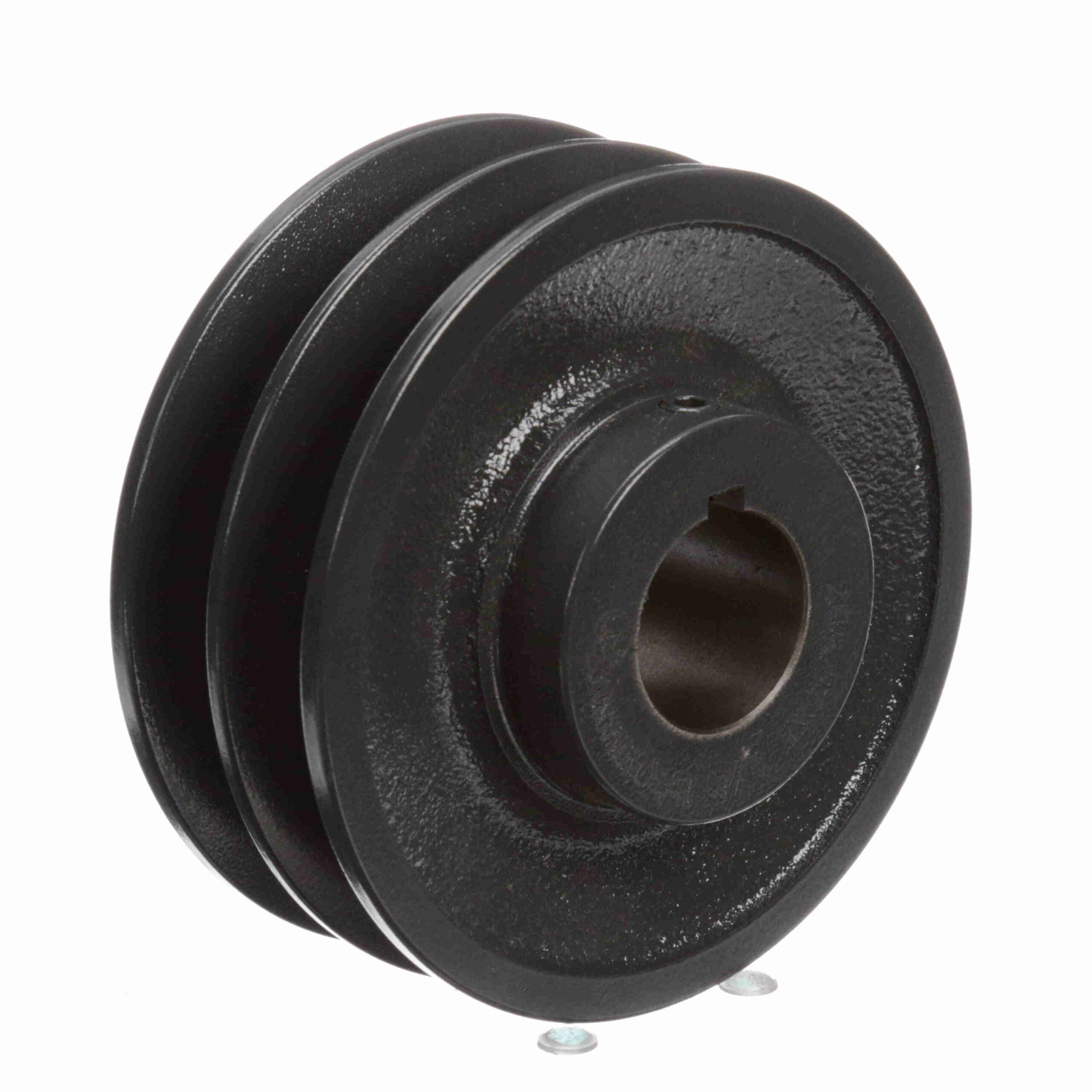

Browning 2 Groove Cast Iron FHP – Finished Bore Sheave – 2BK47X 1 1/8
$309.04
Out of stock
Out of stock
| Pitch Diameter (A): | 3.9 | Model Name: | 2BK_Sheave_Master2 |
|---|---|---|---|
| Outside Diameter (in): | 4.45 in | Number of Grooves: | 2 |
| Pitch Diameter (B): | 4.4 | Material: | Cast Iron |
| Bore (in): | 1.125 in | Product Type: | FHP - Finished Bore |
| Belt Section: | A, B | Bore Type: | Finished with Keyway and SS |
| Keyway Size: | .250 | Overall Width (in): | 2.21875 |
| Face Width (in): | 1.75 | Pulley Construction: | Webbed |
| Set Screw Thread: | 5/16-18UNC-3AX1/4 | Set Screw Tightening Torque (in-lb): | 90 |
| UPC: | 662289141166 | Weight: | 3.74 LB |
| Packaged Length: | 4.56 Inches | Packaged Width: | 4.56 Inches |
| Packaged Height: | 2.25 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
