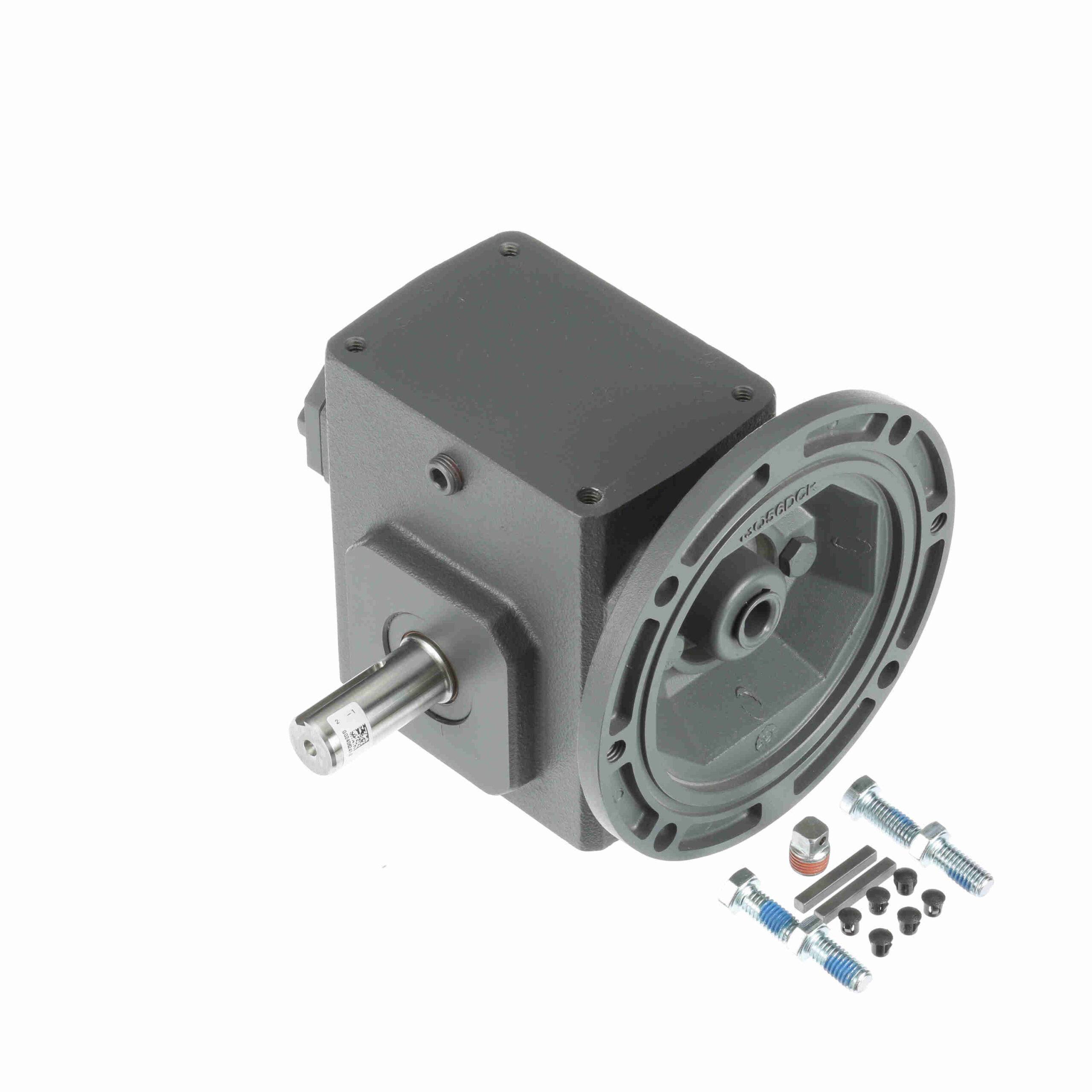

175Q56L40

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Reducer Style:	Standard	Motor Frame Size:	56C
Input Keyway (C Face):	3/16 X 3/32	Ratio:	40:1
Thrust Rating - output shaft:	1399	Input Speed:	1750
Efficiency:	80	Input Bore (C Face):	0.625
Shaft Seal Material:	Nitrile	Output Key:	3/16 X 1.38
Output Diameter (in):	0.875 in	Gear Type:	Worm
Series Code:	Raider	Input Diameter (in):	0.625 in
Product Type:	Worm Speed Reducer	Frame Size:	56C
Service Factor:	1	Model Code:	175Q
Center Distance (in):	1.75	Reducer:	Worm - Right Angle
Output Shaft Assembly Code:	L	Input Style:	C-Face Quill
Output RPM:	43.7	Mounting Style:	No Base
Input HP @ 1750 RPM:	0.52	Ratio Range:	40:01:00
Input RPM:	1, 75	Assembly:	Q-L
No. of Gear Reductions:	Single	Output Shaft Direction:	Left
Housing Material:	Cast Iron	Output Torque Rating (in-lb):	634 in-lbs @1750 input RPM in/lbs
Output Shaft:	Solid Shaft	Overhung Load Rating (Output Shaft(lb)):	740 lb
UPC:	6, 62289E+11	Weight:	21.44 LB
Packaged Length:	11.1 Inches	Packaged Width:	10.4 Inches
Packaged Height:	11.7 Inches
