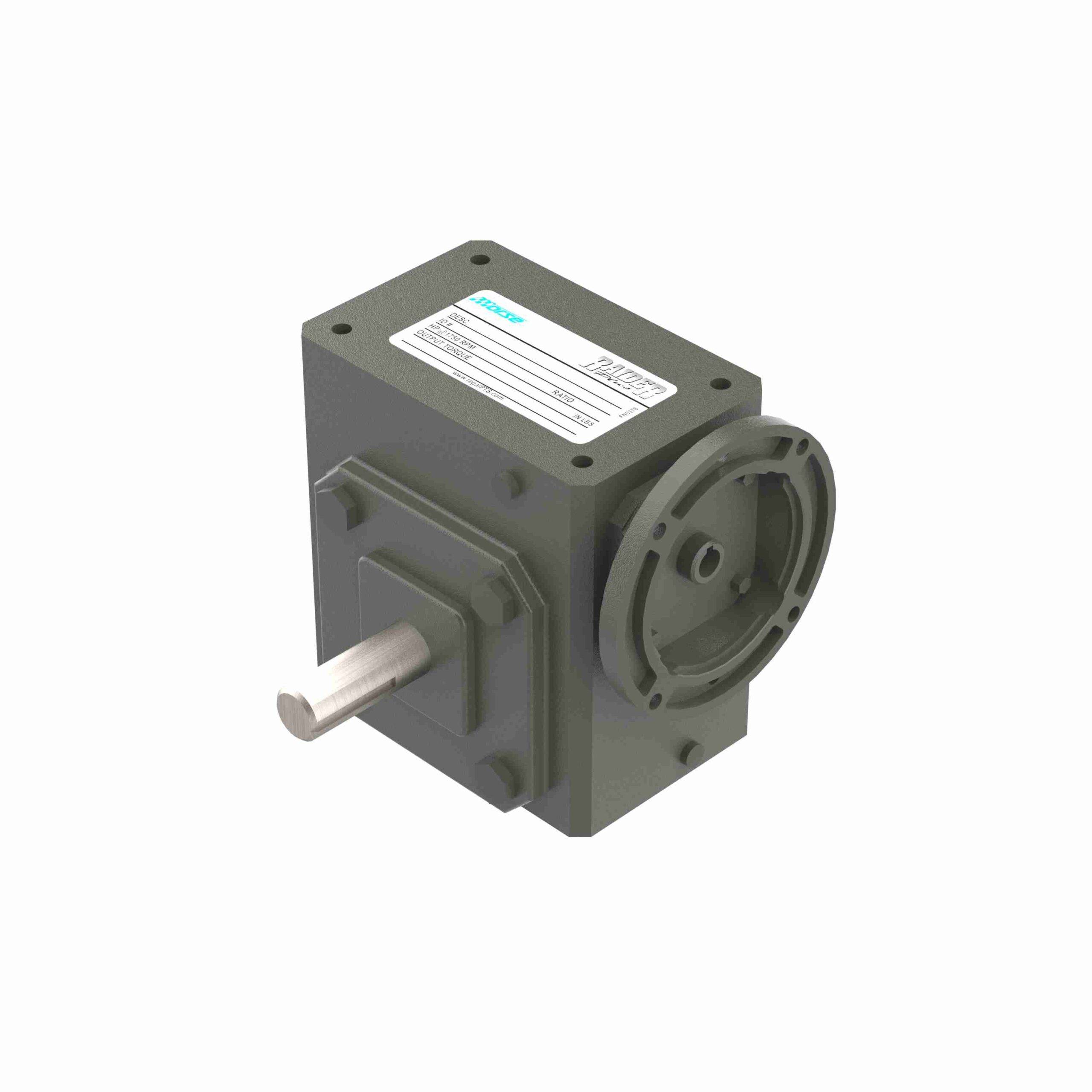

300Q56L60

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Input Speed:	1750	Input Bore (C Face):	0.625
Motor Frame Size:	56C	Reducer Style:	Standard
Shaft Seal Material:	Nitrile	Ratio:	60:1
Efficiency:	80	Thrust Rating - output shaft:	3410
Input Keyway (C Face):	3/16 X 3/32	Center Distance (in):	3
Ratio Range:	60:1	Input Style:	C-Face Quill
Service Factor:	1	Model Code:	300Q
Output Key:	1/4 X 2.25	Gear Type:	Worm
Frame Size:	56C	Product Type:	Worm Speed Reducer
Output Diameter (in):	1.250 in	Series Code:	Raider
Mounting Style:	No Base	Output Shaft Assembly Code:	L
Reducer:	Worm - Right Angle	Assembly:	Q-L
Input HP @ 1750 RPM:	1.36	Input RPM:	1, 75
Input Diameter (in):	0.625 in	Output RPM:	29.1
No. of Gear Reductions:	Single	Output Shaft Direction:	Left
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
Overhung Load Rating (Output Shaft(lb)):	987 lb	Output Torque Rating (in-lb):	2413 in-lbs @1750 input RPM in/lbs
UPC:	6, 62288E+11	Weight:	68.00 LB
Packaged Length:	19.38 Inches	Packaged Width:	15.11 Inches
Packaged Height:	15 Inches
