- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
175Q56R20

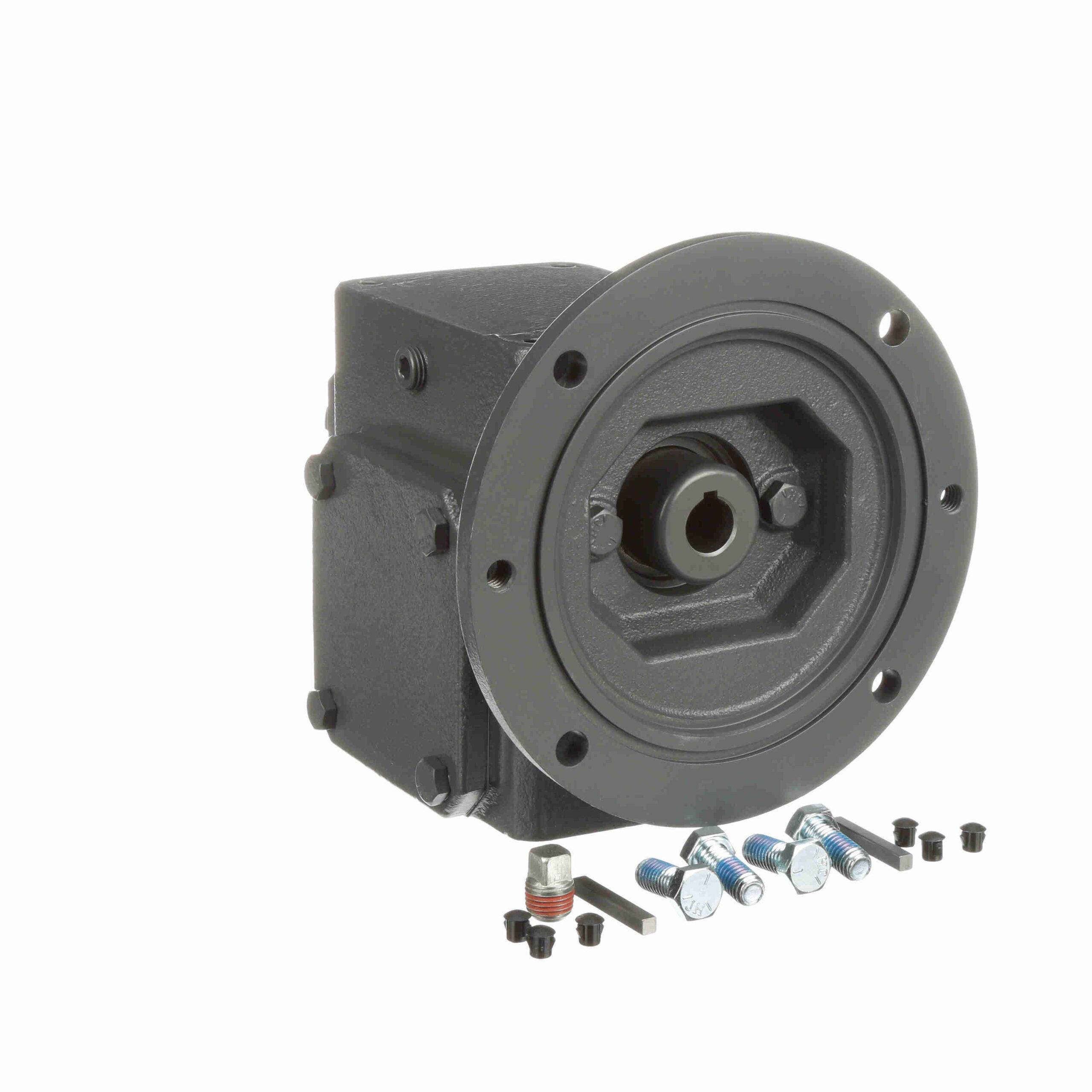

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 175Q56R20
$940.01
Out of stock
Out of stock
| Reducer Style: | Standard | Motor Frame Size: | 56C |
|---|---|---|---|
| Efficiency: | 80 | Input Bore (C Face): | 0.625 |
| Thrust Rating - output shaft: | 1358 | Input Speed: | 1750 |
| Shaft Seal Material: | Nitrile | Ratio: | 20:1 |
| Input Keyway (C Face): | 3/16 X 3/32 | Center Distance (in): | 1.75 |
| Ratio Range: | 20:1 | Input Style: | C-Face Quill |
| Assembly: | Q-R | Output RPM: | 87.5 |
| Gear Type: | Worm | Output Diameter (in): | 0.875 in |
| Reducer: | Worm - Right Angle | Model Code: | 175Q |
| Input RPM: | 1, 750 | Mounting Style: | No Base |
| Input HP @ 1750 RPM: | 0.9 | Output Key: | 3/16 X 1.38 |
| Output Shaft Assembly Code: | R | Service Factor: | 1 |
| Frame Size: | 56C | Series Code: | Raider |
| Input Diameter (in): | 0.625 in | No. of Gear Reductions: | Single |
| Product Type: | Worm Speed Reducer | Output Shaft Direction: | Right |
| Housing Material: | Cast Iron | Output Torque Rating (in-lb): | 630 in-lbs @1750 input RPM in/lbs |
| Overhung Load Rating (Output Shaft(lb)): | 740 lb | Output Shaft: | Solid Shaft |
| UPC: | 6, 62288E+11 | Weight: | 24.00 LB |
| Packaged Length: | 10.69 Inches | Packaged Width: | 9.06 Inches |
| Packaged Height: | 10.5 Inches |
