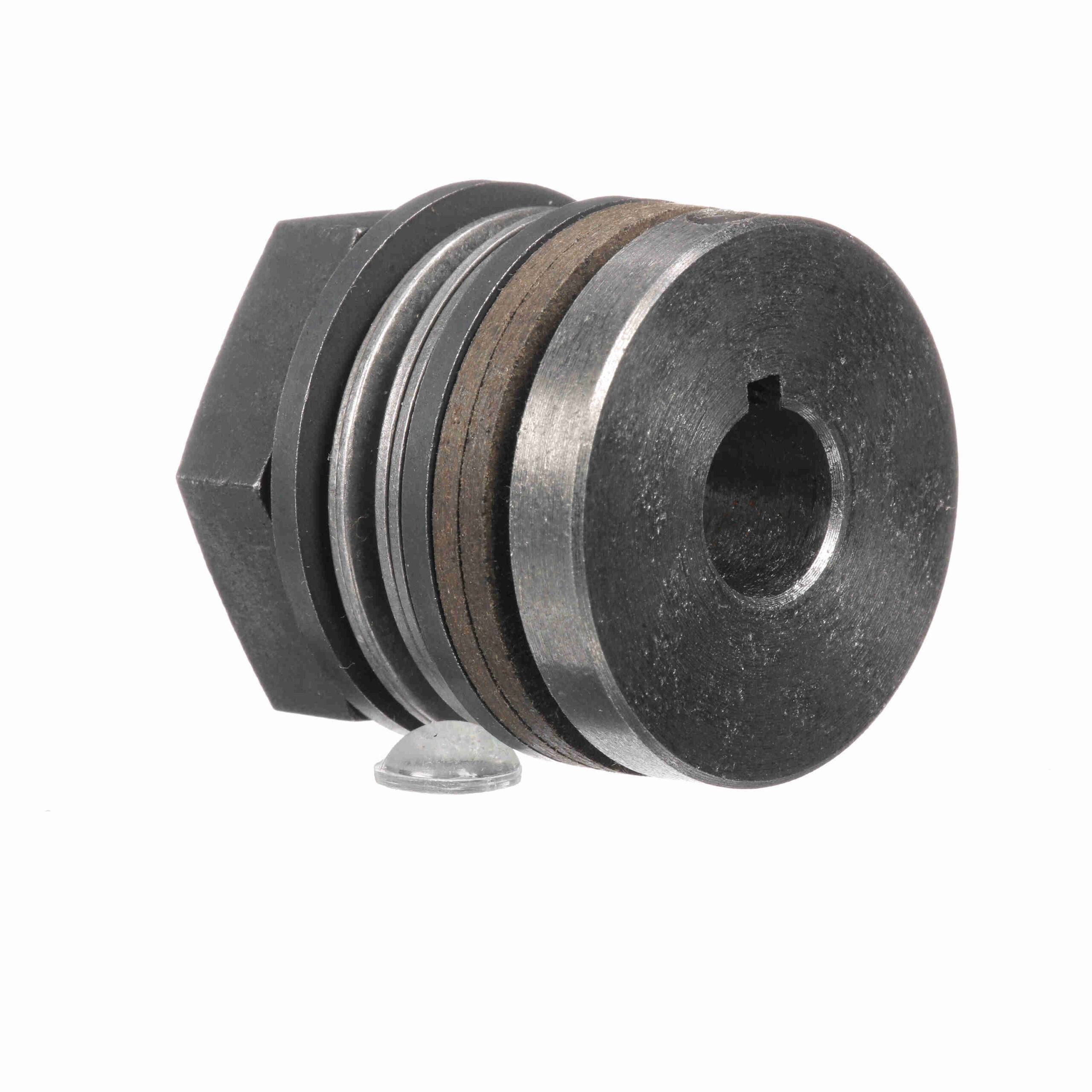

Morse Torque Limiter Model – 150 – 150A-4 TL 1/2 FB

SKU: 190387 Category: Mechanical Clutches

$482.69

Out of stock

Out of stock

Product Information
Specifications

Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
Morse torque limiter is a spring loaded device. The load on the friction pads is adjusted so that process torque is transmitted. An overload causes the unit to slip.
Morse torque limiters are simple design, economical, easy adjustment, compact and dependable

Maximum Bore w/ Key, Setscrew:	0.5	Outside Diameter (mm):	38.1 mm
Detection Method:	Friction Pad	Disconnect Method:	Friction Pad
Bore Shape:	Straight Bore	Sensor Plate:	No
Total Length (in):	1.5 in	Recovery Style:	Automatic
Series / Model:	150	Trip Torque [Min]:	1
Torque [Min] (N-m):	1.36	Backlash:	Zero
Type:	Torque Overload Devices	Bore Size (in):	0.5 in
Unit Accuracy:	0.25	Total Length (mm):	38.1 mm
Outside Diameter (in):	1.5 in	Reset Type:	Automatic
Torque Capacity [Max] (lb-ft):	1.25	Product Type:	Torque Limiter
Torque Capacity [Min] (lb-ft):	0.0833333333333333	Max RPM:	1, 400
Torque [Max] (N-m):	20.4	Bore (Min) (in):	0.5 in
Bore (Max) (in):	0.5 in	Torque Capacity [Min] (in-lb):	1
Sprocket Bore Diameter:	.876/.878	Torque Capacity [Max] (in-lb):	15
Minimum Sprocket Teeth:	#35 (16 Teeth)	#50 (11 Teeth)	1
Finished w/ Keyway	1	662288601005	1
0.46 LB	1	2.90 Inches	1
2.60 Inches	1	1.50 Inches	1
8483.60.8000	1	United States of America	1
