- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
140 O/L

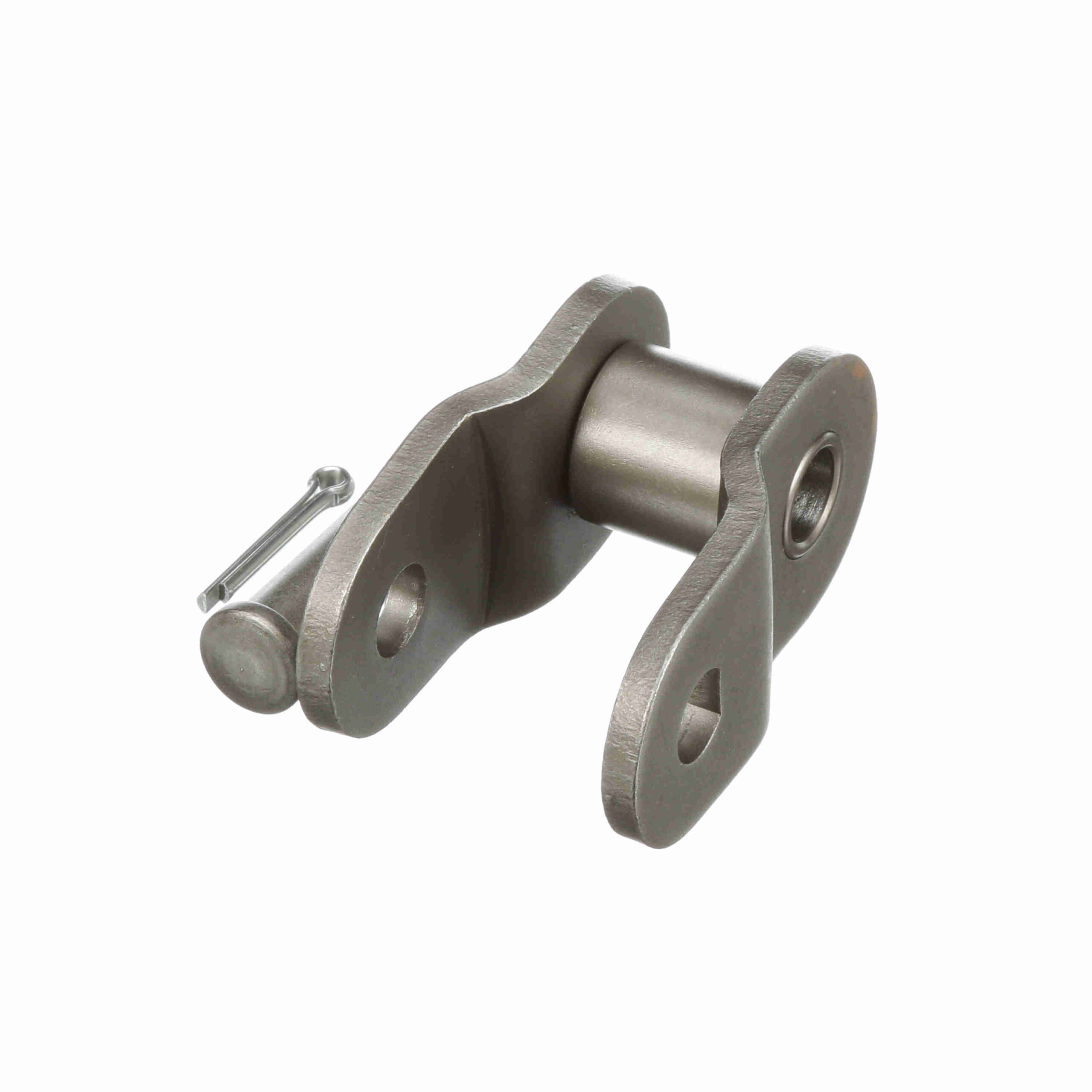

Morse Standard Roller Chain Offset Link – 140 O/L
$38.75
Out of stock
Out of stock
| Pin Diameter (in): | 0.5 in | Roller Diameter (in): | 1 in |
|---|---|---|---|
| Centerline to Opposite cotter Pin Side: | 1.059 | Width Over Pins/Total Width: | 2.117 |
| Average Ultimate Tensile Strength (psi): | 46, 000 | Roller Width (in): | 1 in |
| Side Plate Cfg.: | Hourglass | Number of Strands/Width: | 1 |
| Centerline to Outside of cotter Pin: | 1.215 | Material: | Steel |
| Chain Size: | 140 | Plate Thickness: | 0.219 |
| Single Pitch Offset Link: | Cottered | Inside Plate Height: | 1.634 |
| Chain Type: | Standard | Chain Pitch (in): | 1.75 in |
| Product Type: | Roller Chain | Link Type: | Offset Link |
| UPC: | 662288395591 | Weight: | 1.21 LB |
| Packaged Length: | 4.15 Inches | Packaged Width: | 4.65 Inches |
| Packaged Height: | 1.85 Inches | HTC: | 7315.19.0000 |
| Country of Origin: | Taiwan, Republic of China |
