- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS8P56

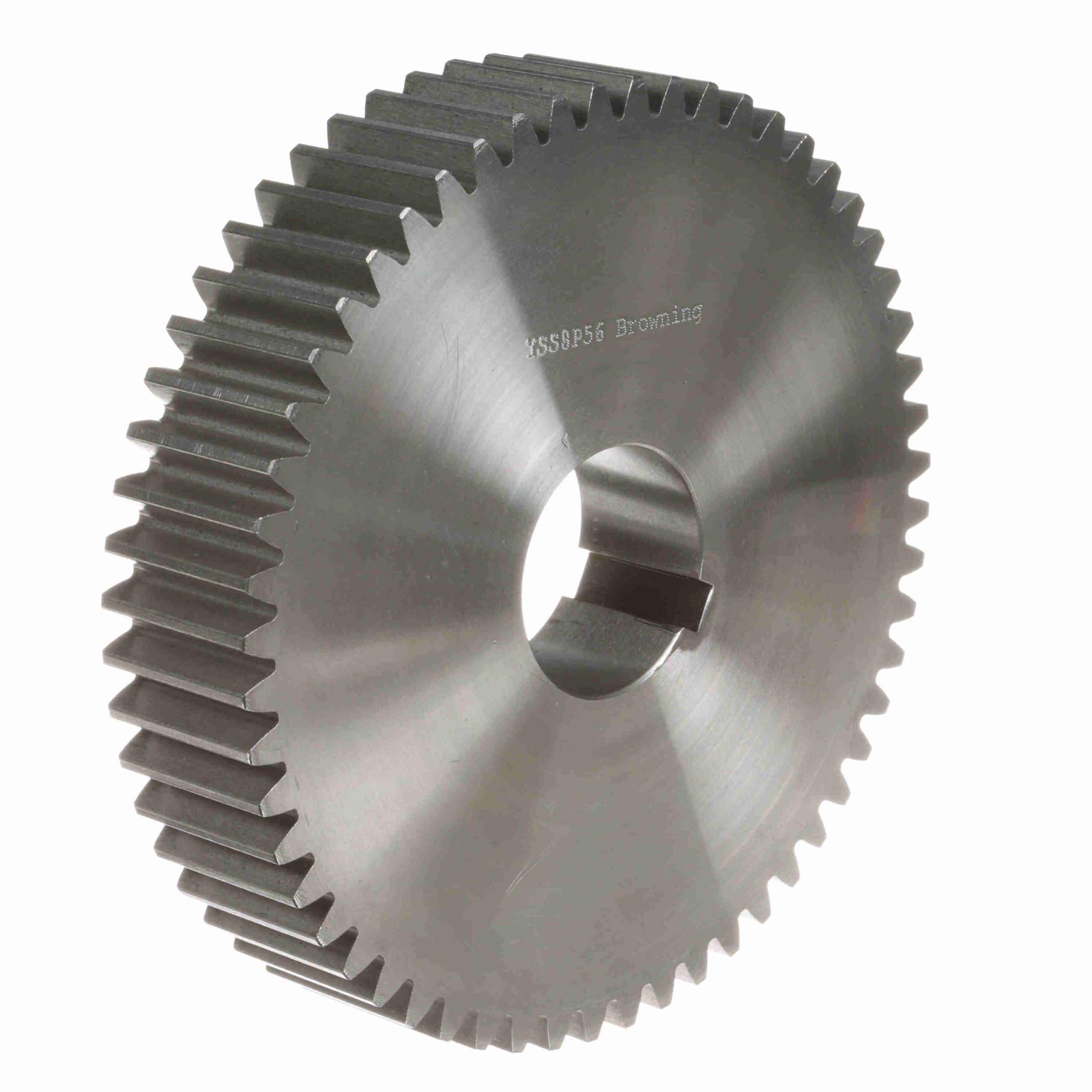

Browning Steel Bushed Bore Spur Gear – 20 PA 8 DP – YSS8P56
Out of stock
| Pitch Diameter (in): | 7 in | Outside Diameter (in): | 7.25 in |
|---|---|---|---|
| Pressure Angle: | 20 | Face Width (in): | 1.5 in |
| Material: | Steel | Number of Teeth/Threads: | 56 |
| Diametral Pitch: | 8 | Bore (Max) (in): | 1.75 in |
| Bore (Min) (in): | 0.5 in | Length Through Bore (in): | 2.1875 in |
| Bore Type: | Bushed Bore | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | P1 |
| Standard Met: | AGMA | Overall Length (in): | 2.1875 in |
| UPC: | 662289117956 | Weight: | 13.71 LB |
| Packaged Length: | 8.60 Inches | Packaged Width: | 8.40 Inches |
| Packaged Height: | 2.70 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
