- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1654

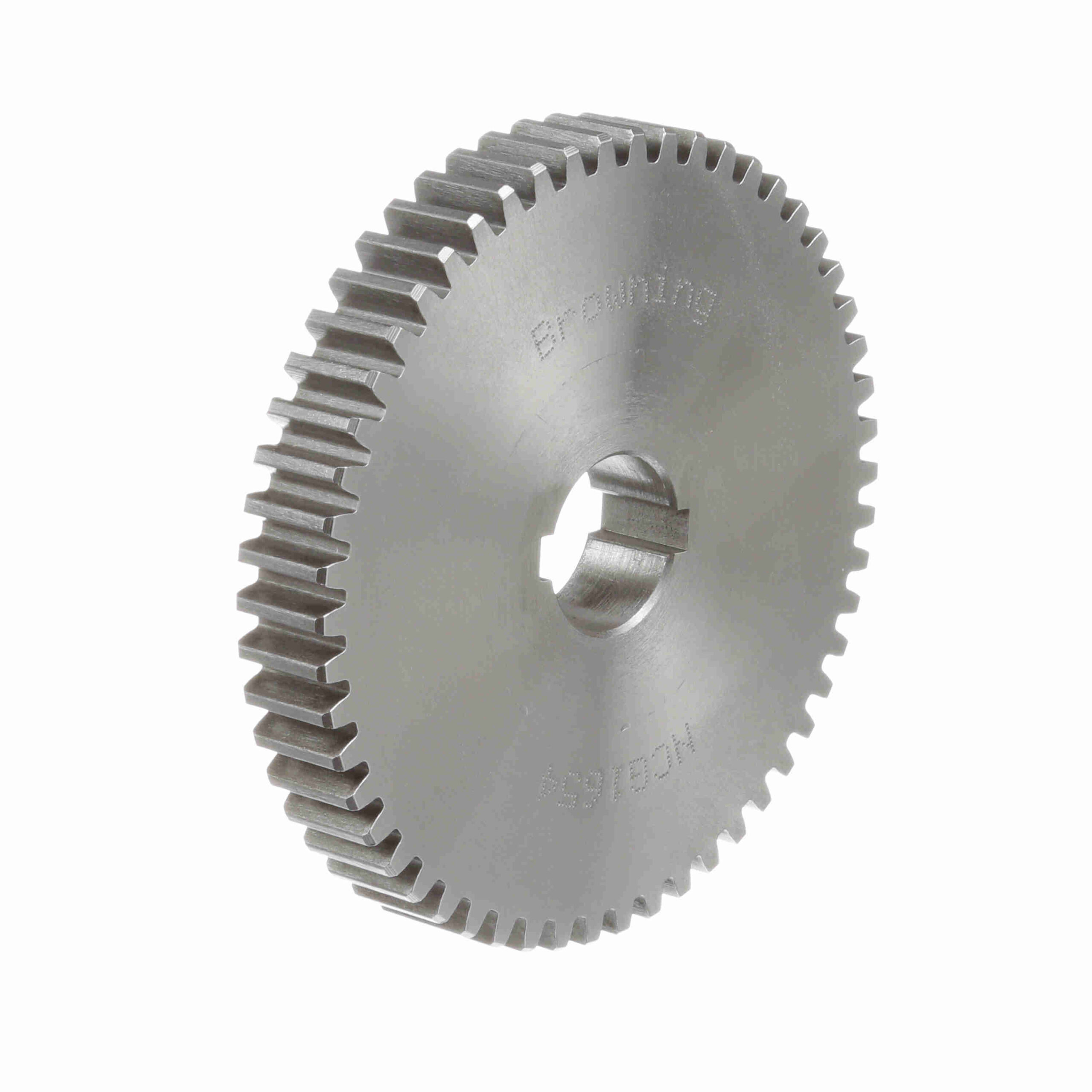

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG1654
$236.14
Out of stock
Out of stock
| Outside Diameter (in): | 3.5 in | Face Width (in): | 0.5 in |
|---|---|---|---|
| Pressure Angle: | 14.5 | Number of Teeth/Threads: | 54 |
| Diametral Pitch: | 16 | Material: | Steel |
| Pitch Diameter (in): | 3.375 in | Bore (Max) (in): | 0.75 in |
| Length Through Bore (in): | 0.5 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Change Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289169245 |
| Weight: | 1.25 LB | Packaged Length: | 4.00 Inches |
| Packaged Width: | 3.60 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
