- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YSS2025

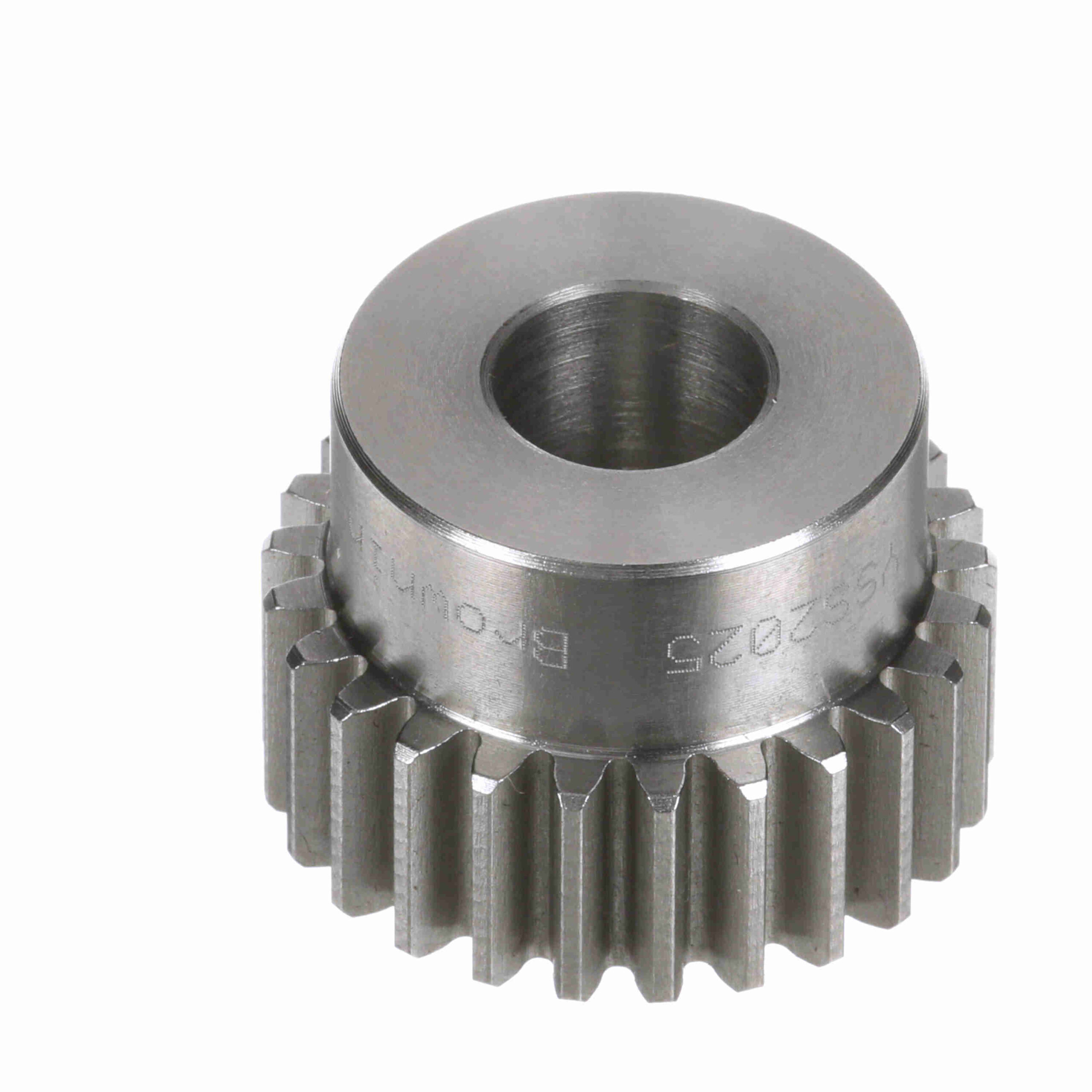

Browning Steel Minimum Plain Bore Spur Gear – 20 PA 20 DP – YSS2025
Out of stock
| Diametral Pitch: | 20 | Outside Diameter (in): | 1.35 in |
|---|---|---|---|
| Pitch Diameter (in): | 1.25 in | Material: | Steel |
| Pressure Angle: | 20 | Number of Teeth/Threads: | 25 |
| Face Width (in): | 0.5 in | Hub Diameter (in): | 1.1094 in |
| Hub Projection (in): | 0.4375 in | Length Through Bore (in): | 0.9375 in |
| Bore (Max) (in): | 0.625 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 0.5 in | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 0.9375 in | Standard Met: | AGMA |
| UPC: | 662289135813 | Weight: | 0.27 LB |
| Packaged Length: | 2.60 Inches | Packaged Width: | 2.80 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
