- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1055

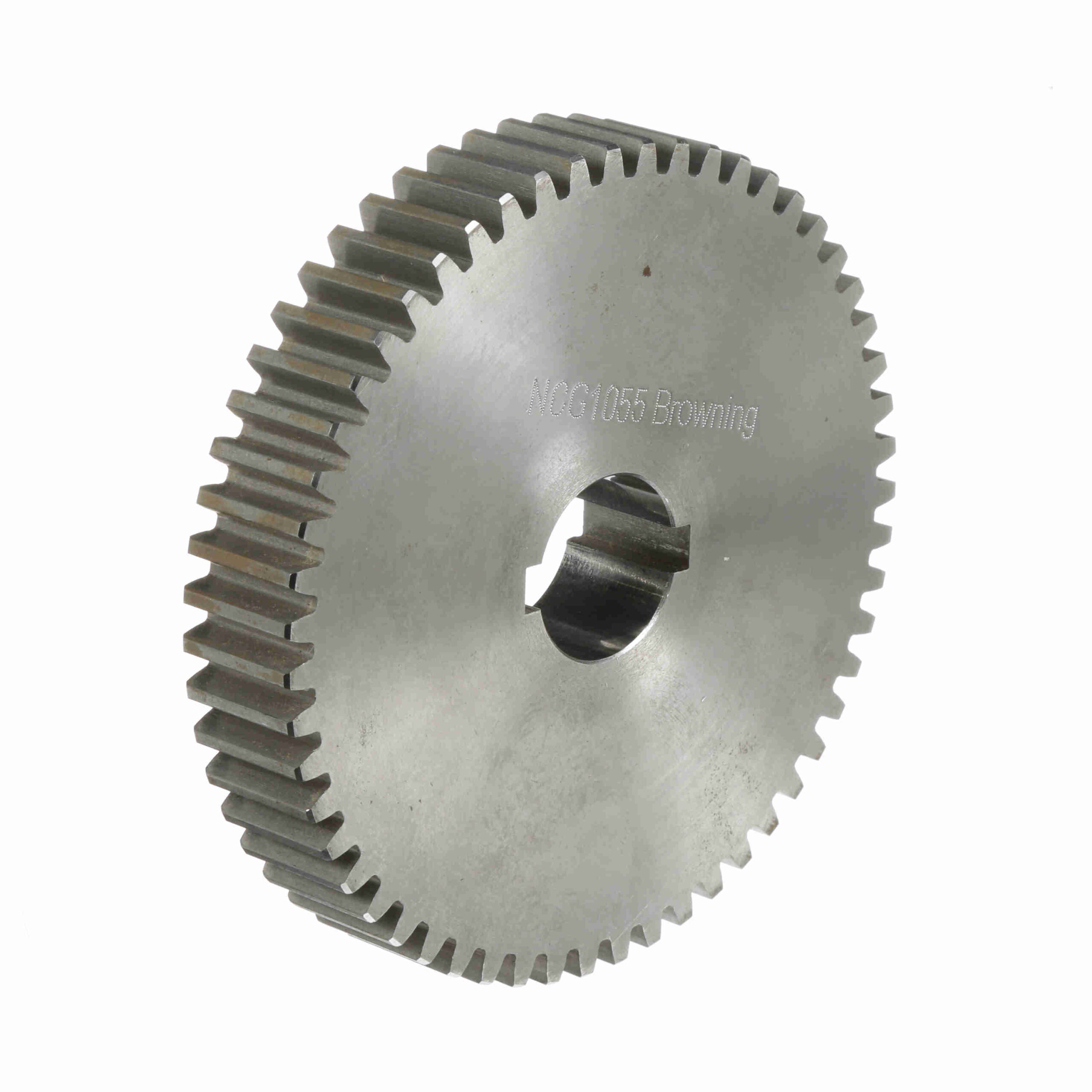

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 10 DP – NCG1055
$427.14
Out of stock
Out of stock
| Pitch Diameter (in): | 5.5 in | Material: | Steel |
|---|---|---|---|
| Number of Teeth/Threads: | 55 | Diametral Pitch: | 10 |
| Outside Diameter (in): | 5.7 in | Pressure Angle: | 14.5 |
| Face Width (in): | 1 in | Bore (Max) (in): | 1.25 in |
| Length Through Bore (in): | 1 in | Bore (Min) (in): | 1.25 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Change Gear |
| Bore Size (in): | 1.25 in | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289211272 |
| Weight: | 6.39 LB | Packaged Length: | 6.60 Inches |
| Packaged Width: | 6.70 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
