- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB12F36-20X1

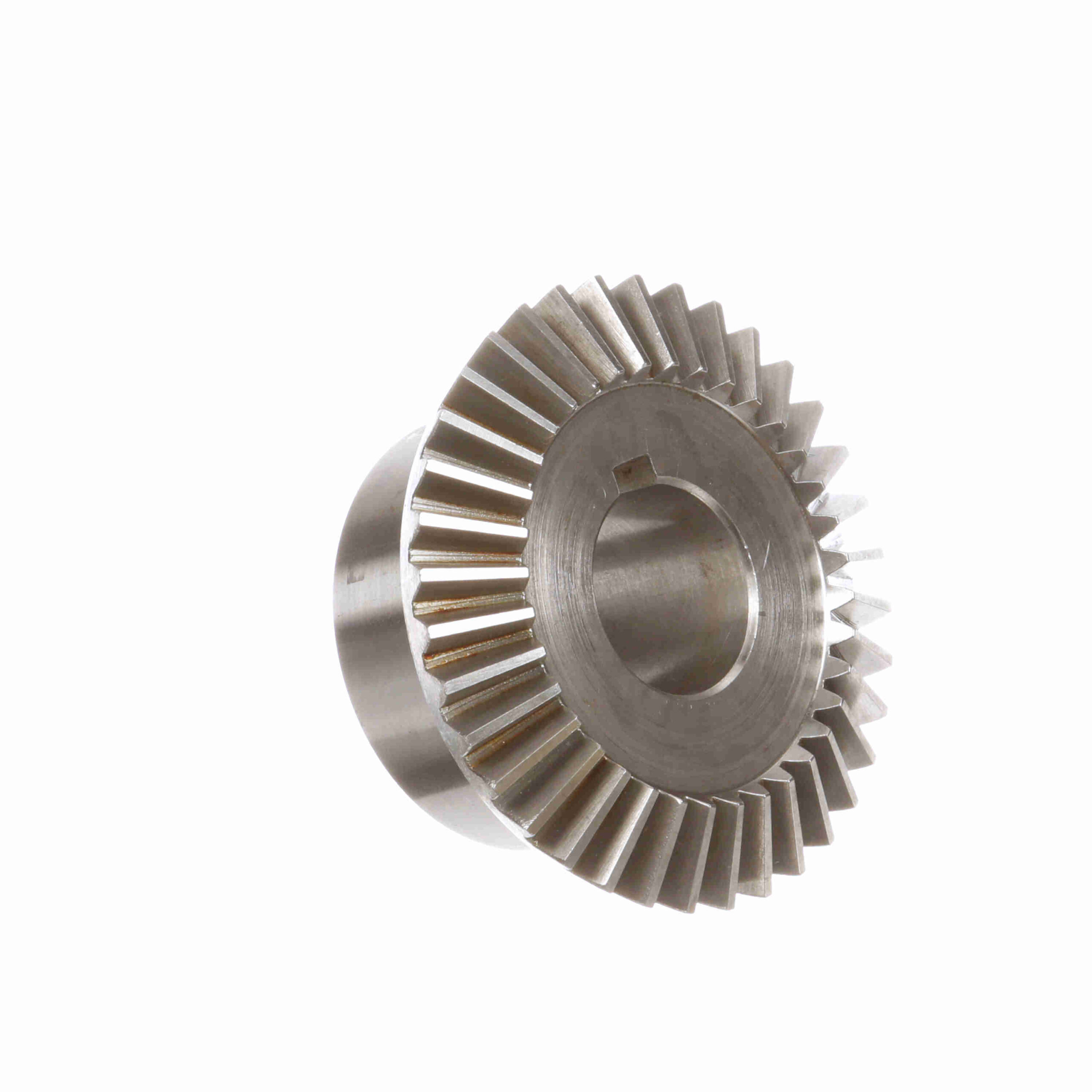

Browning Steel Finished Bore Bevel Gear – 20 PA 12 DP – YSB12F36-20X1
Out of stock
| Material: | Steel | Number of Teeth/Threads: | 36 |
|---|---|---|---|
| Hub Projection (in): | 0.875 in | Face Width (in): | 0.53 in |
| Pitch Diameter (in): | 3 in | Diametral Pitch: | 12 |
| Hub Diameter (in): | 2.125 in | Mounting Distance: | 1.875 |
| Pressure Angle: | 20 | Length Through Bore (in): | 1.265625 in |
| Bore (Min) (in): | 1 in | Bore Type: | Finished Bore |
| Bore Size (in): | 1 in | Product Type: | Bevel Gear |
| UPC: | 662289165315 | Weight: | 1.33 LB |
| Packaged Length: | 4.00 Inches | Packaged Width: | 3.90 Inches |
| Packaged Height: | 2.30 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | India |
