- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB12B18-40

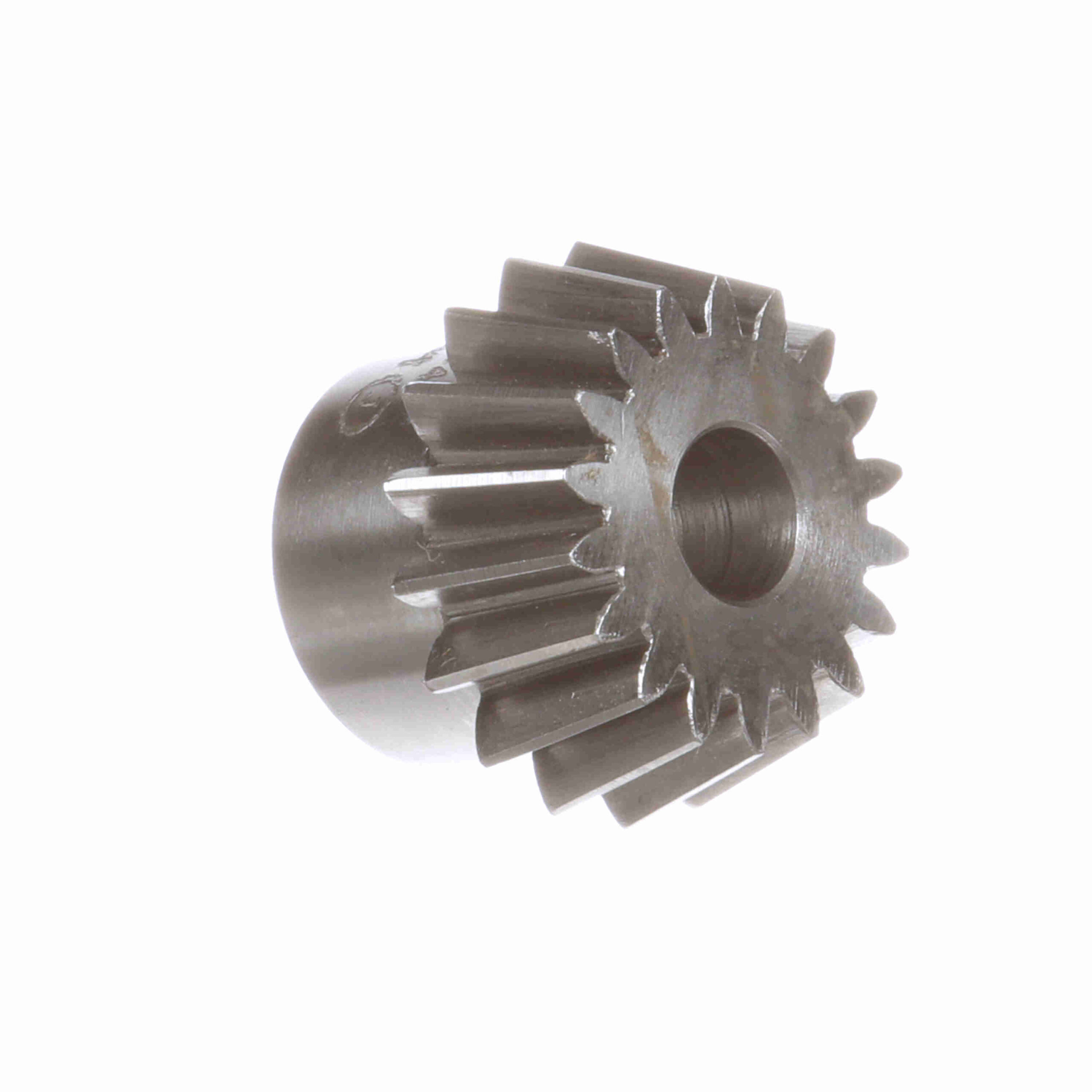

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 12 DP – YSB12B18-40
Out of stock
| Mounting Distance: | 3.75 | Face Width (in): | 0.6 in |
|---|---|---|---|
| Material: | Steel | Hub Diameter (in): | 1.25 in |
| Hub Projection (in): | 0.71875 in | Diametral Pitch: | 12 |
| Number of Teeth/Threads: | 18 | Pressure Angle: | 20 |
| Pitch Diameter (in): | 1.5 in | Bore (Max) (in): | 0.5625 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 1.359375 in |
| Bore (Min) (in): | 0.5 in | Bore Size (in): | 0.5 in |
| Product Type: | Bevel Gear | UPC: | 662289244843 |
| Weight: | 0.53 LB | Packaged Length: | 3.10 Inches |
| Packaged Width: | 3.30 Inches | Packaged Height: | 2.10 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
