- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB12B18-30

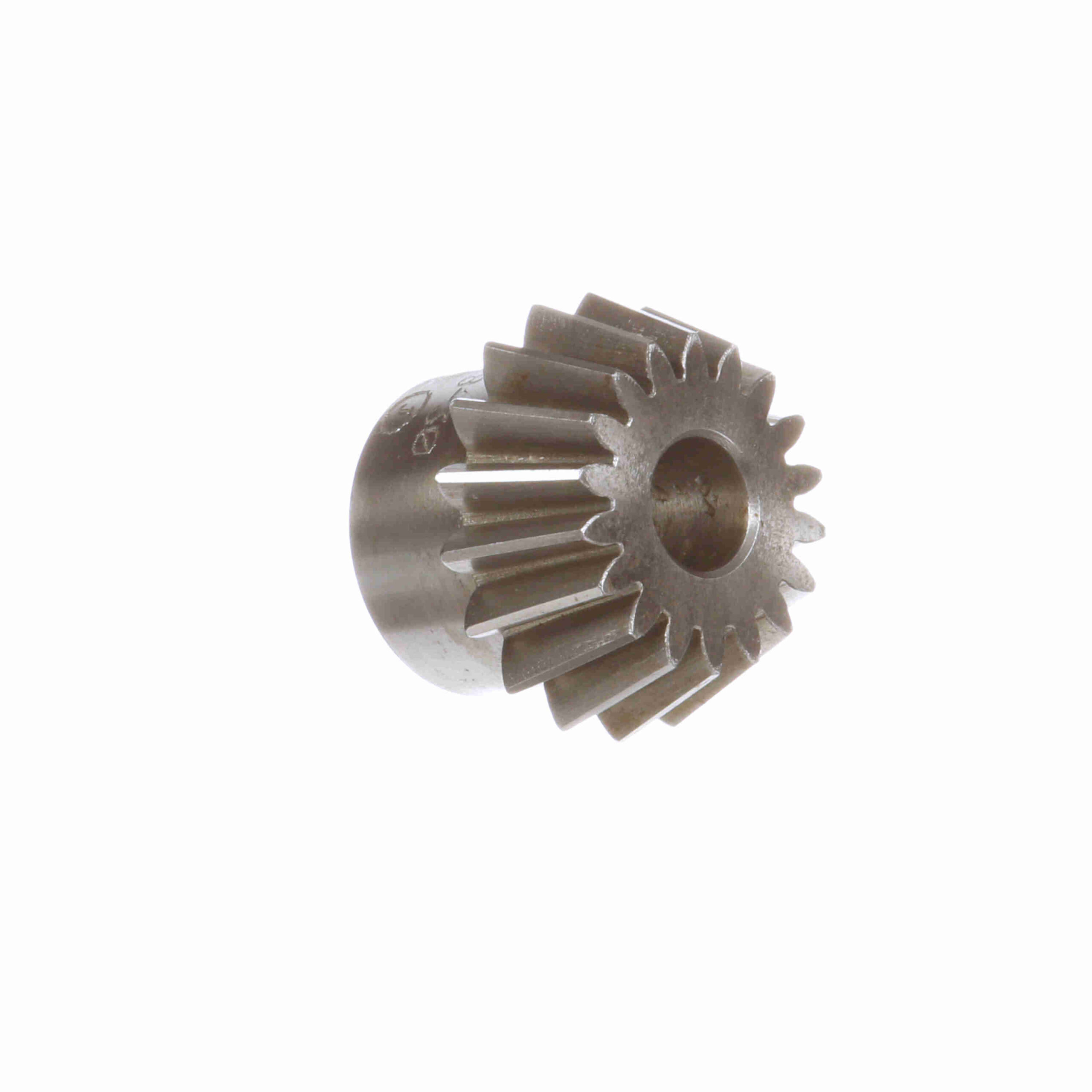

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 12 DP – YSB12B18-30
$137.80
Out of stock
Out of stock
| Mounting Distance: | 3 | Hub Diameter (in): | 1.25 in |
|---|---|---|---|
| Face Width (in): | 0.6 in | Hub Projection (in): | 0.6875 in |
| Material: | Steel | Diametral Pitch: | 12 |
| Number of Teeth/Threads: | 18 | Pressure Angle: | 20 |
| Pitch Diameter (in): | 1.5 in | Length Through Bore (in): | 1.34375 in |
| Bore (Min) (in): | 0.5 in | Bore (Max) (in): | 0.5625 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 0.5 in |
| Product Type: | Bevel Gear | UPC: | 662289214792 |
| Weight: | 0.47 LB | Packaged Length: | 3.30 Inches |
| Packaged Width: | 3.20 Inches | Packaged Height: | 1.60 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
