- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM12B21X5/8

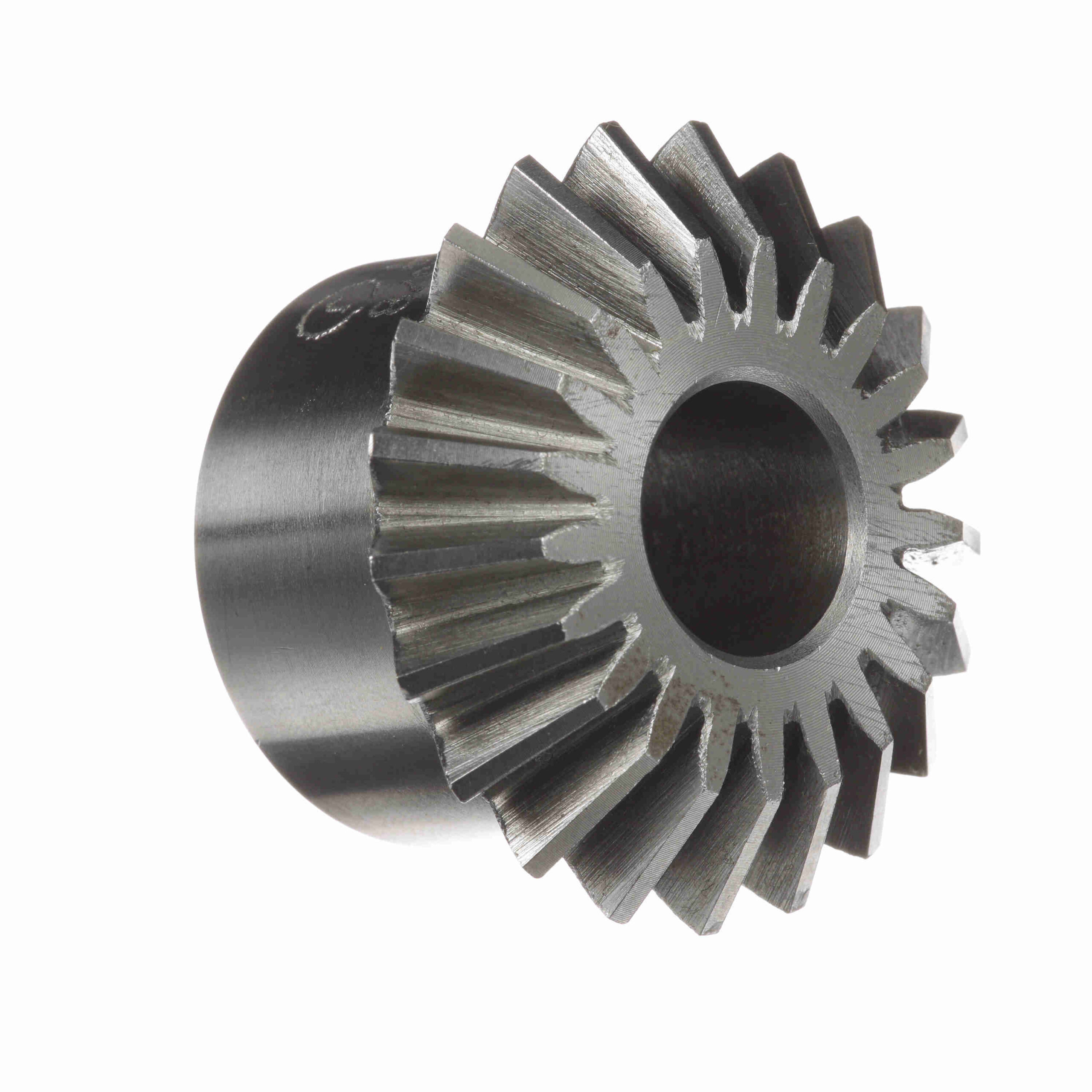

Browning Steel Minimum Plain Bore Miter Gear – 20 PA 12 DP – YSM12B21X5/8
$152.83
Out of stock
Out of stock
| Diametral Pitch: | 12 | Material: | Steel |
|---|---|---|---|
| Mounting Distance: | 1.75 | Hub Projection (in): | 0.6875 in |
| Hub Diameter (in): | 1.375 in | Pressure Angle: | 20 |
| Number of Teeth/Threads: | 21 | Pitch Diameter (in): | 1.75 in |
| Face Width (in): | 0.39 in | Length Through Bore (in): | 1.1875 in |
| Bore (Min) (in): | 0.625 in | Bore (Max) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Product Type: | Miter Gear |
| Bore Size (in): | 0.625 in | UPC: | 662289116737 |
| Weight: | 0.47 LB | Packaged Length: | 3.00 Inches |
| Packaged Width: | 3.30 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
