- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-335

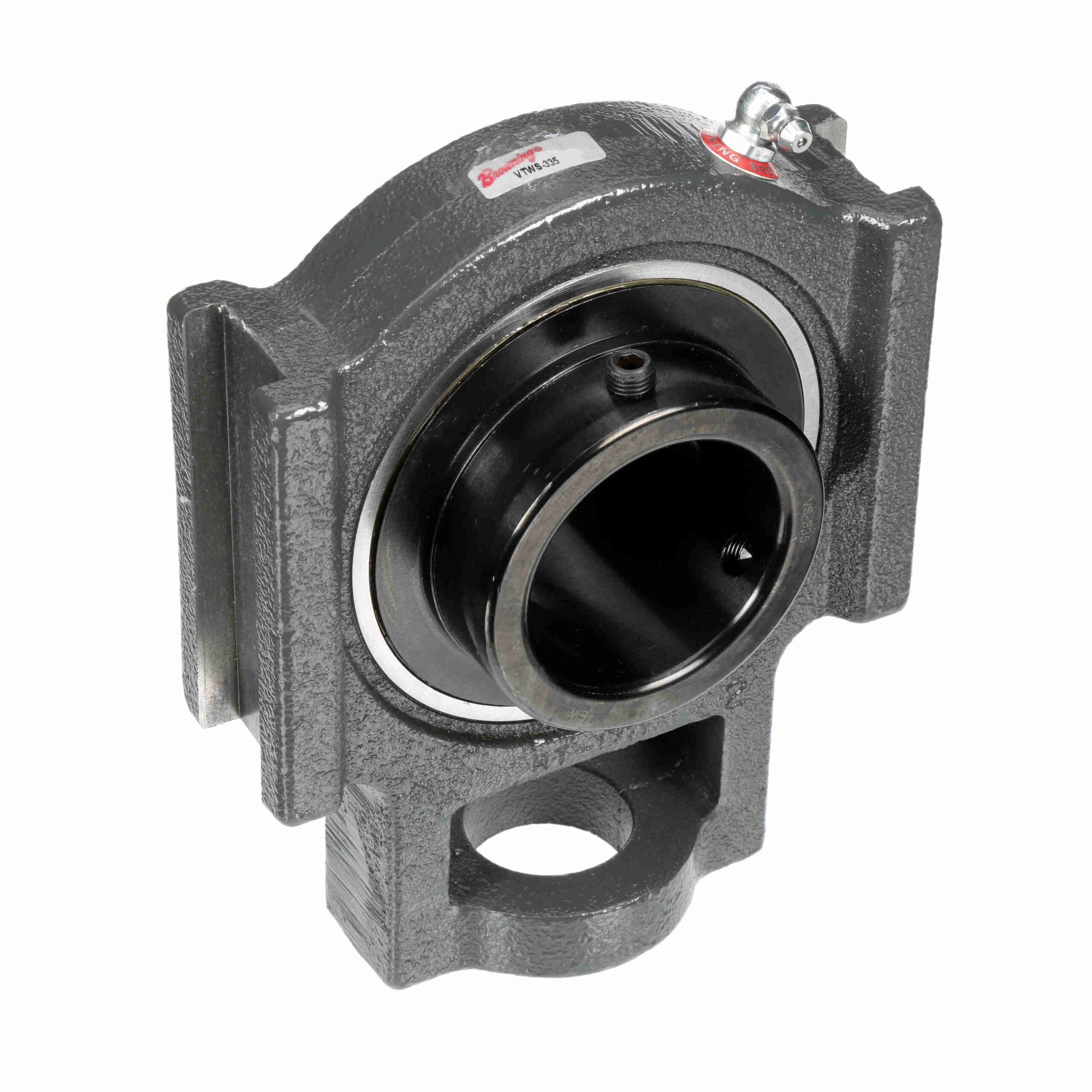

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-335
$315.08
Out of stock
Out of stock
| Expansion: | No | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert No.: | VS-335 | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Retainer Type: | Ball Riding Retainer | Speed (Max): | 2500 |
| Housing Material: | Cast Iron | Duty Series: | Medium Duty |
| Maximum Operating Temperature: | 200 °F | Housing Type: | Take-Up Block, Wide Slot |
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Inch |
| Locking Type: | Setscrew | Frame Type: | Center Pull Wide Slot |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 11, 789 | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| End Cap: | No | Housing Color: | Gray |
| Series: | VTWS-300 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289533909 |
| Weight: | 9.30 LB | Packaged Length: | 7.6 Inches |
| Packaged Width: | 8.3 Inches | Packaged Height: | 2.8 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
