- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-319

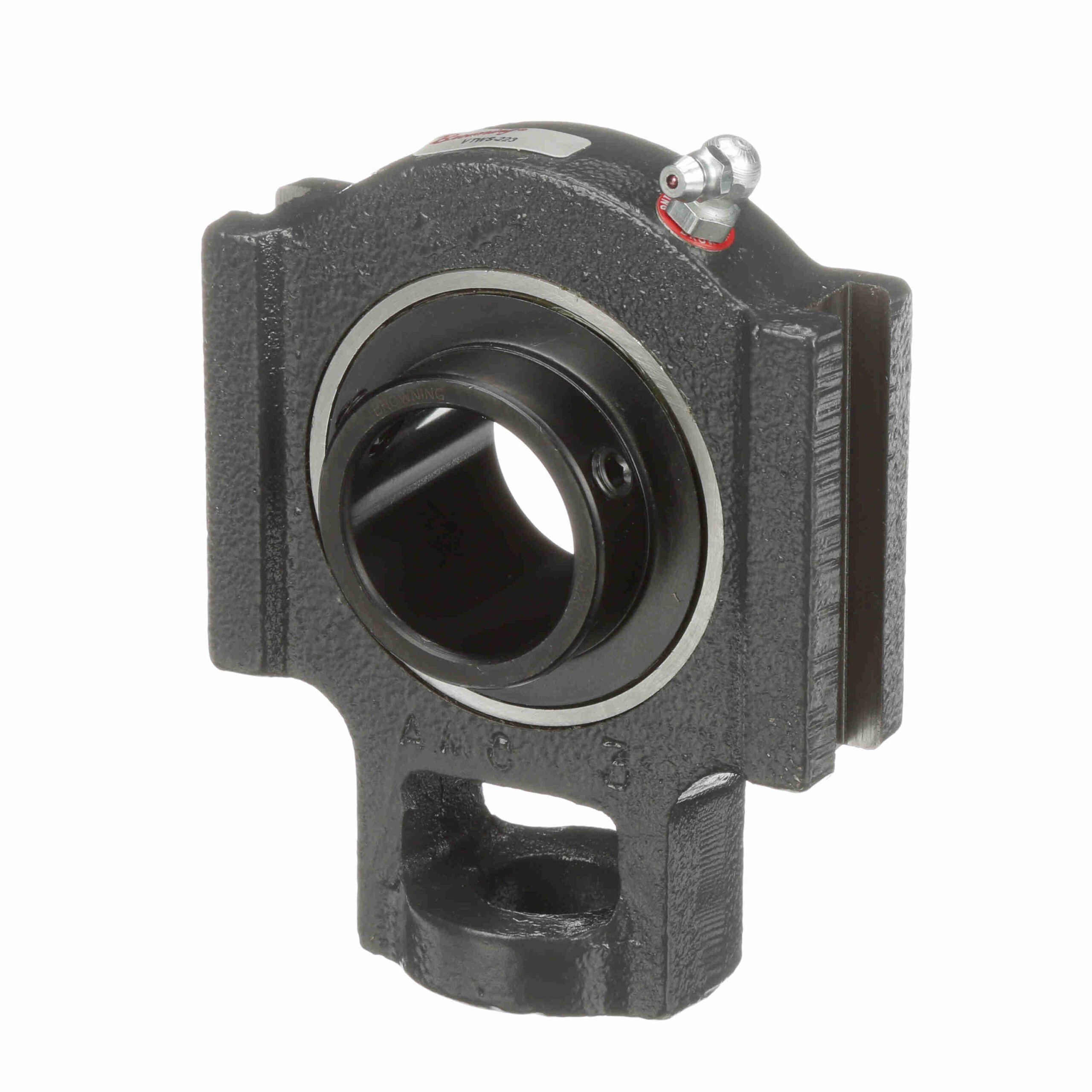

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-319
$215.19
Out of stock
Out of stock
| Insert No.: | VS-319 | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Housing Type: | Take-Up Block, Wide Slot | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Measure Units: | Inch | Expansion: | No |
| Speed (Max): | 4000 | Housing Material: | Cast Iron |
| Duty Series: | Medium Duty | Retainer Type: | Ball Riding Retainer |
| Maximum Operating Temperature: | 200 °F | Seal Type: | Single Lip Contact Seal with Flinger |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Bore Shape: | Straight |
| Frame Type: | Center Pull Wide Slot | Misalignment: | ±1.5° Misalignment - Static Only |
| Internal Clearance: | Standard | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | End Cap: | No |
| Retainer Material: | Molded fiber glass reinforced nylon | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Series: | VTWS-300 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289533800 |
| Weight: | 3.46 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
