- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
MST-16

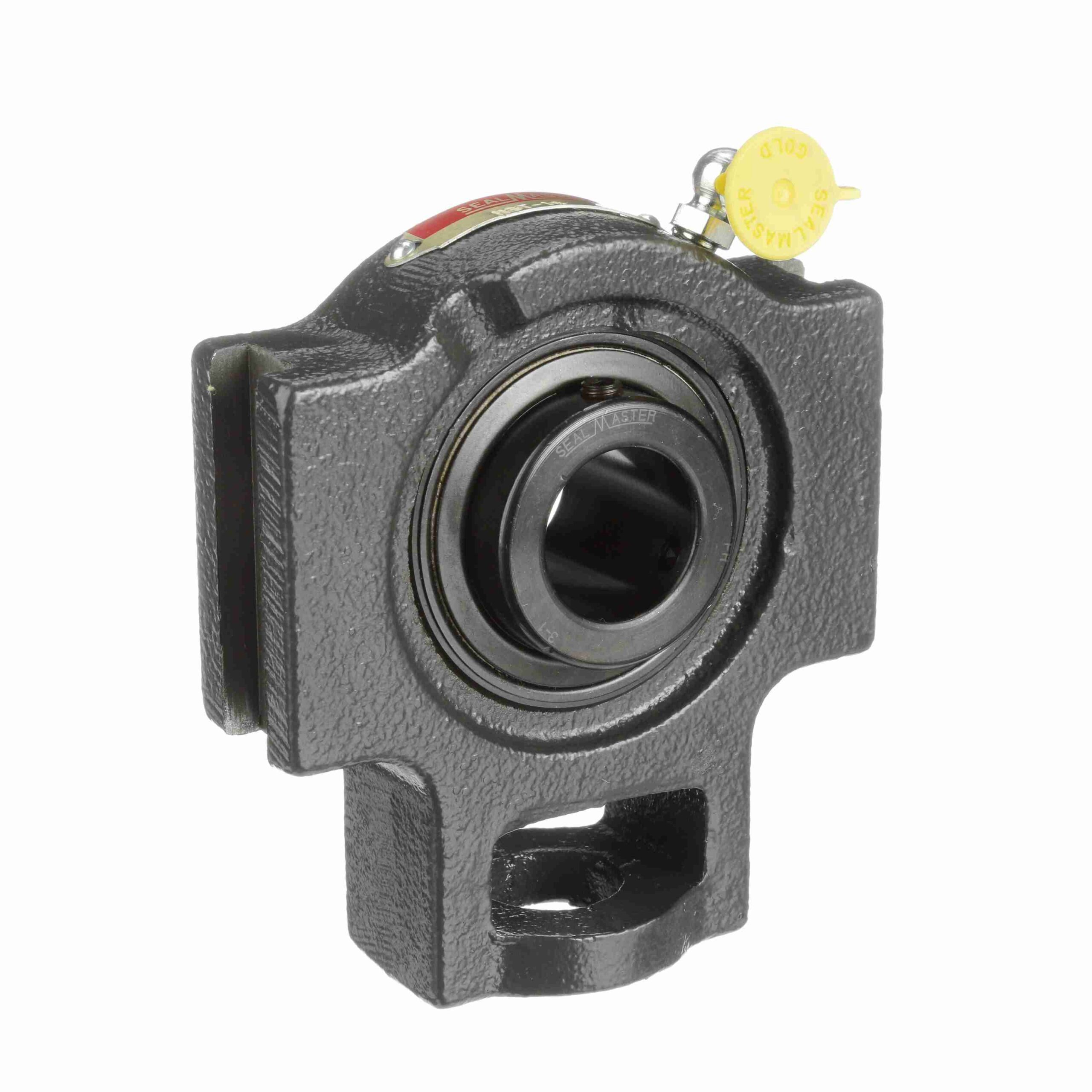

Sealmaster Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MST-16
$169.57
Availability: 3 in stock
Availability: 3 in stock
| Speed (Max): | 5450 | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Duty Series: | Medium Duty | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Take-Up Block; Wide Slot | Insert No.: | 3-1 |
| Retainer Type: | Land Riding Retainer | Measure Units: | Inch |
| Housing Material: | Cast Iron | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Expansion: | No | Rolling Element: | Ball Bearing |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Locking Type: | Setscrew |
| Frame Type: | Center Pull Wide Slot | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Series: | MST |
| Unit Type: | Side Mount | Component Description: | Take Up Bearing Only |
| UPC: | 662461001271 | Weight: | 3.27 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
