- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-228

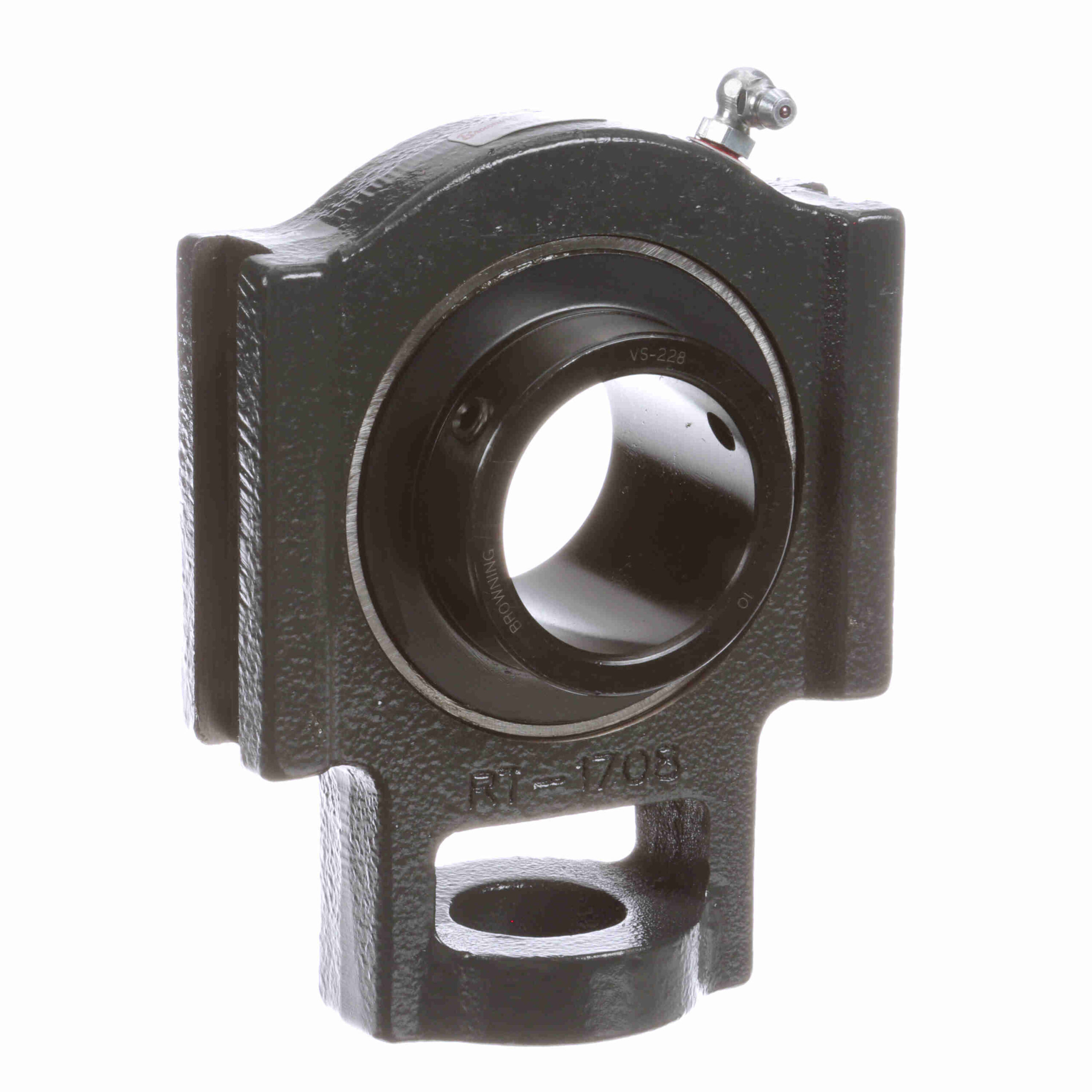

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-228
$254.42
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Inch |
|---|---|---|---|
| Maximum Operating Temperature: | 200 °F | Housing Type: | Take-Up Block, Wide Slot |
| Duty Series: | Standard Duty | Expansion: | No |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Insert No.: | VS-228 |
| Housing Material: | Cast Iron | Speed (Max): | 3000 |
| Retainer Type: | Ball Riding Retainer | Rolling Element: | Ball Bearing |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Frame Type: | Center Pull Wide Slot | Relubricatable: | Yes |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 7, 901 |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| End Cap: | No | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Series: | VTWS-200 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289528585 |
| Weight: | 5.60 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
