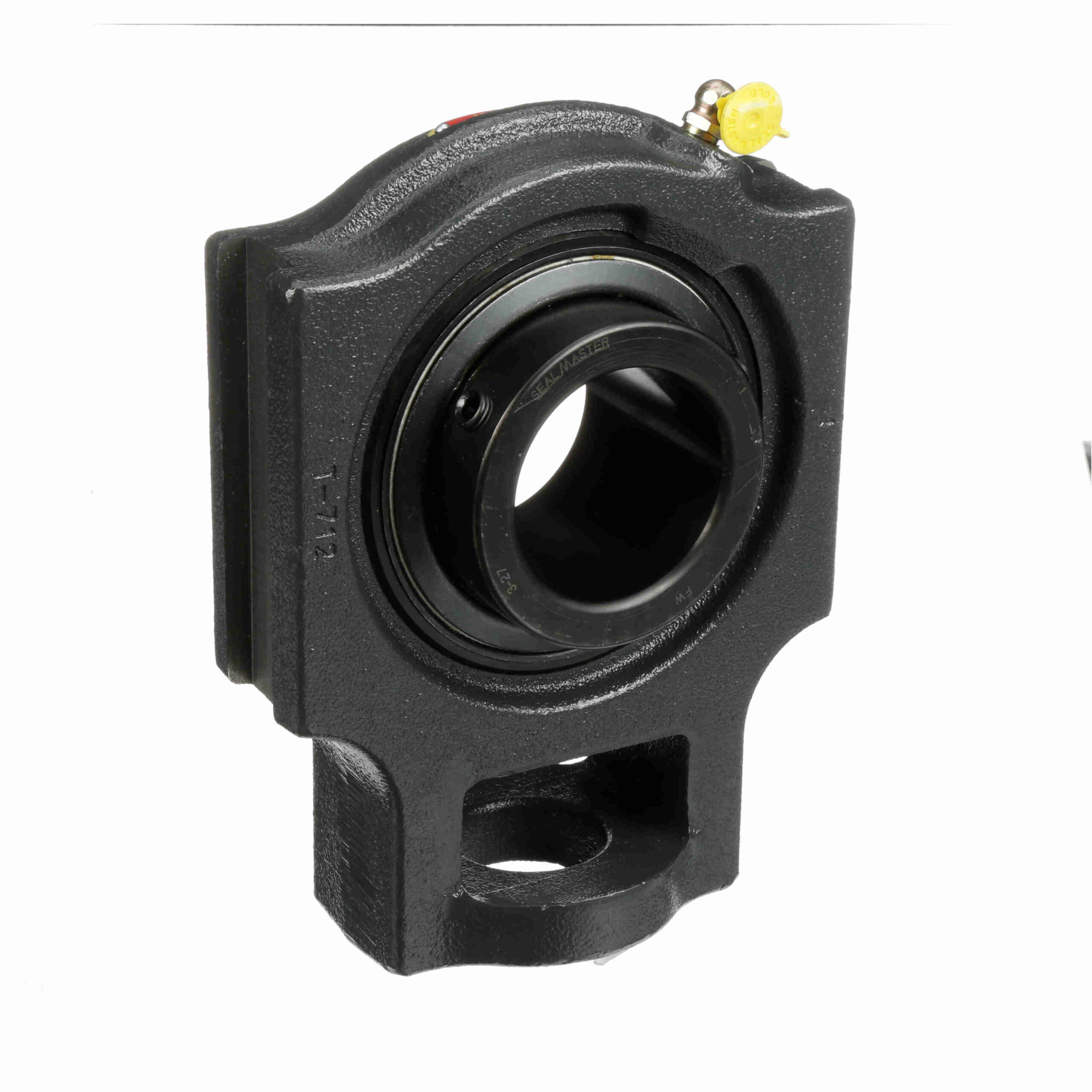

MST-39

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Measure Units:	Inch	Duty Series:	Medium Duty
Housing Type:	Take-Up Block; Wide Slot	Insert No.:	3-27
Housing Material:	Cast Iron	Rolling Element:	Ball Bearing
Expansion:	No	Speed (Max):	2500
Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel; Black Oxided
Seal Type:	Felt Labyrinth Seal	Retainer Type:	Land Riding Retainer
Bore Shape:	Straight	Housing Construction:	One Piece
Inner-Race Heat-Treat Method:	Zone-Hardened	Locking Type:	Setscrew
Frame Type:	Center Pull Wide Slot	Radial Dynamic Load Capacity (lb):	13, 971
Misalignment:	±2.0° Misalignment - Static Only	Relubricatable:	Yes
Internal Clearance:	Standard	Lubrication:	Lithium Complex NLGI 2 Grease
Outer Ring Land Profile:	Standard	Platform:	Gold Line Ball Bearing
Housing Color:	Gray	Misalignment Type:	Static Only
Bearing Insert Coating:	Black Oxide Coated	End Cap:	No
Replaceable Insert:	Yes	Series:	MST
Unit Type:	Side Mount	Component Description:	Take Up Bearing Only
UPC:	662461001394	Weight:	17.93 LB
Packaged Length:	10.38 Inches	Packaged Width:	6.5 Inches
Packaged Height:	3 Inches	HTC:	8483.20.4040
Country of Origin:	United States of America
