- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-212

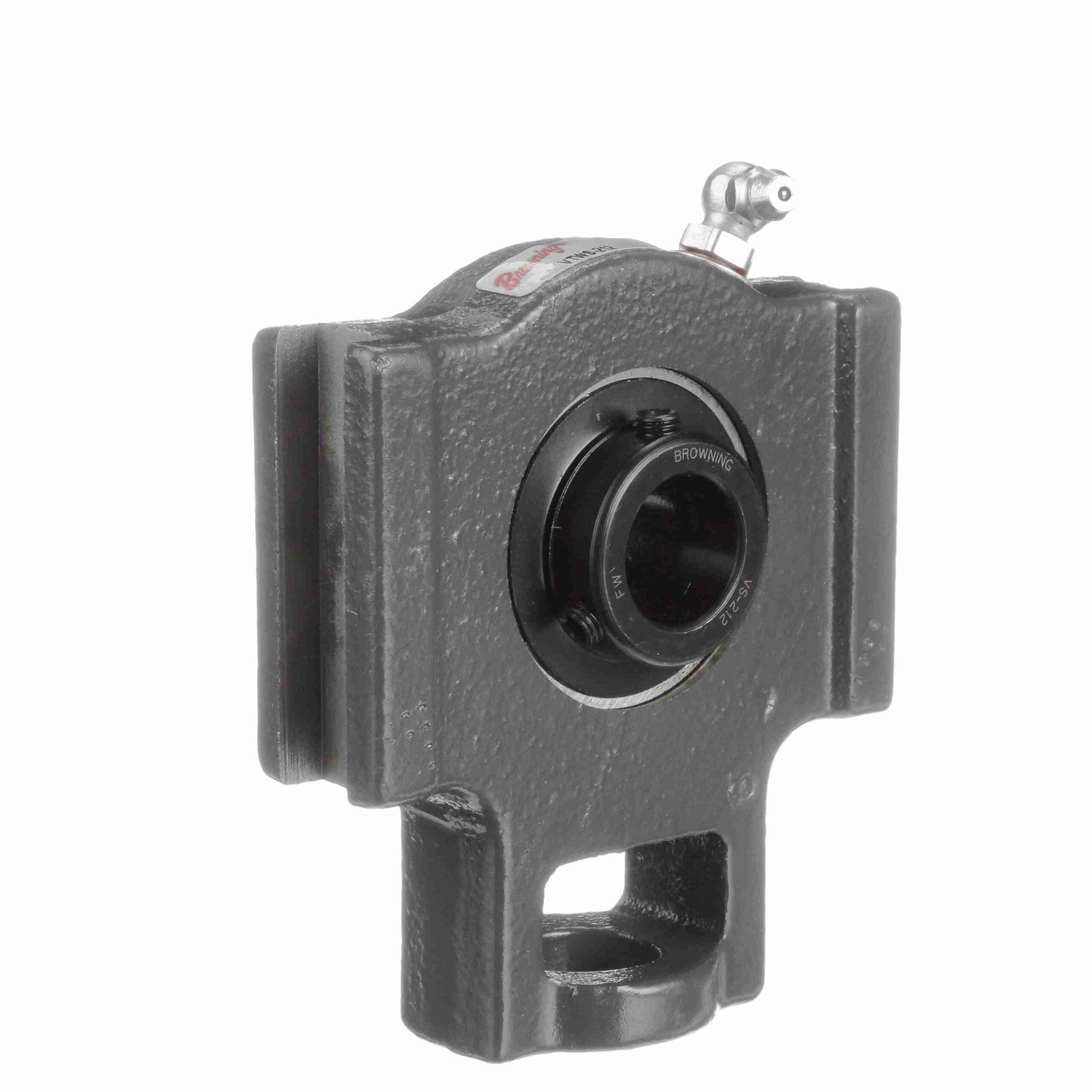

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-212
$103.85
Availability: 4 in stock
Availability: 4 in stock
| Housing Type: | Take-Up Block; Wide Slot | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Inch |
| Speed (Max): | 6500 | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Duty Series: | Standard Duty | Insert No.: | VS-212 |
| Housing Material: | Cast Iron | Expansion: | No |
| Retainer Type: | Ball Riding Retainer | Maximum Operating Temperature: | 200 °F |
| Radial Dynamic Load Capacity (lb): | 2, 611 | Housing Construction: | One Piece |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Internal Clearance: | Standard | Locking Type: | Setscrew |
| Bore Shape: | Straight | Frame Type: | Center Pull Wide Slot |
| Misalignment: | ±1.5° Misalignment - Static Only | Replaceable Insert: | Yes |
| End Cap: | No | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Housing Color: | Gray |
| Series: | VTWS-200 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289528387 |
| Weight: | 1.98 LB | Packaged Length: | 4.7 Inches |
| Packaged Width: | 4.9 Inches | Packaged Height: | 1.7 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
