- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VTBE-228

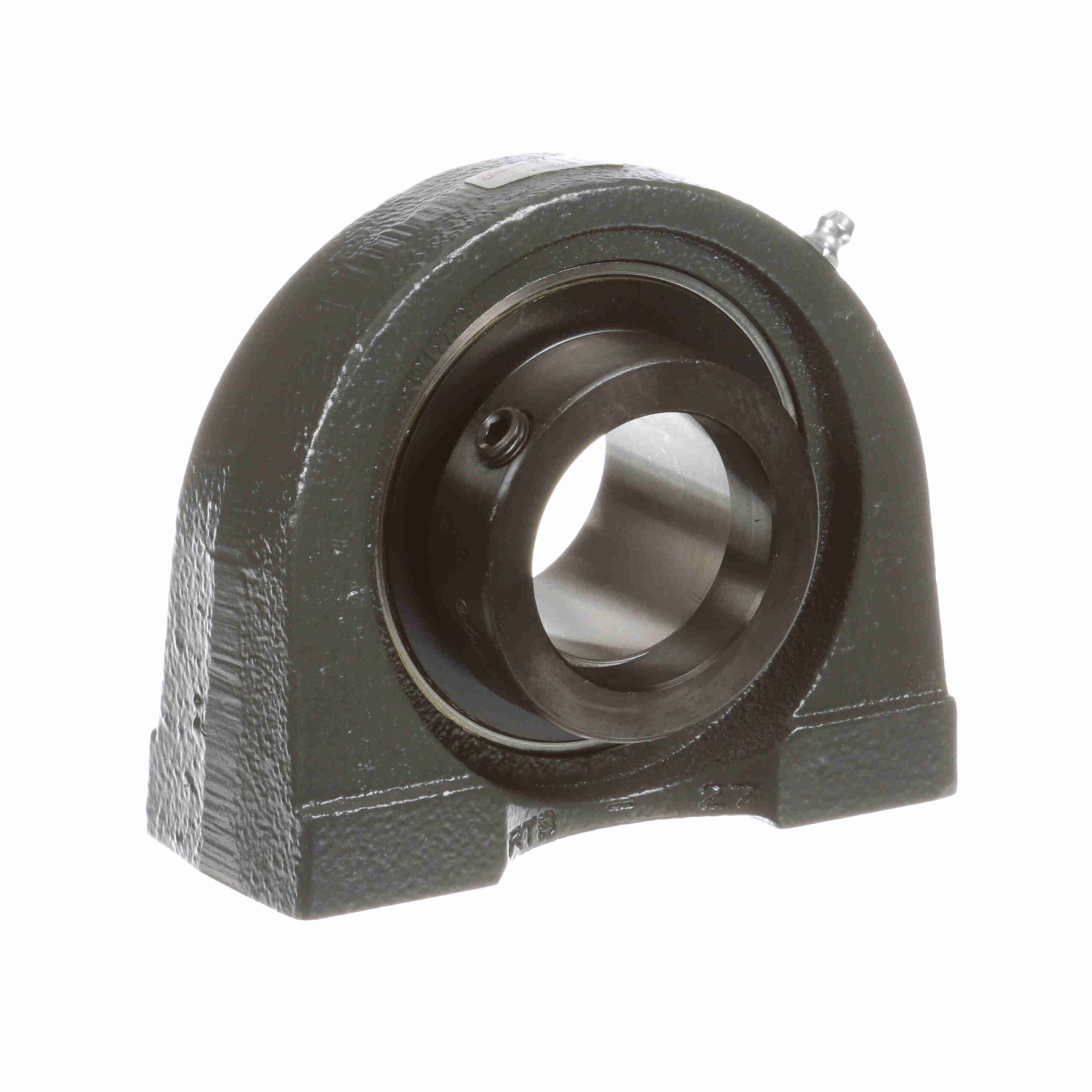

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VTBE-228
$239.23
Out of stock
Out of stock
| Maximum Operating Temperature: | 200 °F | Housing Material: | Cast Iron |
|---|---|---|---|
| Measure Units: | Inch | Housing Type: | Pillow Block; Tapped Base |
| Rolling Element: | Ball Bearing | Speed (Max): | 3000 |
| Seal Type: | Single Lip Contact Seal with Flinger | Expansion: | No |
| Duty Series: | Standard Duty | Retainer Type: | Ball Riding Retainer |
| Housing Base: | Semi-Solid | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Insert No.: | VE-228 | Locking Type: | Eccentric |
| Misalignment: | ±1.5° Misalignment - Static Only | Bore Shape: | Straight |
| Lubrication: | Lithium Complex NLGI 2 Grease | Internal Clearance: | Standard |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| End Cap: | No | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | UPC: | 662460640976 |
| Weight: | 5.37 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
