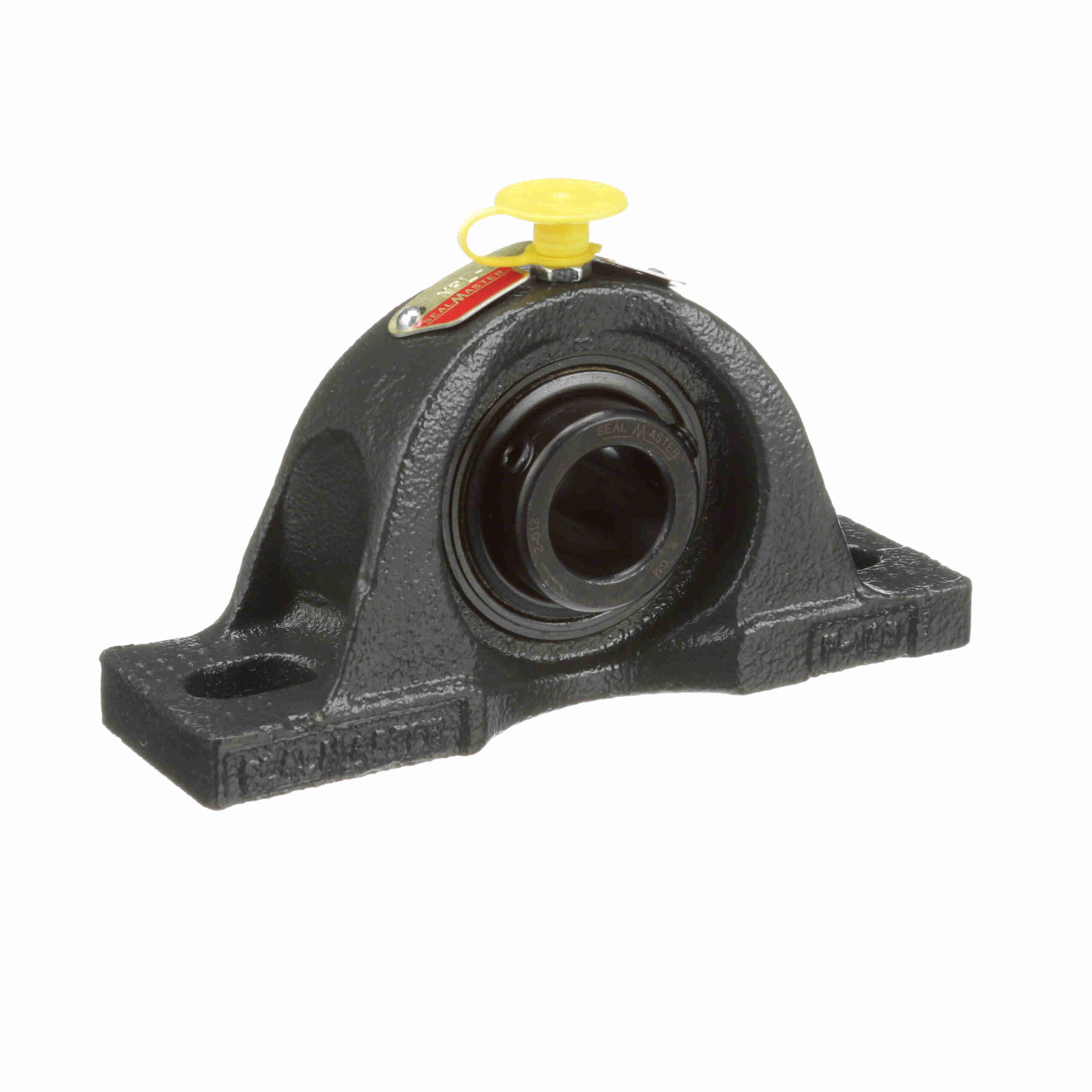

NPL-12

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Speed (Max):	7300	Seal Type:	Felt Labyrinth Seal
Housing Base:	Solid	Housing Material:	Cast Iron
Duty Series:	Standard Duty	Measure Units:	Inch
Internal Clearance:	Standard	Retainer Type:	Land Riding Retainer
Insert Material:	52100 Bearing Steel; Black Oxided	Expansion:	No
Maximum Operating Temperature:	220 °F	Housing Type:	Pillow Block; Two Bolt; Low Base
Rolling Element:	Ball Bearing	Insert No.:	2-012
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	2, 611
Inner-Race Heat-Treat Method:	Zone-Hardened	Lubrication:	Lithium Complex NLGI 2 Grease
Locking Type:	Setscrew	Misalignment:	±2.0° Misalignment - Static Only
Relubricatable:	Yes	Housing Construction:	One Piece
Replaceable Insert:	Yes	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	Bearing Insert Coating:	Black Oxide Coated
Housing Color:	Gray	Misalignment Type:	Static Only
End Cap:	No	Radial Static Load Capacity (lb):	1, 444
UPC:	662461004531	Weight:	1.74 LB
Packaged Length:	3.19 Inches	Packaged Width:	1.69 Inches
Packaged Height:	5.25 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
