- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VTBE-122

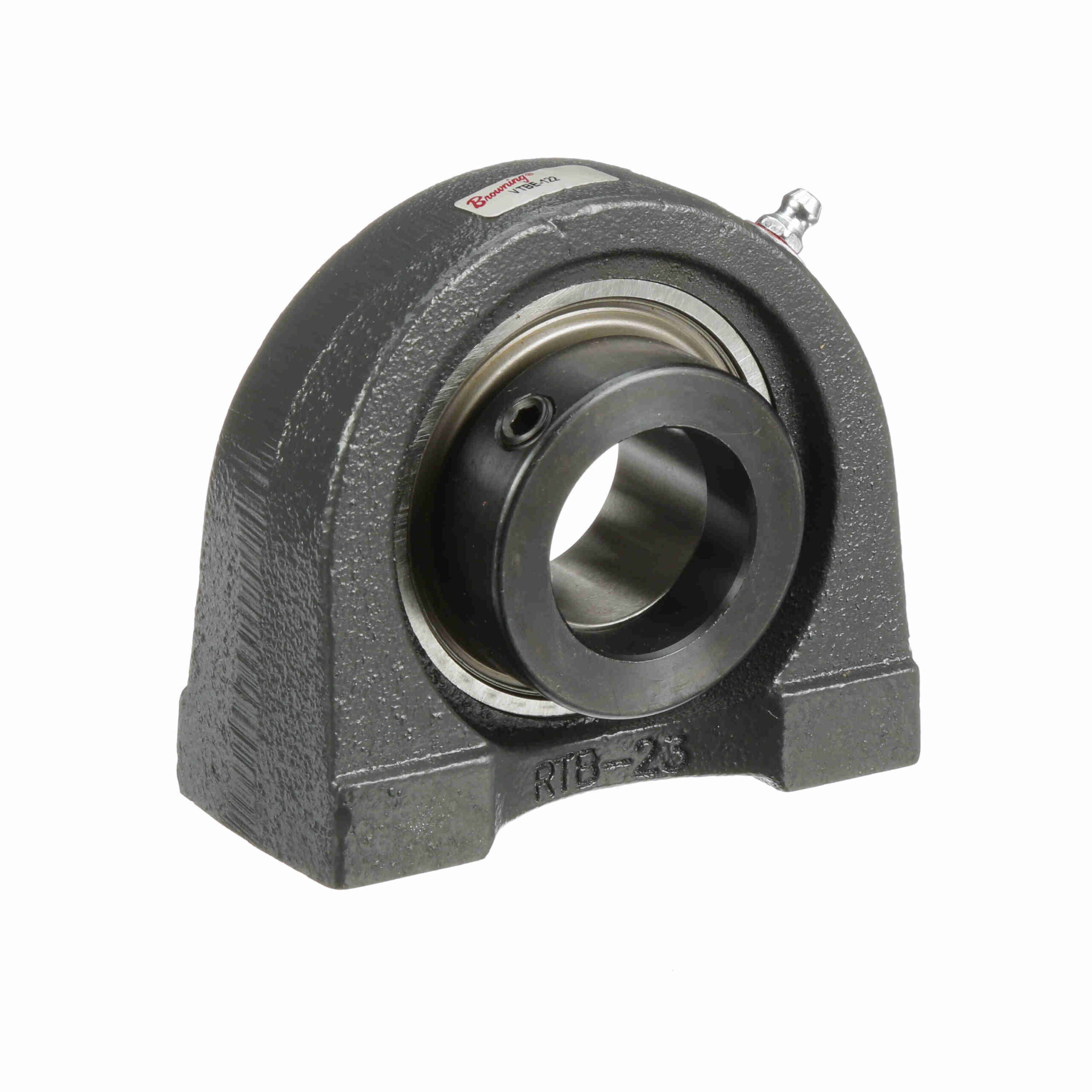

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VTBE-122
$153.38
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Speed (Max): | 2500 | Housing Base: | Semi-Solid |
| Seal Type: | Single Lip Contact Seal | Insert No.: | VE-122 |
| Housing Material: | Cast Iron | Expansion: | No |
| Housing Type: | Pillow Block, Tapped Base | Duty Series: | Intermediate Duty |
| Measure Units: | Inch | Maximum Operating Temperature: | 200 °F |
| Retainer Type: | Ball Riding Retainer | Internal Clearance: | Standard |
| Lubrication: | Lithium Complex NLGI 2 Grease | Relubricatable: | Yes |
| Locking Type: | Eccentric | Bore Shape: | Straight |
| Misalignment: | ±1.5° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Retainer Material: | Molded fiber glass reinforced nylon | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Uncoated | End Cap: | No |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662460339436 |
| Weight: | 3.71 LB | Packaged Length: | 4.4 Inches |
| Packaged Width: | 4.3 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
