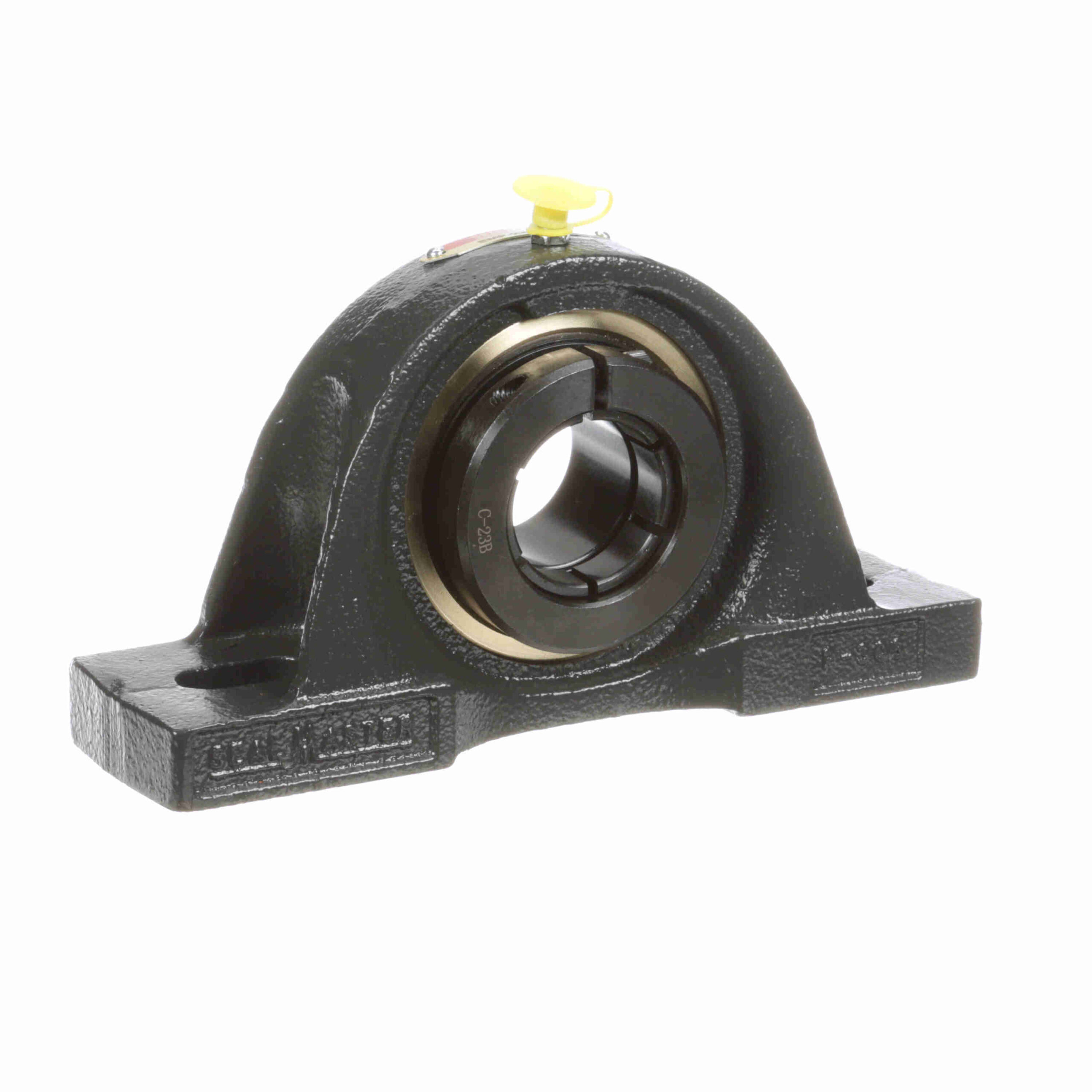

EMP-23T

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Measure Units:	Inch	Seal Type:	Felt Labyrinth Seal
Housing Base:	Solid	Rolling Element:	Ball Bearing
Housing Type:	Pillow Block, Two Bolt	Housing Material:	Cast Iron
Internal Clearance:	Standard	Insert Material:	52100 Bearing Steel, Black Oxided
Speed (Max):	6500	Duty Series:	Medium Duty
Maximum Operating Temperature:	220 °F	Insert No.:	AR-2-17T
Expansion:	Yes	Retainer Type:	Land Riding Retainer
Bore Shape:	Straight	Misalignment:	±2.0° Misalignment - Static Only
Lubrication:	Lithium Complex NLGI 2 Grease	Housing Construction:	One Piece
Inner-Race Heat-Treat Method:	Zone-Hardened	Locking Type:	Concentric
Relubricatable:	Yes	Misalignment Type:	Static Only
Replaceable Insert:	Yes	Bearing Insert Coating:	Black Oxide Coated
Platform:	Gold Line Ball Bearing	End Cap:	No
Outer Ring Land Profile:	Standard	Housing Color:	Gray
UPC:	662461031957	Weight:	6.68 LB
Packaged Length:	9 Inches	Packaged Width:	5.19 Inches
Packaged Height:	2.38 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
