- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
VPS-335 AH

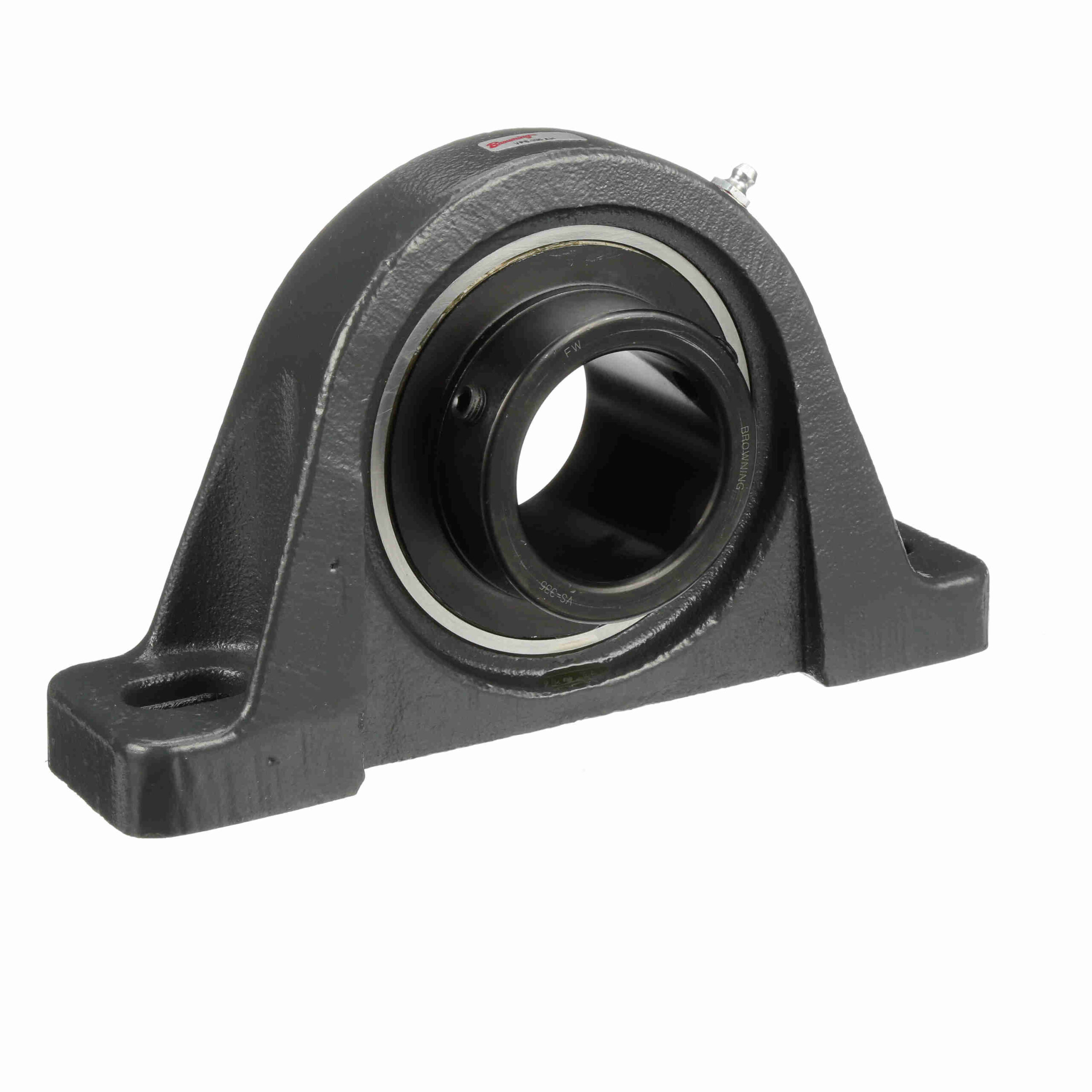

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – Air Handling Housing Fit, Noise Tested – VPS-335 AH
$318.00
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Material: | Cast Iron |
|---|---|---|---|
| Insert No.: | VS-335 | Expansion: | No |
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Speed (Max): | 2500 | Duty Series: | Medium Duty |
| Internal Clearance: | Standard | Retainer Type: | Ball Riding Retainer |
| Maximum Operating Temperature: | 200 °F | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Housing Type: | Pillow Block; Two Bolt | Housing Base: | Semi-Solid |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 11, 789 |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Housing Color: | Gray |
| Options: | Air Handling Housing Fit; Noise Tested | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| End Cap: | No | Retainer Material: | Molded fiber glass reinforced nylon |
| Platform: | Air Handling | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Radial Static Load Capacity (lb): | 8, 150 | UPC: | 662460066844 |
| Weight: | 11.34 LB | Packaged Length: | 10.8 Inches |
| Packaged Width: | 6 Inches | Packaged Height: | 3.2 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
