- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-30MM

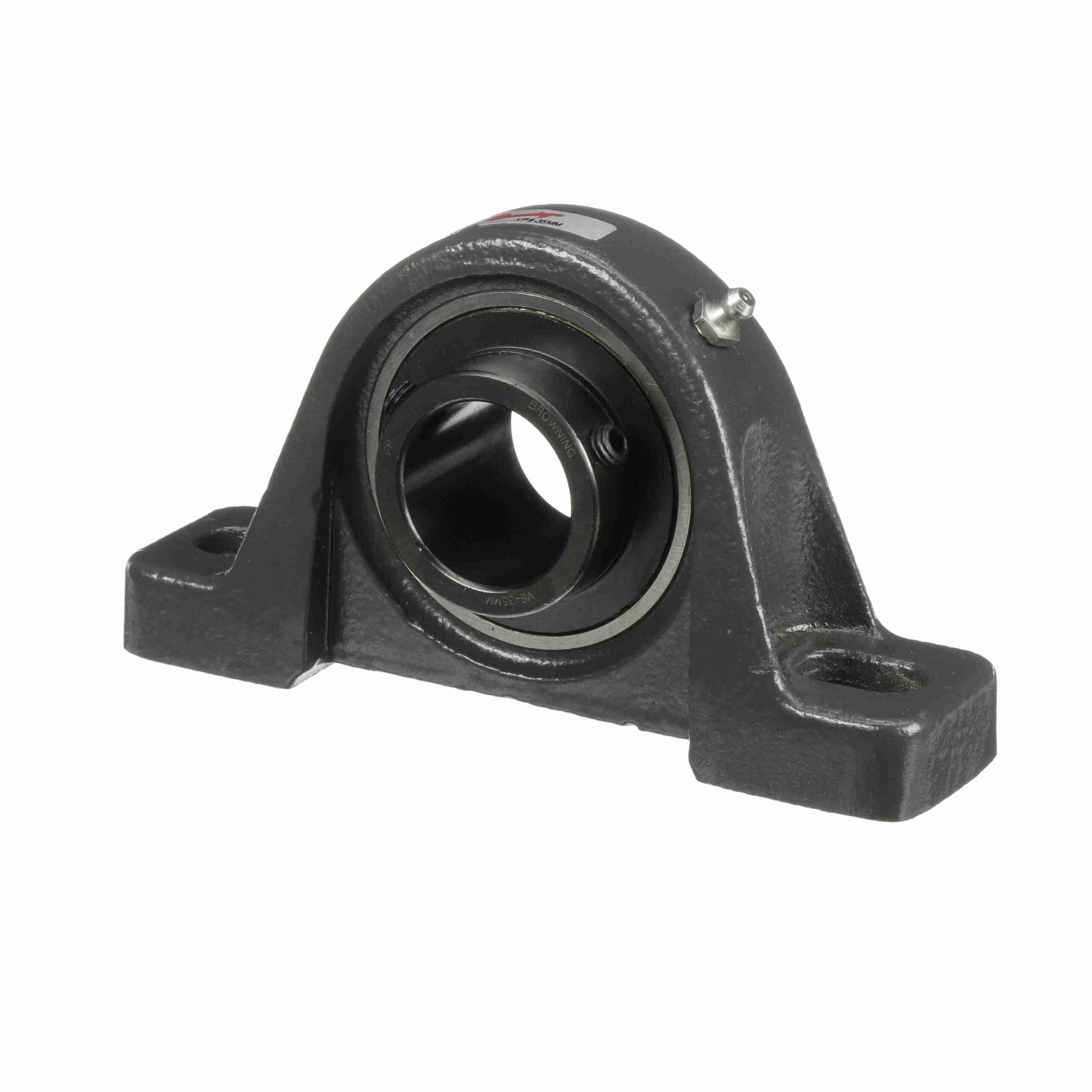

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-30MM
$218.48
Out of stock
Out of stock
| Insert No.: | VS-30MM | Housing Material: | Cast Iron |
|---|---|---|---|
| Duty Series: | Standard Duty | Housing Base: | Semi-Solid |
| Speed (Max): | 4500 | Expansion: | No |
| Internal Clearance: | Standard | Retainer Type: | Ball Riding Retainer |
| Maximum Operating Temperature: | 200 °F | Housing Type: | Pillow Block, Two Bolt |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Rolling Element: | Ball Bearing |
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Metric |
| Bore Shape: | Straight | Relubricatable: | Yes |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Outer Ring Land Profile: | Standard |
| End Cap: | No | UPC: | 662460604794 |
| Weight: | 2.73 LB | Packaged Length: | 7.1 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
