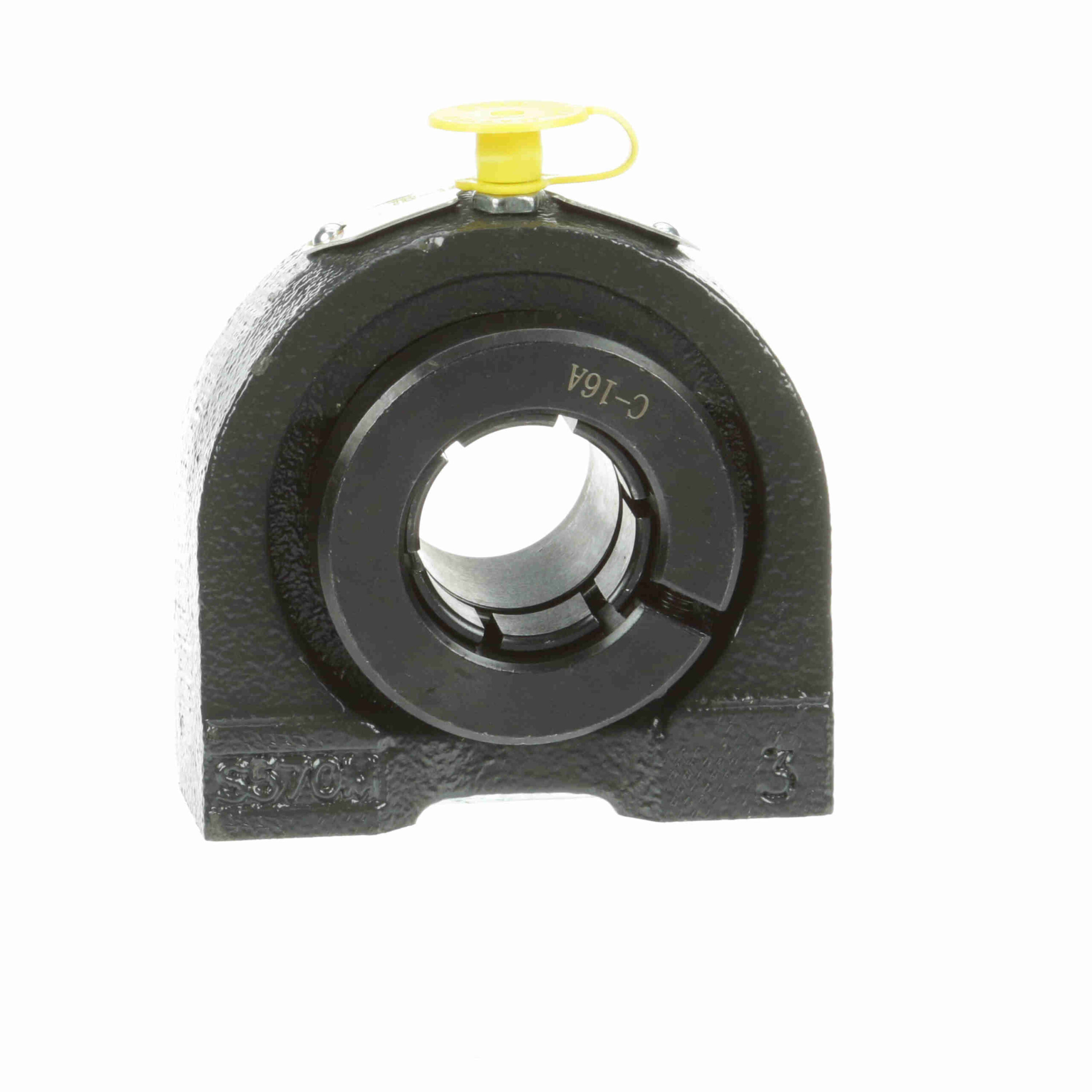

TB-16TC

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Base:	Solid	Housing Type:	Pillow Block, Tapped Base
Maximum Operating Temperature:	220 °F	Insert No.:	2-1TC
Housing Material:	Cast Iron	Measure Units:	Inch
Seal Type:	Single Lip Contact Seal	Retainer Type:	Land Riding Retainer
Rolling Element:	Ball Bearing	Speed (Max):	6350
Insert Material:	52100 Bearing Steel, Black Oxided	Duty Series:	Standard Duty
Expansion:	No	Lubrication:	Lithium Complex NLGI 2 Grease
Relubricatable:	Yes	Misalignment:	±2.0° Misalignment - Static Only
Bore Shape:	Straight	Housing Construction:	One Piece
Internal Clearance:	Standard	Radial Dynamic Load Capacity (lb):	2, 801
Inner-Race Heat-Treat Method:	Zone-Hardened	Locking Type:	Concentric
End Cap:	No	Housing Color:	Gray
Replaceable Insert:	Yes	Outer Ring Land Profile:	Standard
Bearing Insert Coating:	Black Oxide Coated	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	Radial Static Load Capacity (lb):	1, 651
UPC:	662461034040	Weight:	2.00 LB
Packaged Length:	4 Inches	Packaged Width:	1.5 Inches
Packaged Height:	3.94 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
