- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-232S

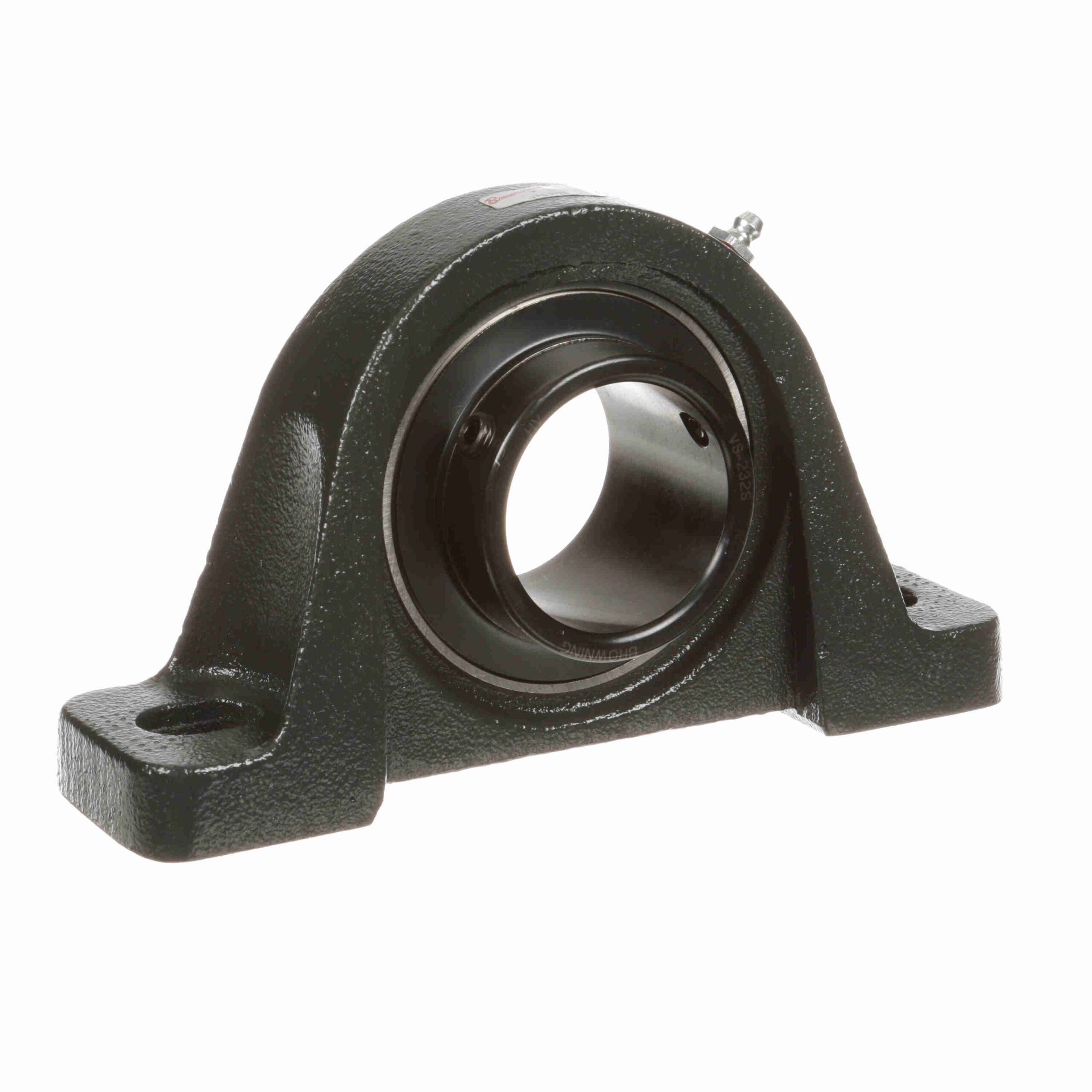

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-232S
$200.06
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Internal Clearance: | Standard |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Housing Base: | Semi-Solid |
| Measure Units: | Inch | Seal Type: | Single Lip Contact Seal with Flinger |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 889 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Radial Static Load Capacity (lb): | 5, 216 lb |
| Housing Style: | Pillow Block | Maximum Speed (RPM): | 3000 rpm |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Material: | Cast Iron |
| Retainer Type: | Ball Riding Retainer | Locking Type: | Setscrew |
| Housing Type: | Pillow Block, Two Bolt | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Standard Duty | Ability to Relubricate: | Yes |
| Insert Number: | VS-232S | Maximum Operating Temperature (F): | 200 °F |
| UPC: | 662290000000 | Weight: | 6.24 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
