- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VPLE-236

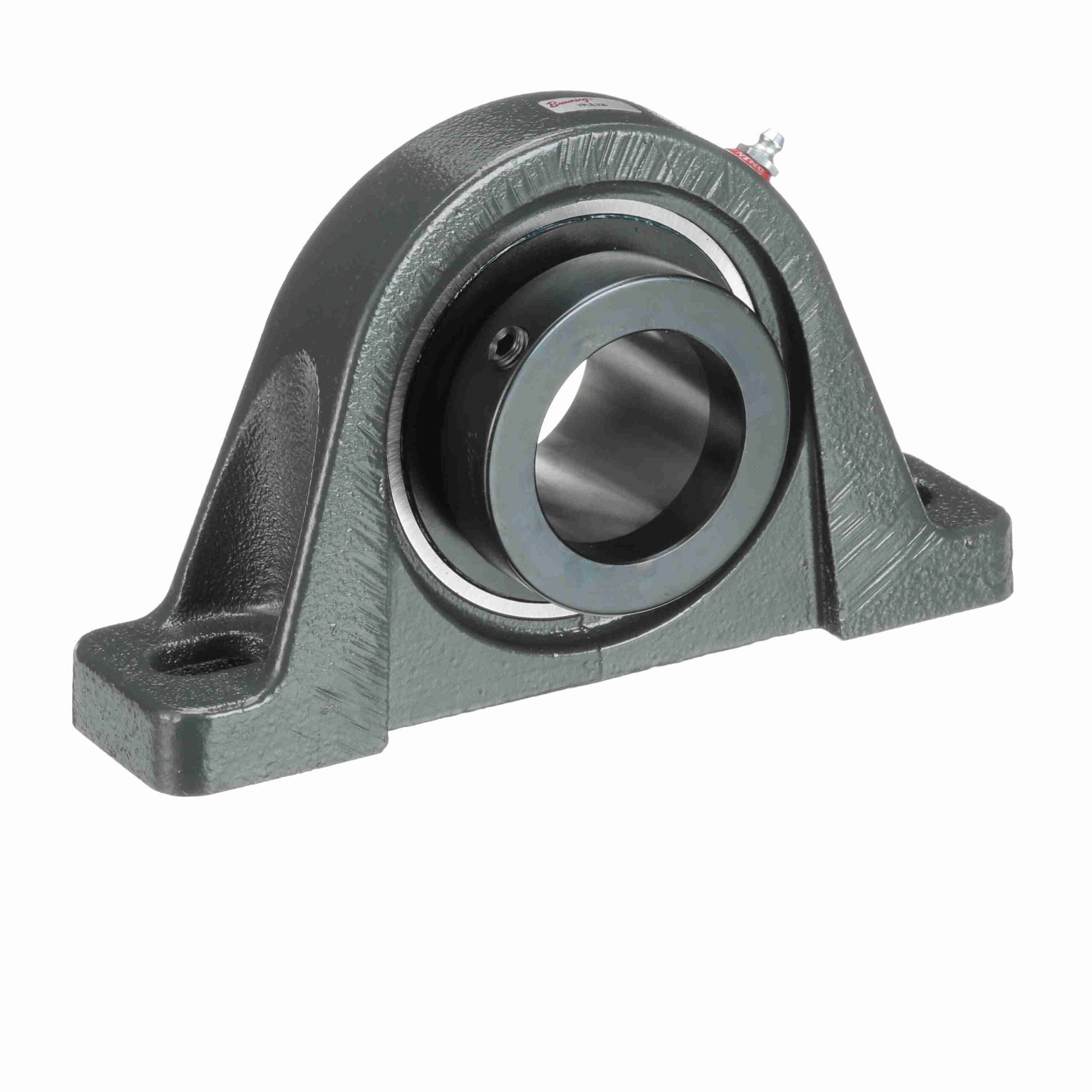

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VPLE-236
$370.67
Out of stock
Out of stock
| Measure Units: | Inch | Housing Base: | Semi-Solid |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal with Flinger |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Internal Clearance: | Standard |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 11, 789 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Retainer Material: | Molded fiber glass reinforced nylon | Misalignment Type: | Static Only |
| End Cap: | No | Radial Static Load Capacity (lb): | 8, 150 lb |
| Locking Type: | Eccentric | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Fixed vs. Expansion: | Fixed | Duty/Series: | Standard Duty |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Retainer Type: | Ball Riding Retainer |
| Housing Style: | Pillow Block | Maximum Speed (RPM): | 2500 rpm |
| Housing Material: | Cast Iron | Insert Number: | VE-236 |
| Maximum Operating Temperature (F): | 200 °F | Ability to Relubricate: | Yes |
| UPC: | 662290000000 | Weight: | 11.25 LB |
| Packaged Length: | 9.68 Inches | Packaged Width: | 5.69 Inches |
| Packaged Height: | 3.19 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
