- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-218

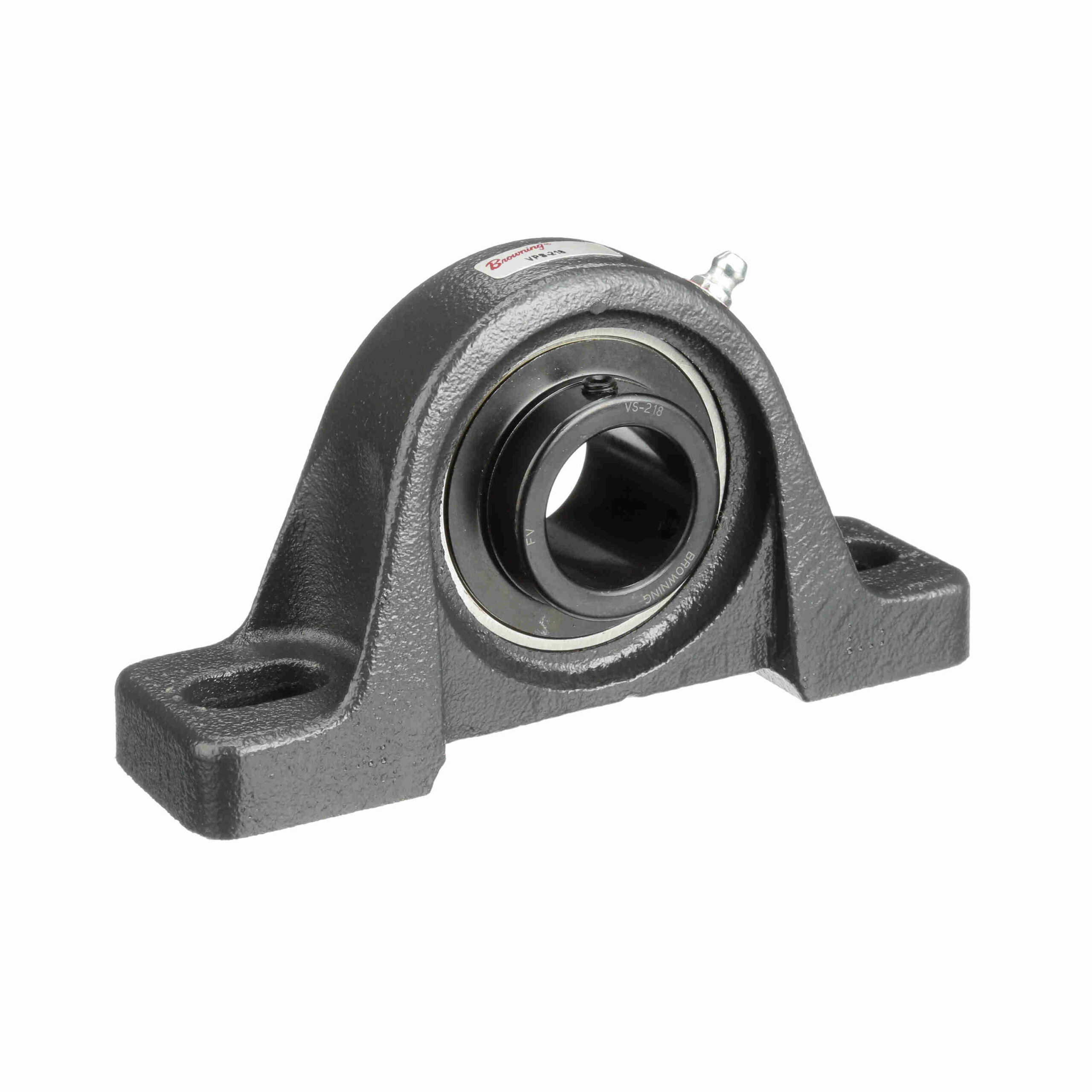

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-218
$100.61
Availability: 2 in stock
Availability: 2 in stock
| Measure Units: | Inch | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Maximum Operating Temperature: | 200 °F |
| Housing Base: | Semi-Solid | Housing Type: | Pillow Block; Two Bolt |
| Housing Material: | Cast Iron | Expansion: | No |
| Speed (Max): | 4500 | Internal Clearance: | Standard |
| Insert No.: | VS-218 | Retainer Type: | Ball Riding Retainer |
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Relubricatable: | Yes | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | End Cap: | No |
| Retainer Material: | Molded fiber glass reinforced nylon | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289525454 |
| Weight: | 2.76 LB | Packaged Length: | 4.6 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
