- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VPS-131

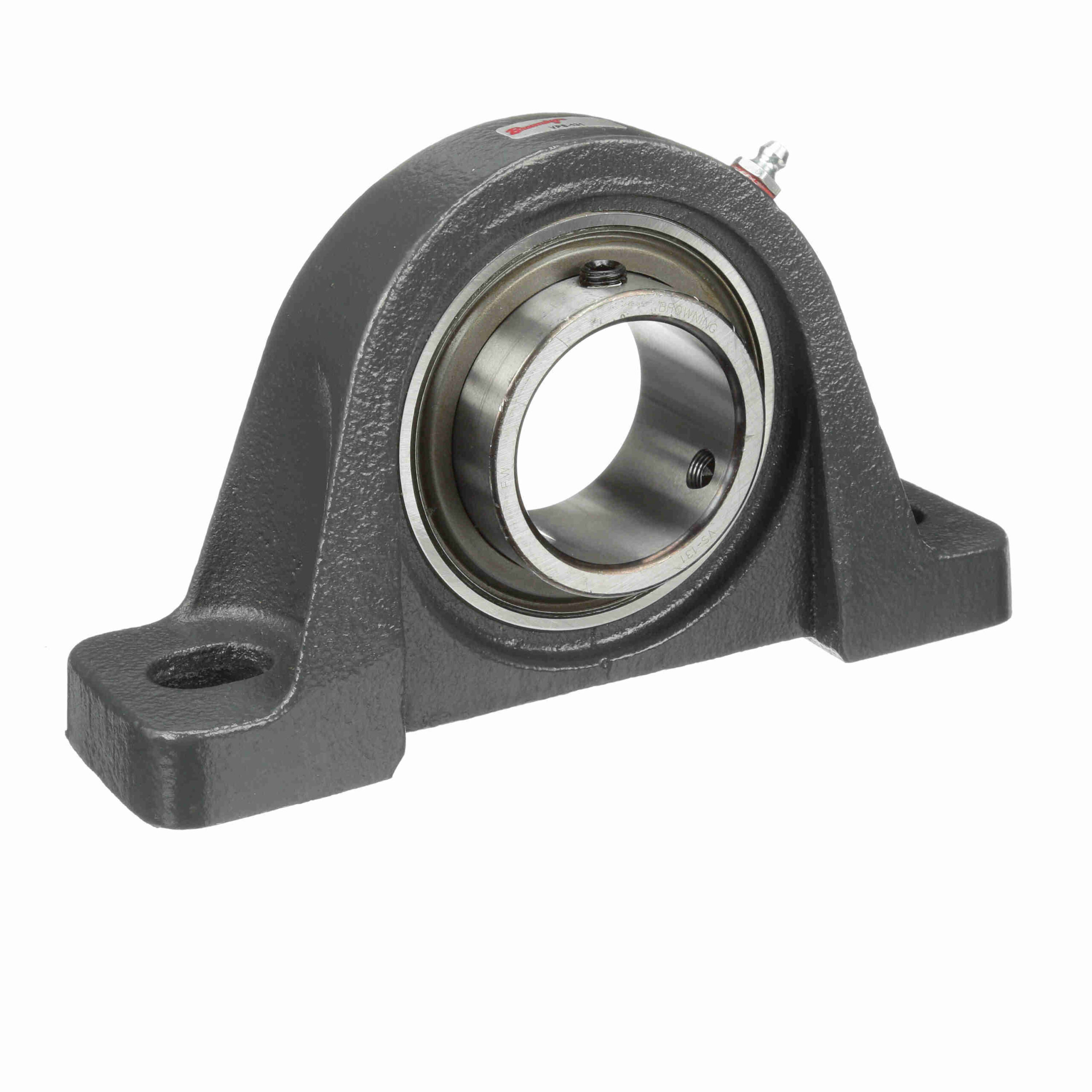

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VPS-131
$138.33
Availability: 3 in stock
Availability: 3 in stock
| Housing Base: | Semi-Solid | Expansion: | No |
|---|---|---|---|
| Retainer Type: | Ball Riding Retainer | Measure Units: | Inch |
| Internal Clearance: | Standard | Insert Material: | 52100 Bearing Steel |
| Maximum Operating Temperature: | 200 °F | Seal Type: | Single Lip Contact Seal |
| Insert No.: | VS-131 | Housing Type: | Pillow Block; Two Bolt |
| Duty Series: | Intermediate Duty | Housing Material: | Cast Iron |
| Rolling Element: | Ball Bearing | Speed (Max): | 2000 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 889 |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Misalignment: | ±1.5° Misalignment - Static Only | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Uncoated | Housing Color: | Gray |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Radial Static Load Capacity (lb): | 5, 216 | UPC: | 662289319015 |
| Weight: | 6.06 LB | Packaged Length: | 10.2 Inches |
| Packaged Width: | 5.5 Inches | Packaged Height: | 3.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
