- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPLS-228

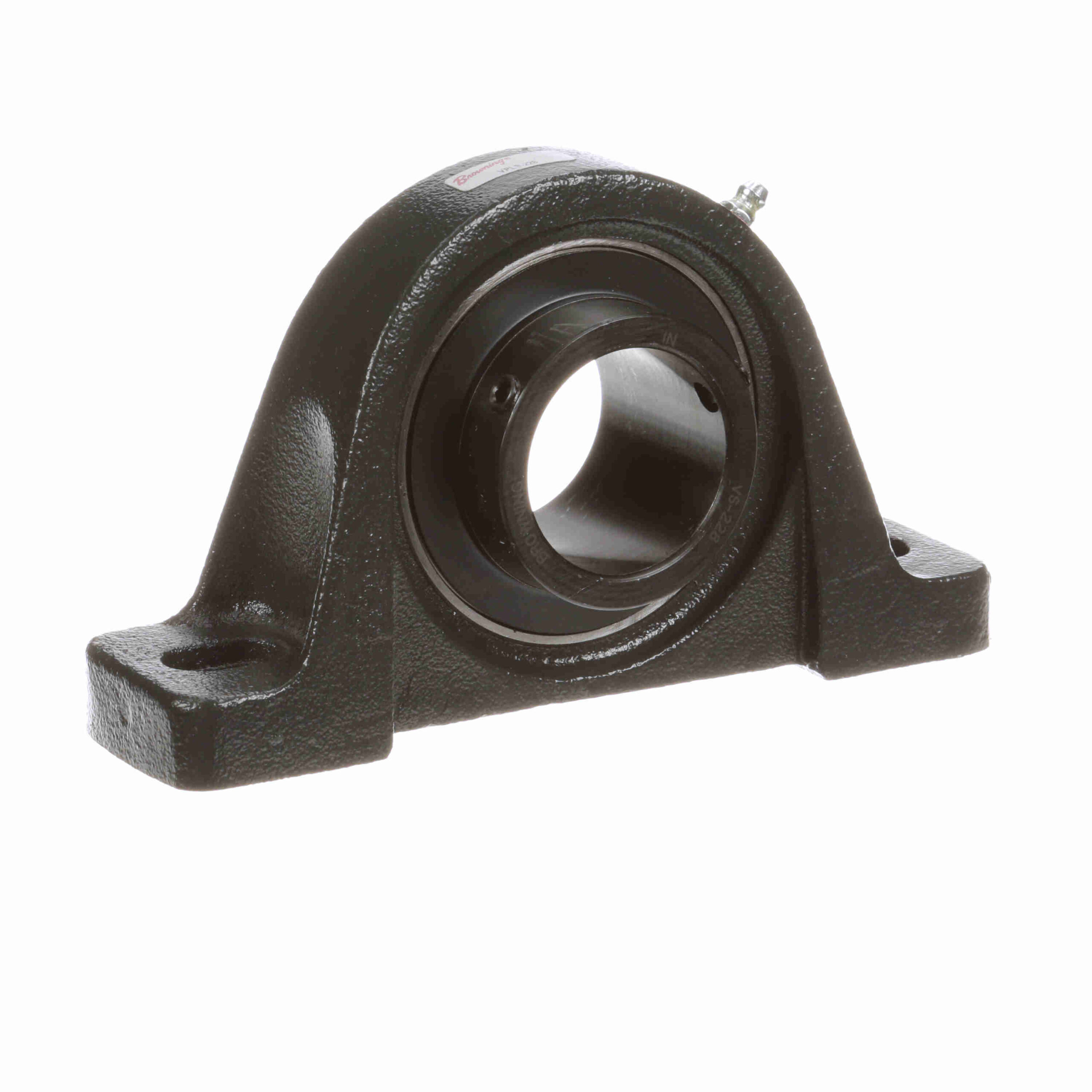

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPLS-228
$215.58
Out of stock
Out of stock
| Housing Base: | Semi-Solid | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal with Flinger | Rolling Element: | Ball Bearing |
| Internal Clearance: | Standard | Measure Units: | Inch |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 901 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| End Cap: | No | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Retainer Material: | Molded fiber glass reinforced nylon | Radial Static Load Capacity (lb): | 5, 139 lb |
| Housing Style: | Pillow Block | Maximum Speed (RPM): | 3000 rpm |
| Fixed vs. Expansion: | Fixed | Duty/Series: | Standard Duty |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Retainer Type: | Ball Riding Retainer |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Maximum Operating Temperature (F): | 200 °F |
| Ability to Relubricate: | Yes | Insert Number: | VS-228 |
| UPC: | 662290000000 | Weight: | 4.94 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
