- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
MFC-310C

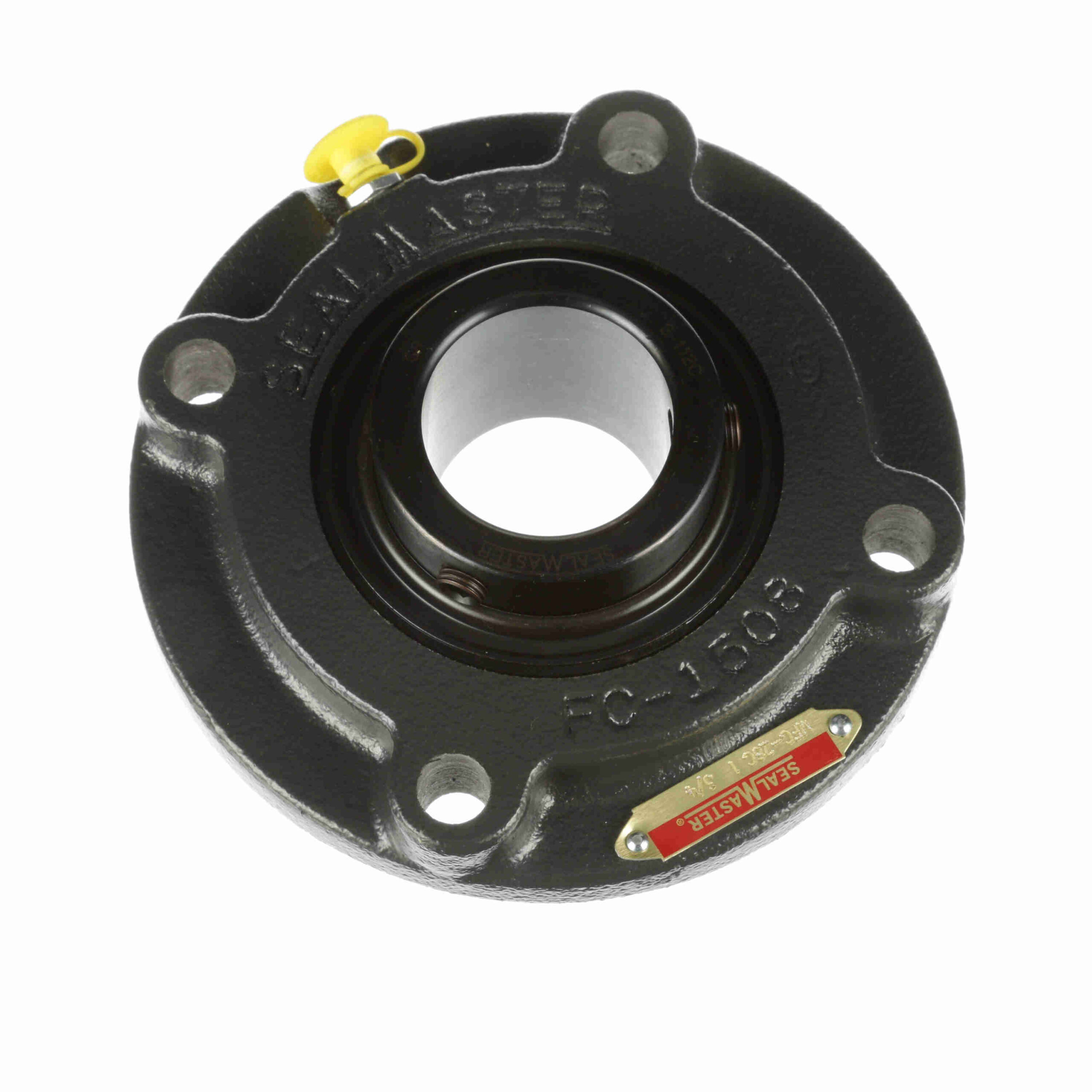

Sealmaster Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – MFC-310C
Out of stock
| Housing Base: | Solid | Bore Shape: | Straight |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Measure Units: | Metric |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Rolling Element: | Ball Bearing |
| Pilot Configuration: | No Pilot | Internal Clearance: | Standard |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| Housing Color: | Gray | Housing Material: | Cast Iron |
| Housing Style: | Flange Block | Maximum Speed (RPM): | 3250 rpm |
| Fixed vs. Expansion: | Fixed | Duty/Series: | Medium Duty |
| Housing Type: | Flange, Piloted | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Retainer Type: | Land Riding Retainer | Locking Type: | Setscrew |
| Insert Number: | 5310C | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 220 °F | Inner Race Heat Treat Method: | Zone-Hardened |
| UPC: | 662461056240 | Weight: | 7.50 LB |
| Packaged Length: | 6.75 Inches | Packaged Width: | 6.5 Inches |
| Packaged Height: | 2.44 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
