- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VPLS-110

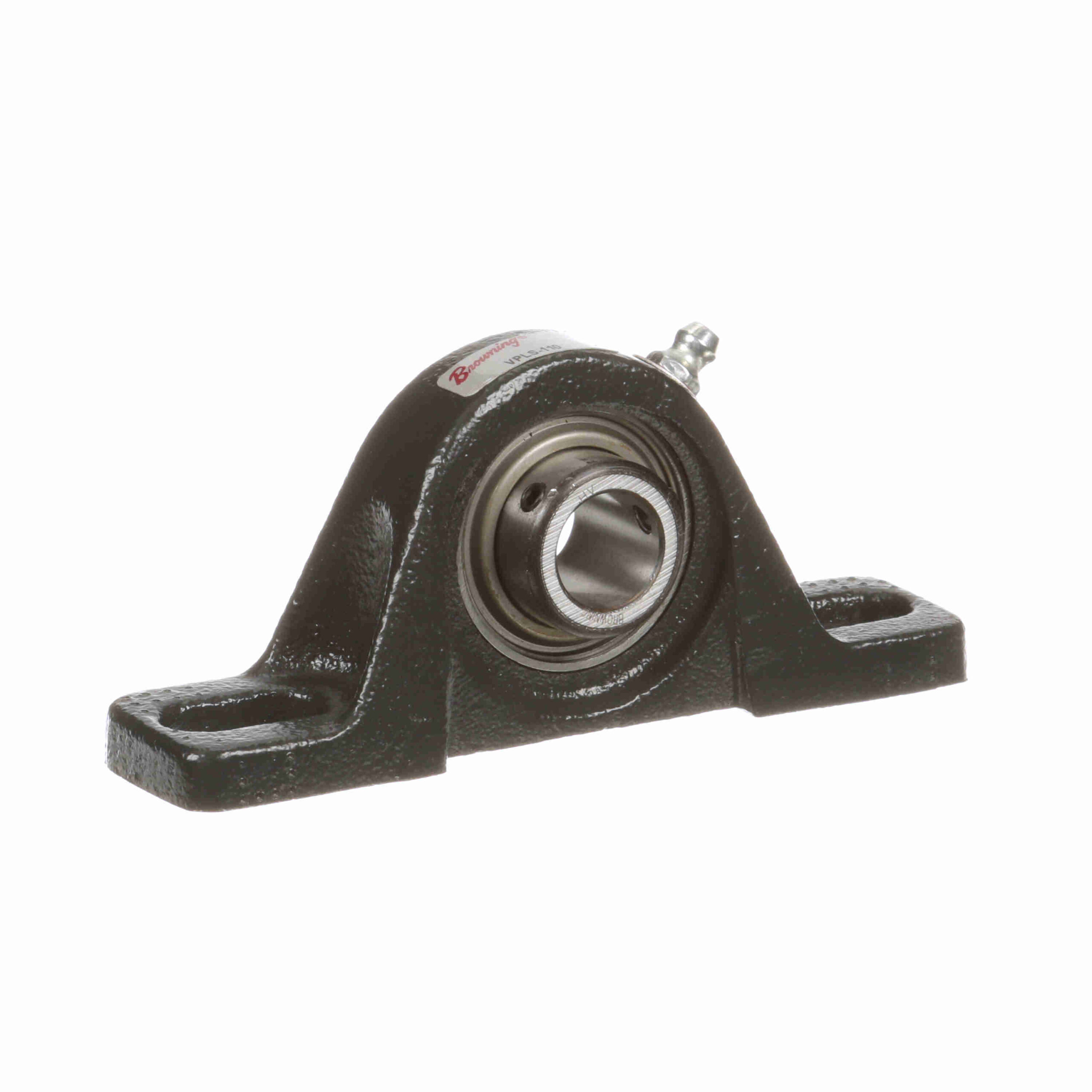

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VPLS-110
$93.69
Out of stock
Out of stock
| Housing Type: | Pillow Block, Two Bolt, Low Base | Retainer Type: | Ball Riding Retainer |
|---|---|---|---|
| Housing Material: | Cast Iron | Seal Type: | Single Lip Contact Seal |
| Insert No.: | VS-110 | Speed (Max): | 7500 |
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel |
| Internal Clearance: | Standard | Duty Series: | Intermediate Duty |
| Measure Units: | Inch | Maximum Operating Temperature: | 200 °F |
| Housing Base: | Semi-Solid | Expansion: | No |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 108 |
| Housing Construction: | One Piece | Relubricatable: | Yes |
| Locking Type: | Setscrew | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment Type: | Static Only |
| End Cap: | No | Bearing Insert Coating: | Uncoated |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 1, 117 | UPC: | 662289524532 |
| Weight: | 1.38 LB | Packaged Length: | 3.3 Inches |
| Packaged Width: | 5.5 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
