- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VPLE-239

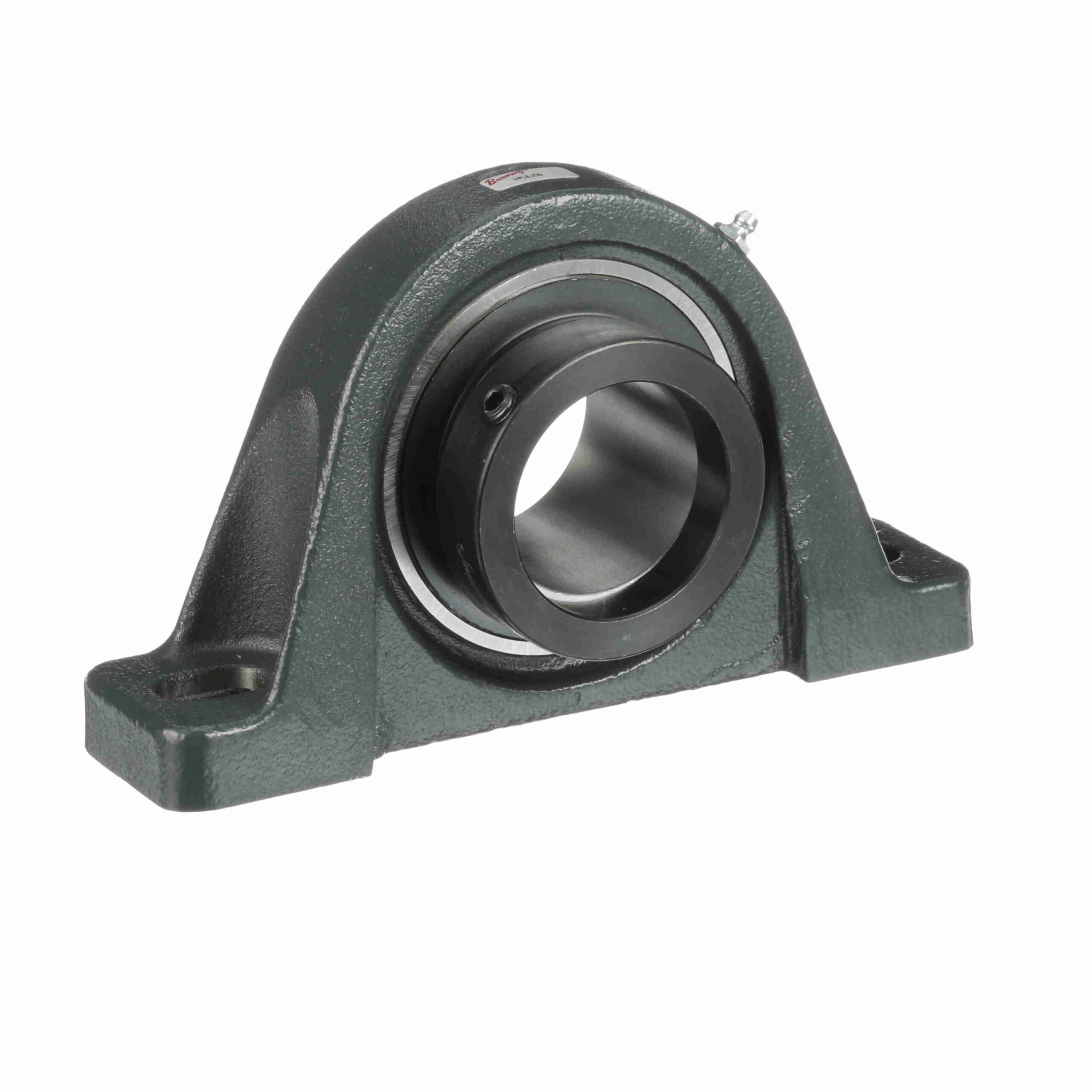

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VPLE-239
$218.40
Availability: 4 in stock
Availability: 4 in stock
| Measure Units: | Inch | Maximum Operating Temperature: | 200 °F |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Retainer Type: | Ball Riding Retainer |
| Housing Material: | Cast Iron | Internal Clearance: | Standard |
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Type: | Pillow Block; Two Bolt; Low Base |
| Speed (Max): | 2500 | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Duty Series: | Standard Duty | Insert No.: | VE-239 |
| Expansion: | No | Housing Base: | Semi-Solid |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 11, 789 |
| Housing Construction: | One Piece | Locking Type: | Eccentric |
| Misalignment: | ±1.5° Misalignment - Static Only | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Color: | Gray |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | End Cap: | No |
| Radial Static Load Capacity (lb): | 8, 150 | UPC: | 662289524488 |
| Weight: | 11.14 LB | Packaged Length: | 9.68 Inches |
| Packaged Width: | 5.69 Inches | Packaged Height: | 3.19 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
