- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPLE-135

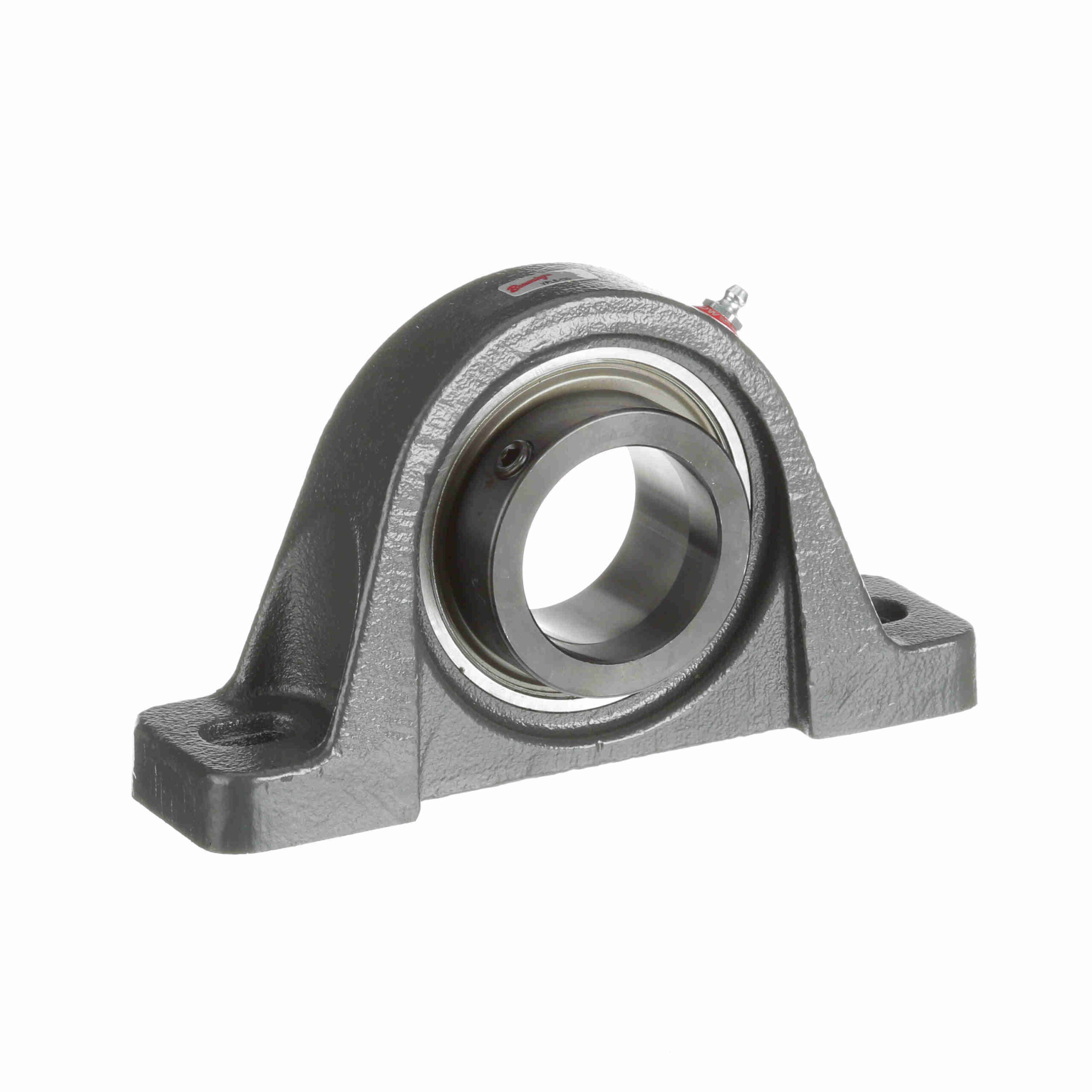

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPLE-135
$210.23
Out of stock
Out of stock
| Housing Material: | Cast Iron | Housing Type: | Pillow Block; Two Bolt; Low Base |
|---|---|---|---|
| Maximum Operating Temperature: | 200 °F | Retainer Type: | Ball Riding Retainer |
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Housing Base: | Semi-Solid | Speed (Max): | 1750 |
| Expansion: | No | Insert Material: | 52100 Bearing Steel |
| Internal Clearance: | Standard | Duty Series: | Intermediate Duty |
| Insert No.: | VE-135 | Seal Type: | Single Lip Contact Seal |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Locking Type: | Eccentric | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Misalignment: | ±1.5° Misalignment - Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| End Cap: | No | Housing Color: | Gray |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Uncoated |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 6, 601 | UPC: | 662289318360 |
| Weight: | 8.16 LB | Packaged Length: | 5.7 Inches |
| Packaged Width: | 10.3 Inches | Packaged Height: | 3.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
