- Powder coat epoxy malleable iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPE-116M

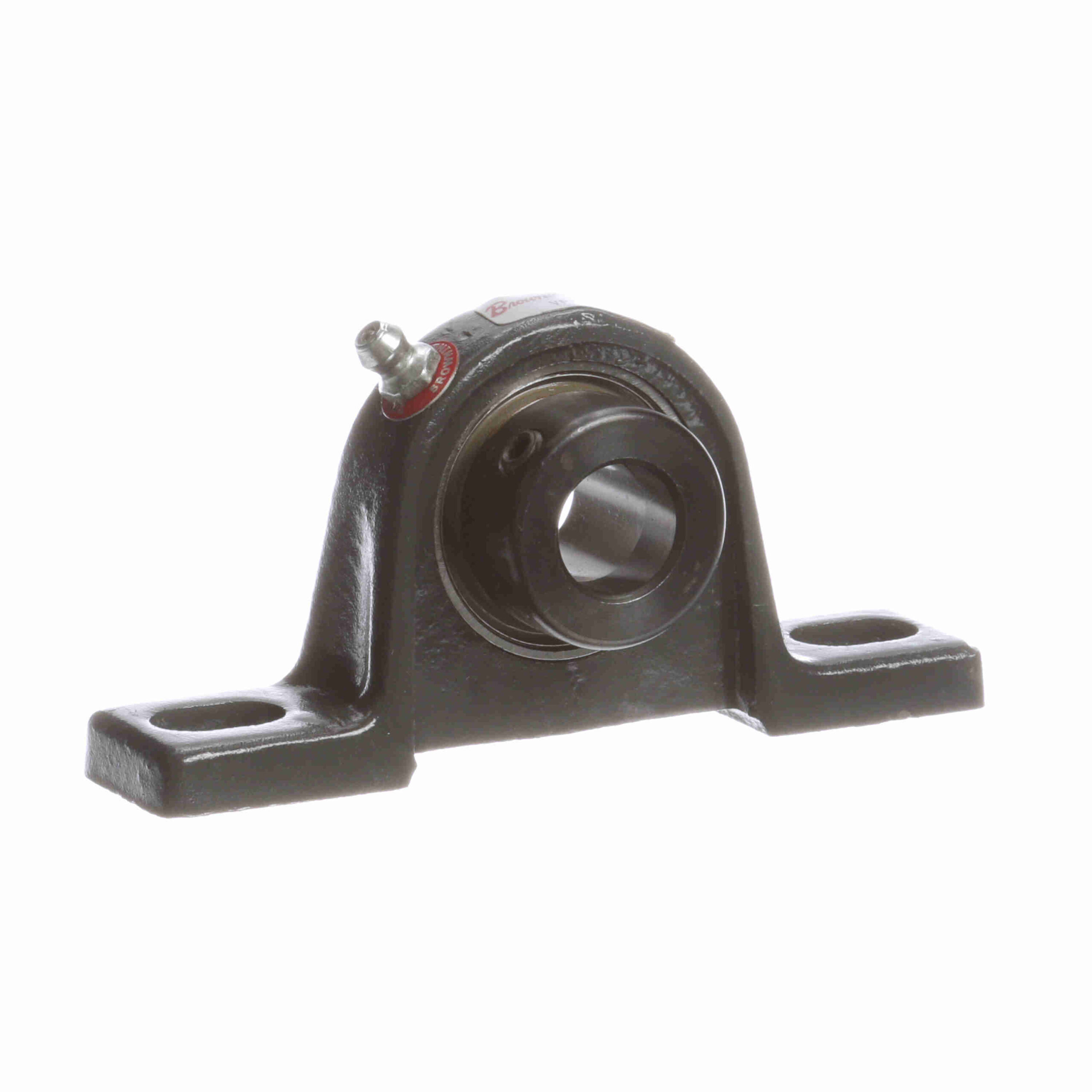

Browning Mounted Ductile Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPE-116M
$83.07
Out of stock
Out of stock
| Expansion: | No | Housing Material: | Ductile Iron |
|---|---|---|---|
| Speed (Max): | 3500 | Internal Clearance: | Standard |
| Insert Material: | 52100 Bearing Steel | Housing Type: | Pillow Block; Two Bolt |
| Duty Series: | Intermediate Duty | Rolling Element: | Ball Bearing |
| Retainer Type: | Ball Riding Retainer | Insert No.: | VE-116 |
| Measure Units: | Inch | Housing Base: | Semi-Solid |
| Seal Type: | Single Lip Contact Seal | Maximum Operating Temperature: | 200 °F |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Locking Type: | Eccentric | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| End Cap: | No | Replaceable Insert: | Yes |
| Housing Color: | Gray | Bearing Insert Coating: | Uncoated |
| Radial Static Load Capacity (lb): | 1, 651 | UPC: | 662289077557 |
| Weight: | 1.28 LB | Packaged Length: | 3.19 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.25 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
