- Powder coat epoxy cast iron housing
- BOA Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
VFCB-219

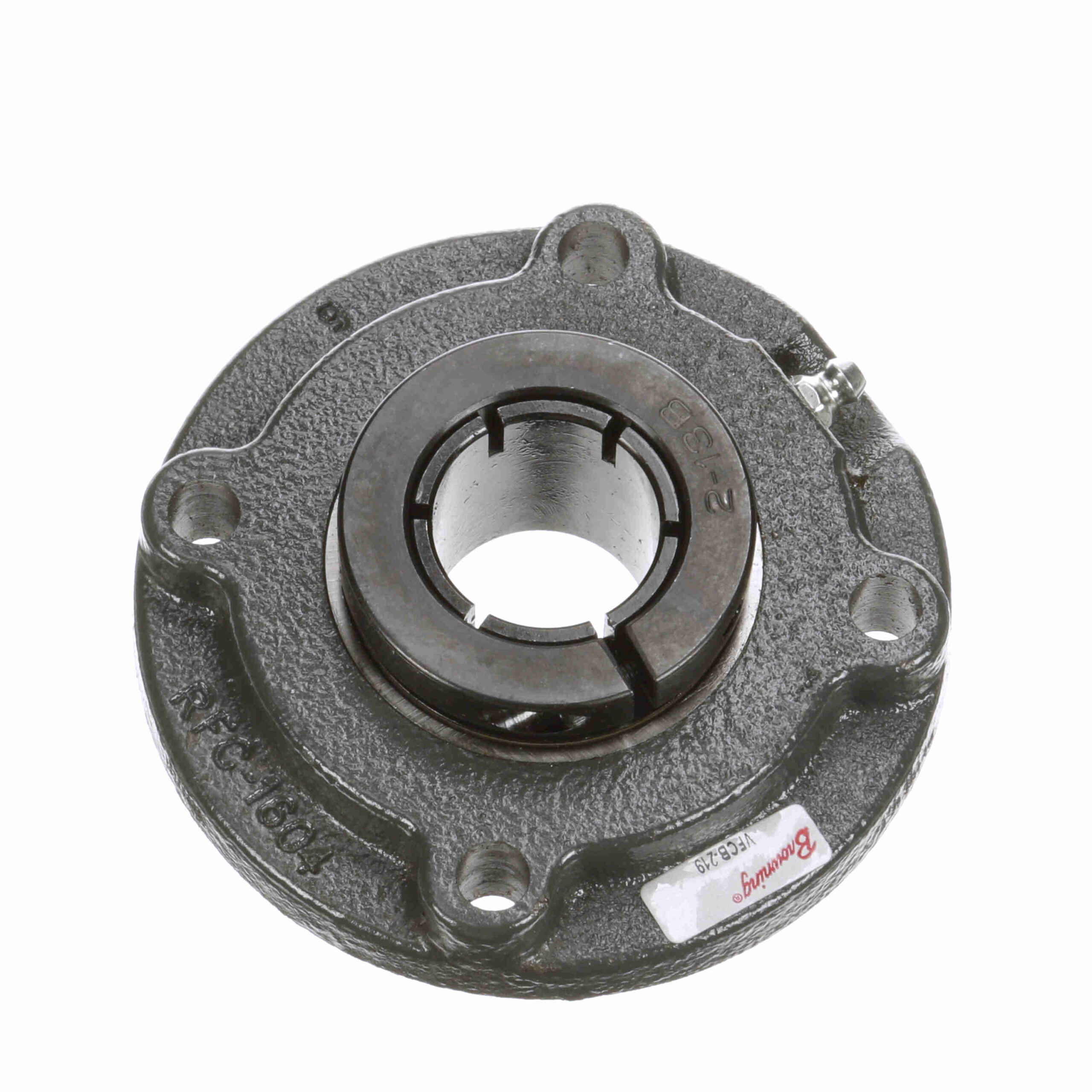

Browning Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Concentric Lock – VFCB-219
$219.78
Out of stock
Out of stock
| Maximum Operating Temperature: | 200 °F | Insert No.: | VB-219 SFB ATO |
|---|---|---|---|
| Duty Series: | Standard Duty | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Base: | Semi-Solid | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Housing Type: | Flange; Piloted | Bore Shape: | Straight |
| Expansion: | No | Retainer Type: | Ball Riding Retainer |
| Housing Material: | Cast Iron | Measure Units: | Inch |
| Rolling Element: | Ball Bearing | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Locking Type: | Concentric | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Internal Clearance: | Standard | Speed (Max): | 4500 |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Retainer Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | End Cap: | No |
| Replaceable Insert: | Yes | Radial Static Load Capacity (lb): | 2, 567 |
| UPC: | 662460346915 | Weight: | 2.60 LB |
| Packaged Length: | 4.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 4.56 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
