- Powder coat epoxy malleable iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VPE-108M

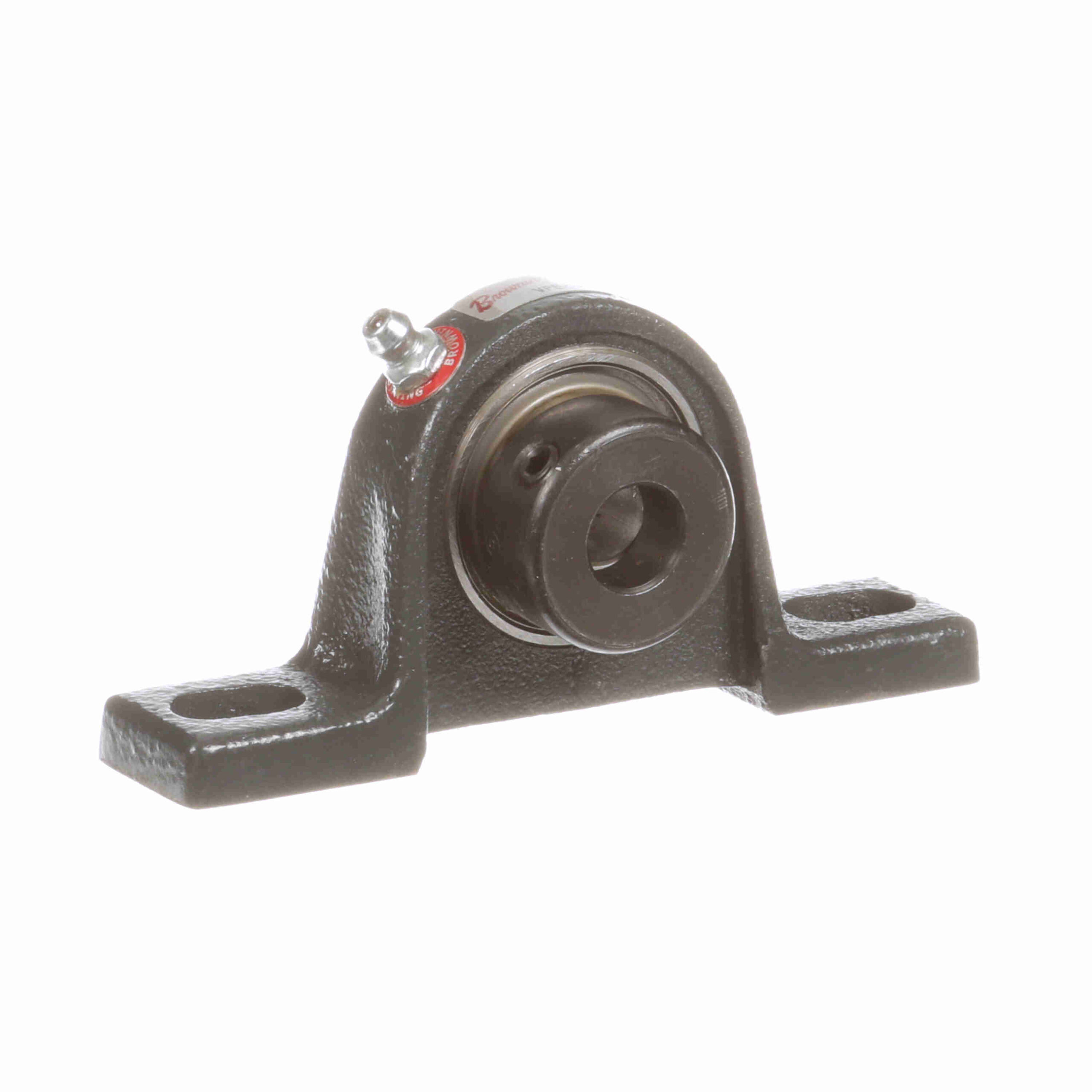

Browning Mounted Ductile Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VPE-108M
$259.39
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal | Expansion: | No |
|---|---|---|---|
| Maximum Operating Temperature: | 200 °F | Rolling Element: | Ball Bearing |
| Housing Material: | Ductile Iron | Internal Clearance: | Standard |
| Housing Type: | Pillow Block, Two Bolt | Retainer Type: | Ball Riding Retainer |
| Insert No.: | VE-108 | Measure Units: | Inch |
| Speed (Max): | 5000 | Housing Base: | Semi-Solid |
| Duty Series: | Intermediate Duty | Insert Material: | 52100 Bearing Steel |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 108 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Eccentric |
| Misalignment: | ±1.5° Misalignment - Static Only | Housing Construction: | One Piece |
| Relubricatable: | Yes | Misalignment Type: | Static Only |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Uncoated |
| Radial Static Load Capacity (lb): | 1, 117 | UPC: | 662289075379 |
| Weight: | 0.81 LB | Packaged Length: | 5.6 Inches |
| Packaged Width: | 3.3 Inches | Packaged Height: | 1.7 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
