- Powder coat epoxy cast iron housing
- BOA Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
VFCB-327

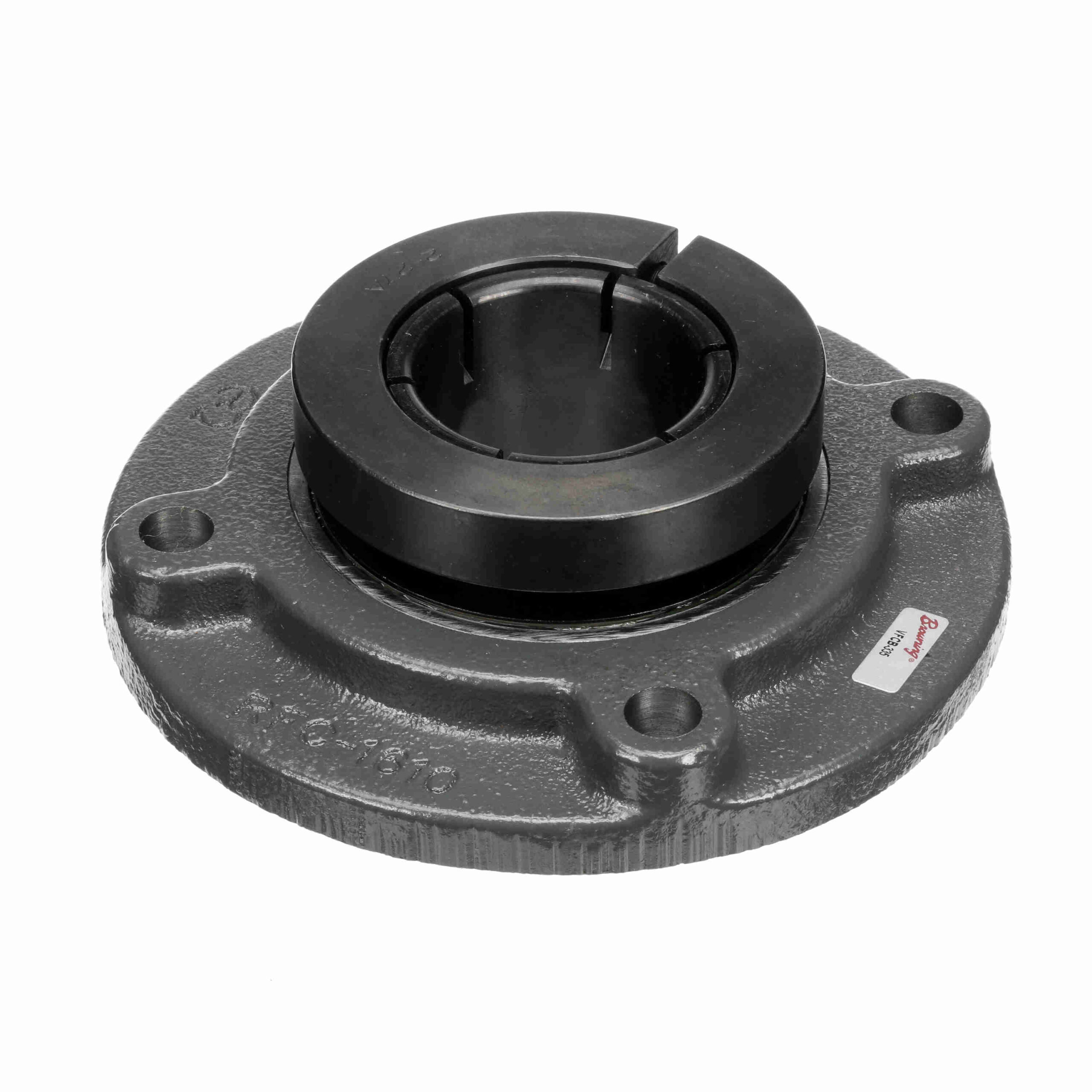

Browning Mounted Cast Iron Flange Cartridge Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Concentric Lock – VFCB-327
$367.35
Out of stock
Out of stock
| Retainer Type: | Ball Riding Retainer | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Duty Series: | Medium Duty | Expansion: | No |
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 200 °F |
| Insert No.: | VB-327 SFB | Rolling Element: | Ball Bearing |
| Measure Units: | Inch | Housing Type: | Flange, Piloted |
| Housing Base: | Semi-Solid | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Bore Shape: | Straight | Pilot Configuration: | No Pilot |
| Relubricatable: | Yes | Speed (Max): | 3000 |
| Housing Construction: | One Piece | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 7, 889 |
| Internal Clearance: | Standard | Locking Type: | Concentric |
| Replaceable Insert: | Yes | End Cap: | No |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Radial Static Load Capacity (lb): | 5, 216 |
| UPC: | 662460347103 | Weight: | 5.92 LB |
| Packaged Length: | 6.75 Inches | Packaged Width: | 6.5 Inches |
| Packaged Height: | 2.44 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
