- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VFBS-231

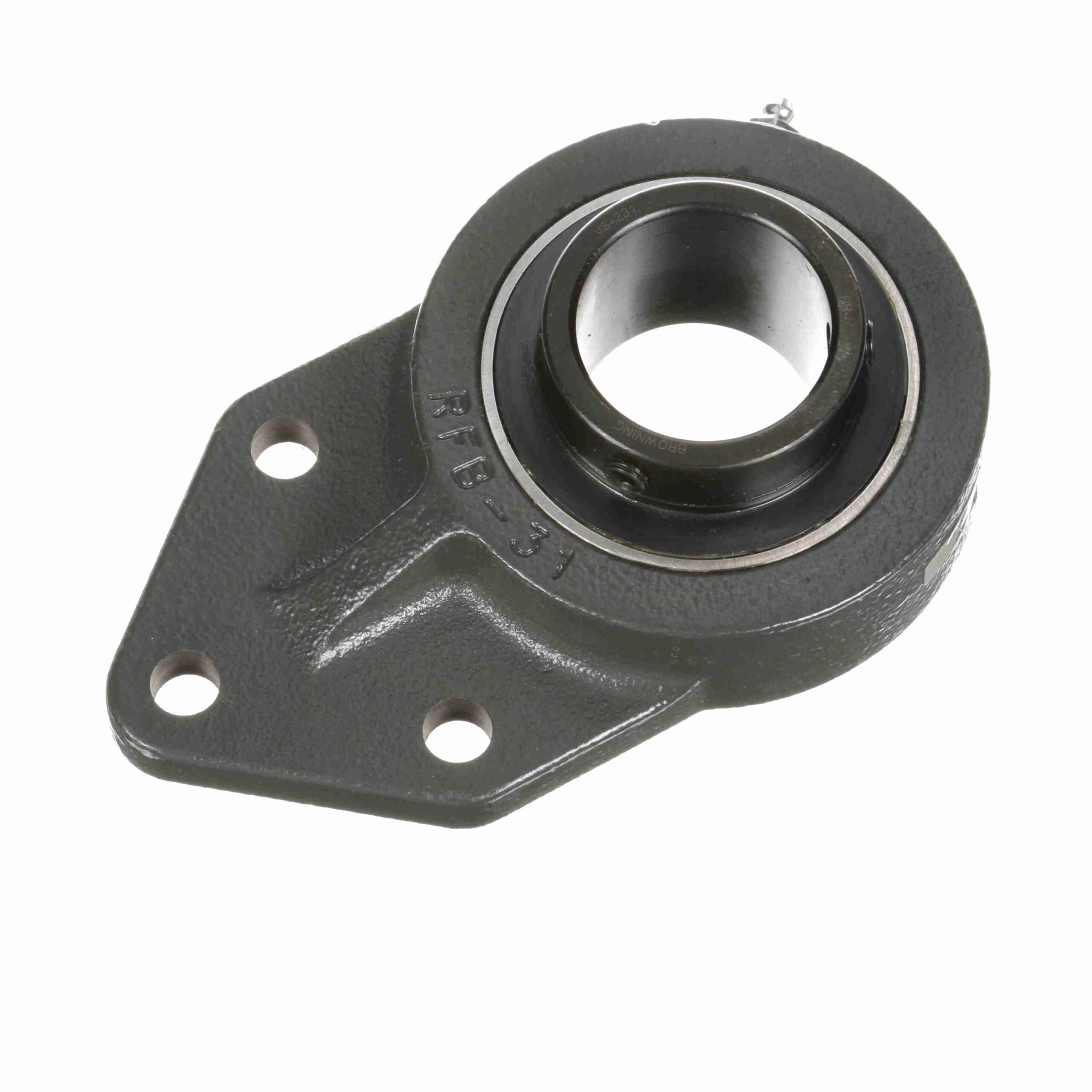

Browning Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VFBS-231
Out of stock
| Housing Base: | Solid | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Bore Shape: | Straight |
| Seal Type: | Single Lip Contact Seal with Flinger | Measure Units: | Inch |
| Pilot Configuration: | No Pilot | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 7, 889 lb | Outer Ring Land Profile: | Standard |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | End Cap: | No |
| Retainer Material: | Molded fiber glass reinforced nylon | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 5, 216 lb | Fixed vs. Expansion: | Fixed |
| Housing Material: | Cast Iron | Maximum Speed (RPM): | 3000 rpm |
| Duty/Series: | Standard Duty | Housing Style: | Flange Block |
| Housing Type: | Flange, Bracket, Three Bolt | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Retainer Type: | Ball Riding Retainer | Locking Type: | Setscrew |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 200 °F |
| Insert Number: | VS-231 | UPC: | 662460495880 |
| Weight: | 2.60 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
