- Powder coat epoxy cast iron housing
- BOA Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
VFBB-216

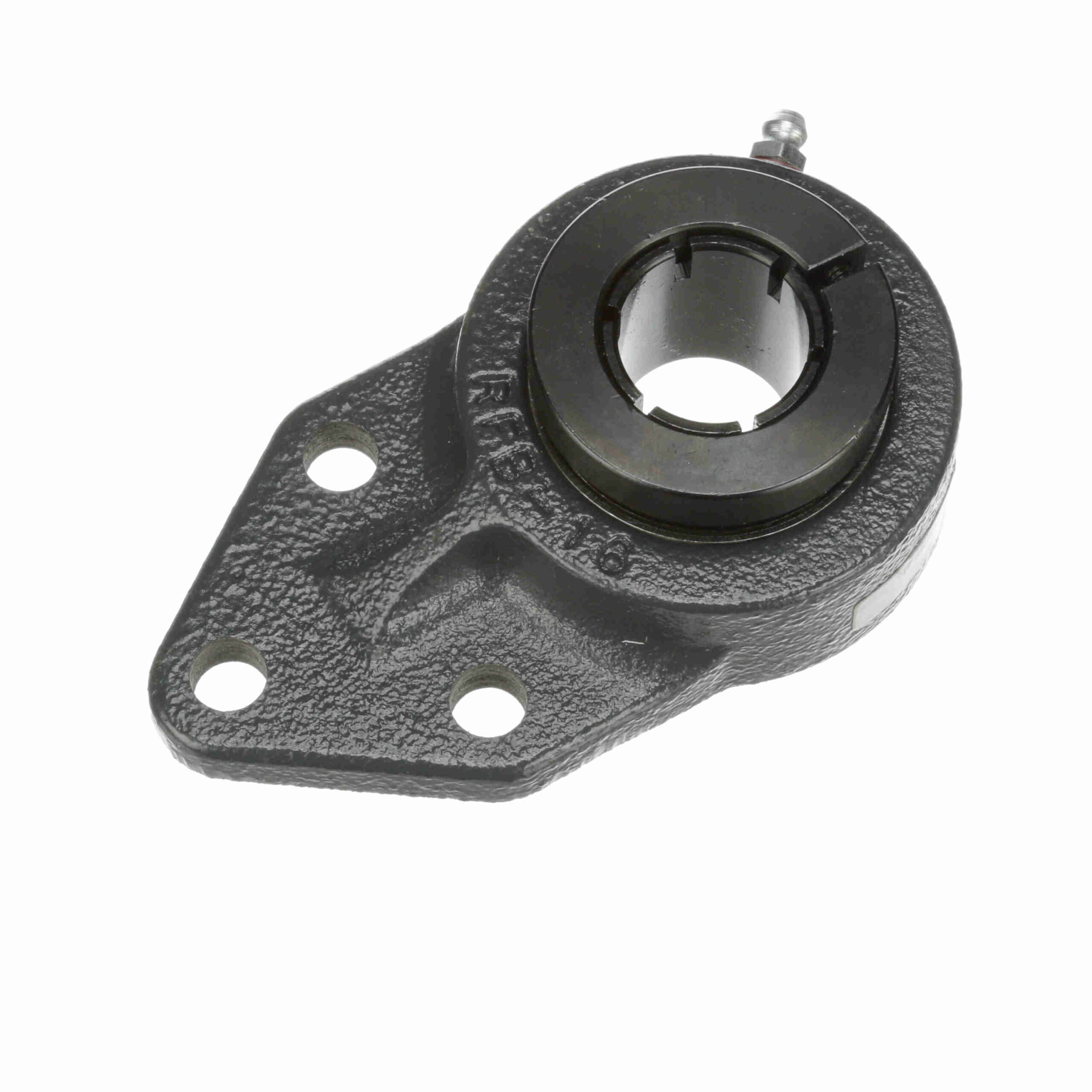

Browning Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Concentric Lock – VFBB-216
Out of stock
| Bore Shape: | Straight | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal with Flinger | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Pilot Configuration: | No Pilot | Radial Dynamic Load Capacity (lb): | 2, 801 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Internal Clearance: | Standard | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | End Cap: | No |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Retainer Material: | Molded fiber glass reinforced nylon |
| Radial Static Load Capacity (lb): | 1, 651 lb | Maximum Speed (RPM): | 5500 rpm |
| Duty/Series: | Standard Duty | Housing Material: | Cast Iron |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Retainer Type: | Ball Riding Retainer |
| Fixed vs. Expansion: | Fixed | Locking Type: | Concentric |
| Housing Type: | Flange, Bracket, Three Bolt | Housing Style: | Flange Block |
| Maximum Operating Temperature (F): | 200 °F | Ability to Relubricate: | Yes |
| Insert Number: | VB-216 | UPC: | 662460495941 |
| Weight: | 1.69 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 5.5 Inches | Packaged Height: | 1.7 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
