- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal

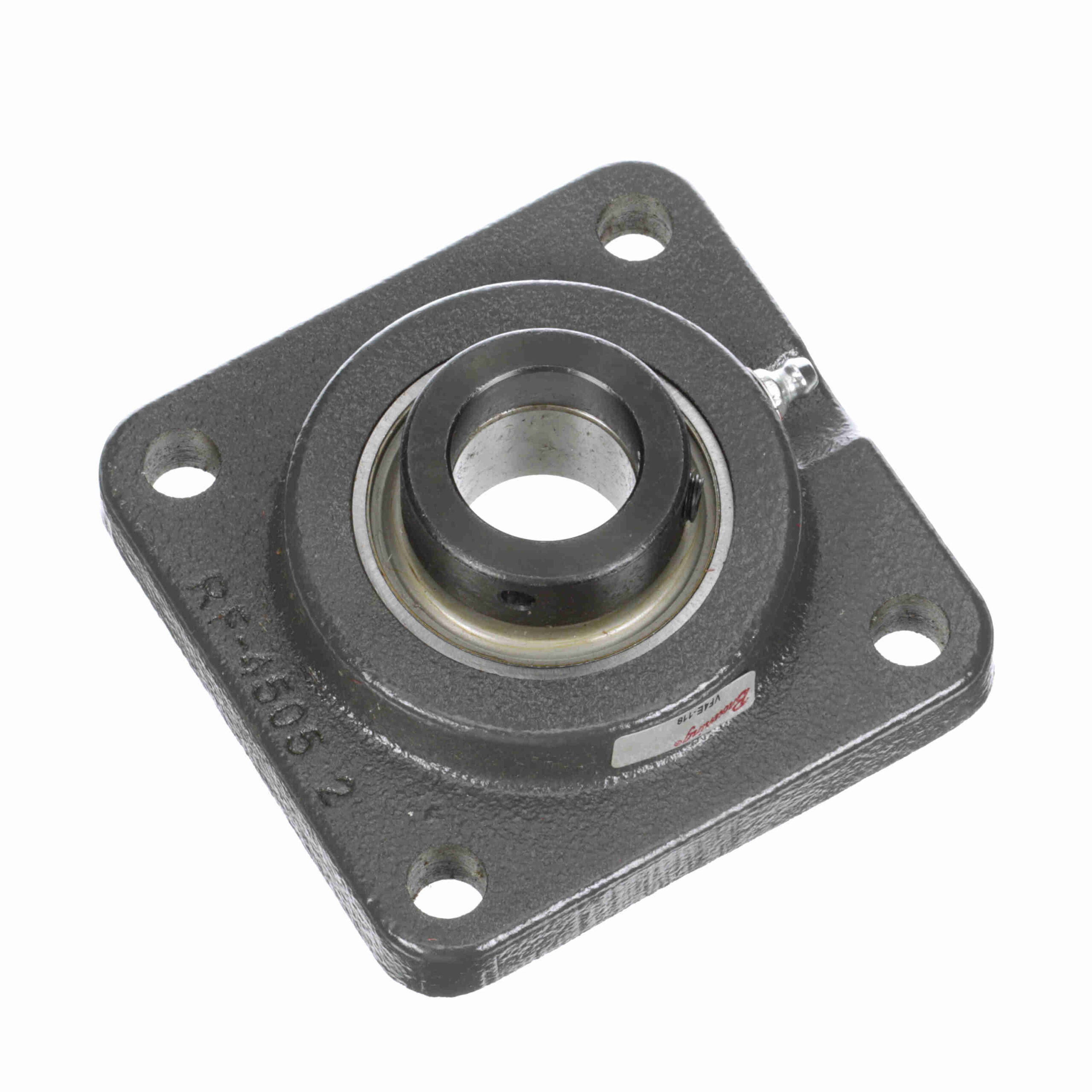

VF4E-118
Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VF4E-118
$163.15
Out of stock
Out of stock
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Type: | Flange, Four Bolt |
|---|---|---|---|
| Measure Units: | Inch | Retainer Type: | Ball Riding Retainer |
| Expansion: | No | Maximum Operating Temperature: | 200 °F |
| Housing Material: | Cast Iron | Seal Type: | Single Lip Contact Seal |
| Bore Shape: | Straight | Duty Series: | Intermediate Duty |
| Housing Base: | Semi-Solid | Insert No.: | VE-118 |
| Insert Material: | 52100 Bearing Steel | Rolling Element: | Ball Bearing |
| Radial Dynamic Load Capacity (lb): | 4, 381 | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Housing Construction: | One Piece |
| Locking Type: | Eccentric | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Speed (Max): | 3000 |
| Internal Clearance: | Standard | Housing Color: | Gray |
| End Cap: | No | Bearing Insert Coating: | Uncoated |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| T Core: | 2.875 | Radial Static Load Capacity (lb): | 2, 567 |
| UPC: | 662289531769 | Weight: | 2.84 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 2 Inches |
| Packaged Height: | 5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
