- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VF2S-232

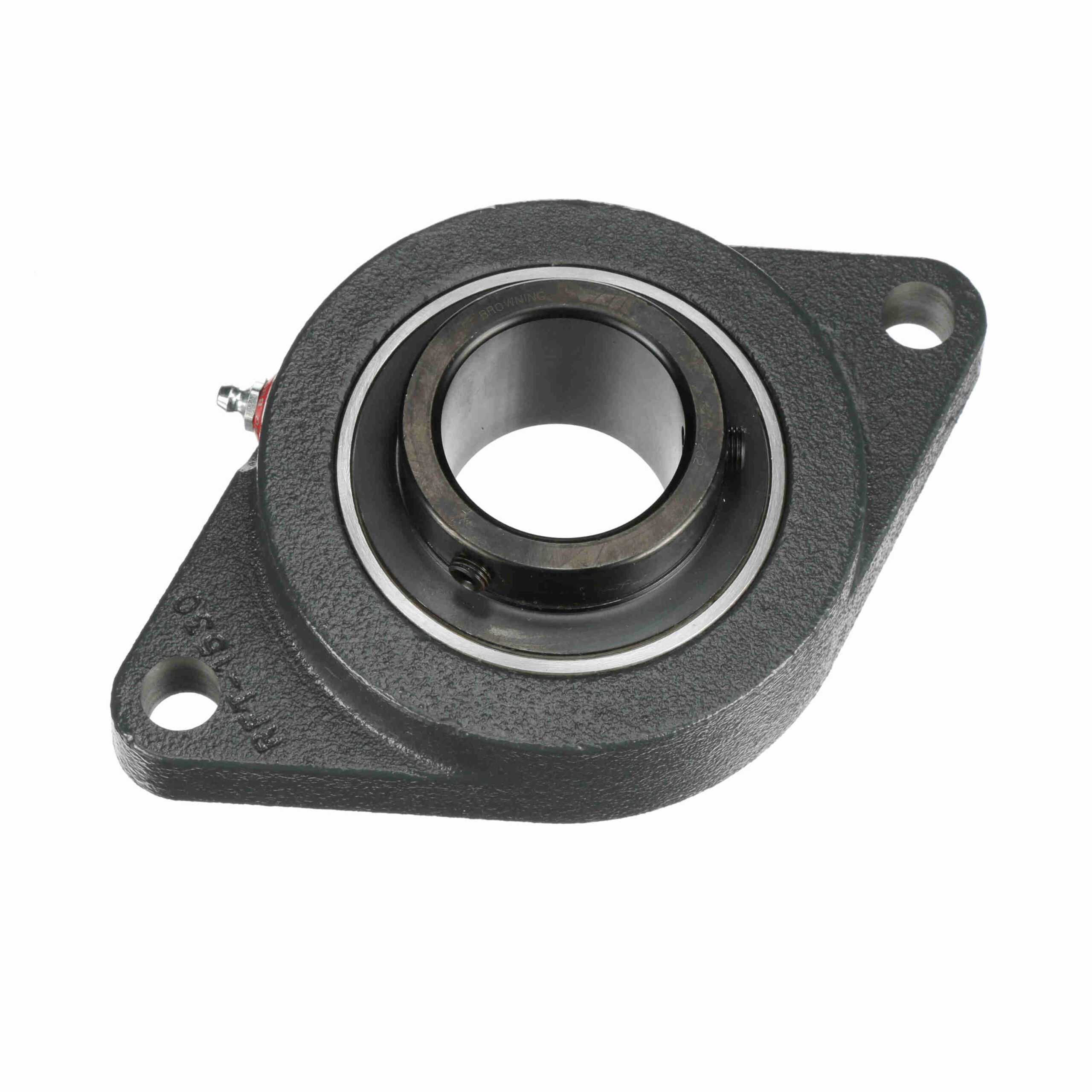

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VF2S-232
$190.94
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Base: | Semi-Solid |
| Rolling Element: | Ball Bearing | Pilot Configuration: | No Pilot |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Bore Shape: | Straight | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 9, 752 lb | End Cap: | No |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Retainer Material: | Molded fiber glass reinforced nylon | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 6, 601 lb | Housing Material: | Cast Iron |
| Housing Style: | Flange Block | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Maximum Speed (RPM): | 2500 rpm | Locking Type: | Setscrew |
| Retainer Type: | Ball Riding Retainer | Housing Type: | Flange, Two Bolt |
| Fixed vs. Expansion: | Fixed | Duty/Series: | Standard Duty |
| Insert Number: | VS-232 | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 200 °F | Ability to Relubricate: | Yes |
| UPC: | 662289521524 | Weight: | 7.50 LB |
| Packaged Length: | 6.9 Inches | Packaged Width: | 7.9 Inches |
| Packaged Height: | 2.6 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
