- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VF4S-132

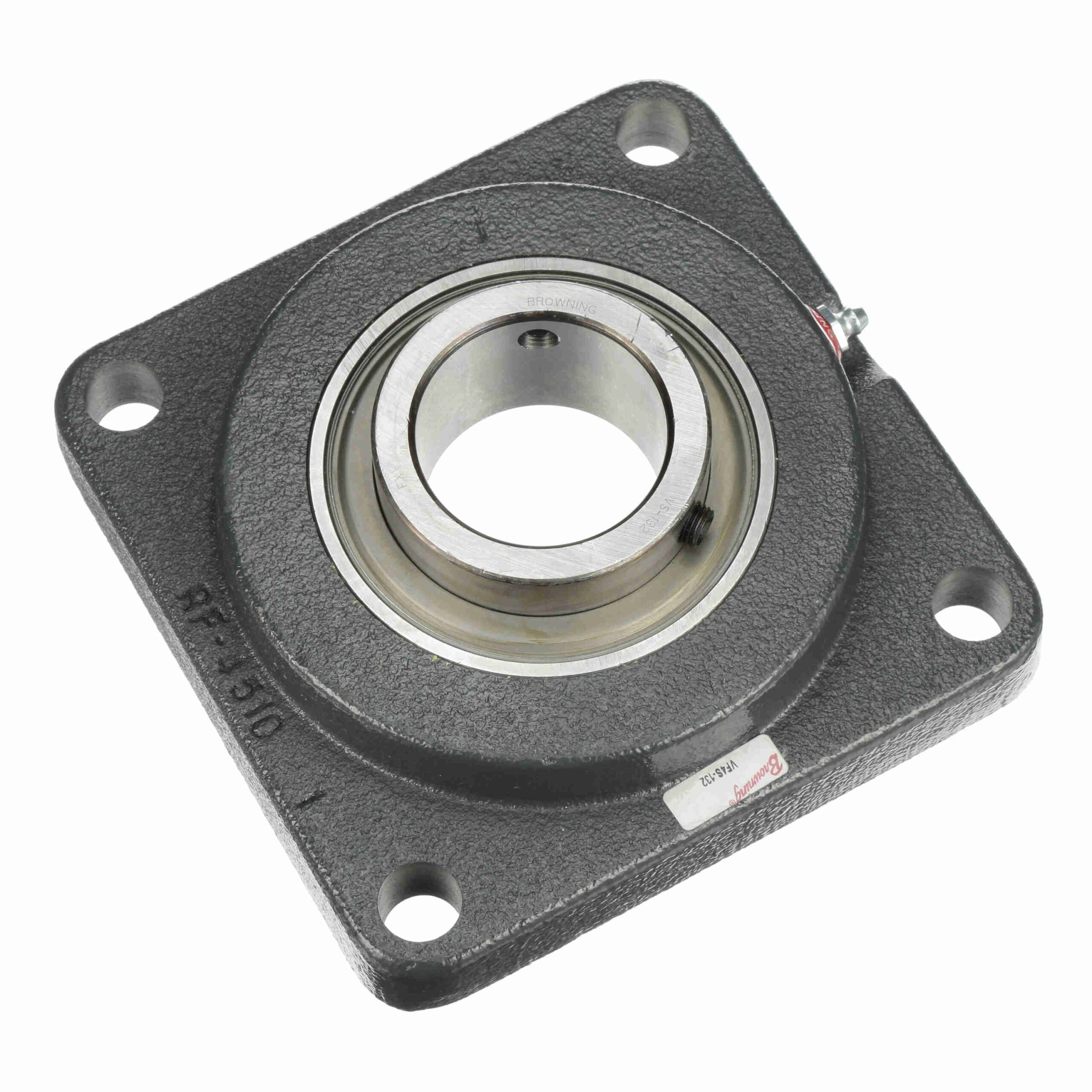

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VF4S-132
$163.68
Out of stock
Out of stock
| Duty Series: | Intermediate Duty | Insert No.: | VS-132 |
|---|---|---|---|
| Housing Base: | Semi-Solid | Bore Shape: | Straight |
| Seal Type: | Single Lip Contact Seal | Housing Type: | Flange; Four Bolt |
| Maximum Operating Temperature: | 200 °F | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Rolling Element: | Ball Bearing | Housing Material: | Cast Iron |
| Insert Material: | 52100 Bearing Steel | Retainer Type: | Ball Riding Retainer |
| Expansion: | No | Measure Units: | Inch |
| Radial Dynamic Load Capacity (lb): | 9, 752 | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Internal Clearance: | Standard |
| Locking Type: | Setscrew | Misalignment: | ±1.5° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Speed (Max): | 1750 | Housing Color: | Gray |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Uncoated |
| End Cap: | No | Retainer Material: | Molded fiber glass reinforced nylon |
| T Core: | 4.25 | Radial Static Load Capacity (lb): | 6, 601 |
| UPC: | 662289314805 | Weight: | 9.57 LB |
| Packaged Length: | 6.9 Inches | Packaged Width: | 7.9 Inches |
| Packaged Height: | 2.4 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
